Tablet E-Series 11

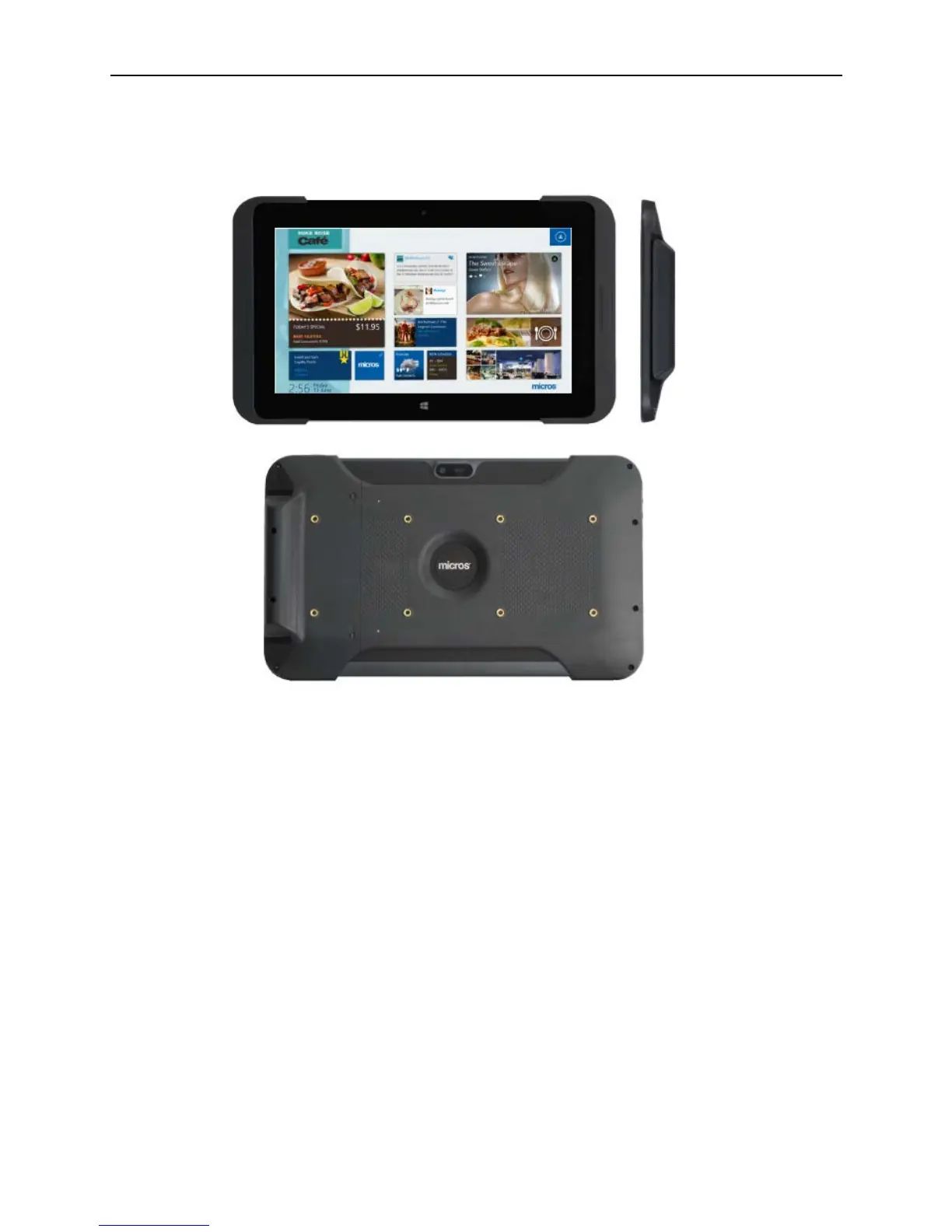

The figure below shows the front, rear, and MSR views of the Tablet E-Series 11 with the
available MSR sleeve.
Figure 1-3 Tablet E-Series 11 with Optional MSR Sleeve
Tablet E-Series 11 Features
The Tablet E-Series 11 includes a 10.8” WXGA 1920x1080 HD LCD, 1.46GHz Intel Atom
Quad Core Processor, 2GB DDR3L RAM, and 64GB eMMC storage device.
Also included is an 802.11 a/b/c/g/n Dual Band WiFi Radio, Bluetooth 4.0, and Micro
SD Card Reader supporting up to 64GB.
The Tablet E-Series 11 ships with a Windows Embedded 8.1 Industrial Pro image
customized to include the MICROS Client Application Loader (CAL) and the
Tablet/Base Station E-Series Diagnostics Utility.
OS image recovery methods include restoring the image from a hidden recovery
partition, or by using the appropriate Tablet E-Series USB Recovery Flash Drive. See
Chapter 3 for more info about image recovery.
Optional MSR Sleeve
The figure below shows how the connectors on the optional sleeve align with the Tablet
E-Series 11 USB Ports shown on the lower left. The full size USB port is used by the MSR
and is not available. The Micro USB Port is for charging only and accepts input from a
charging transformer or optional gang charging station.
