1-8 Introduction of the MICROS Tablet and Base Station E-Series

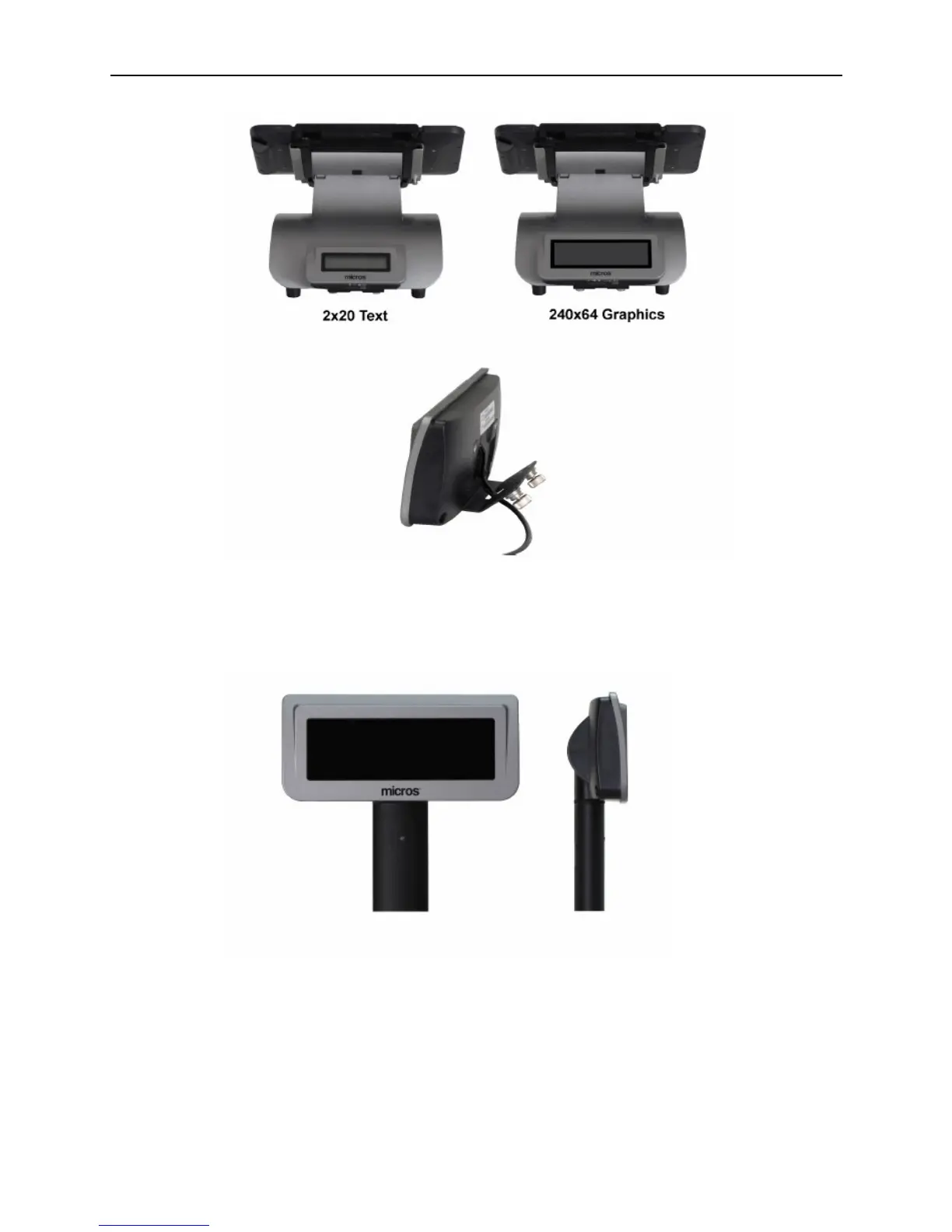

Figure 1-10 Series 2 Integrated 240x64 and 2x20 Customer Displays
Series 2 Pole
The figure below shows front and side views of the Series 2 240x64 Pole Display.
Figure 1-11 Series 240x64 Pole Display
The Series 2 pole and base are oval shaped, but the pole centers are compatible with the
Series 1 pole display base, shown below.
