Oracle e-series User Manual

Installing and Operating the Tablet and Base Station E-Series 3-15
Using the Tablet E-Series Recovery Controls
This section points out the Tablet E-Series 8 and E-Series 11 Power and Volume controls
and where to attach the USB Recovery Flash Drive on each device. The optional MSR
Sleeve must be removed to use the USB Recovery Flash Drive.

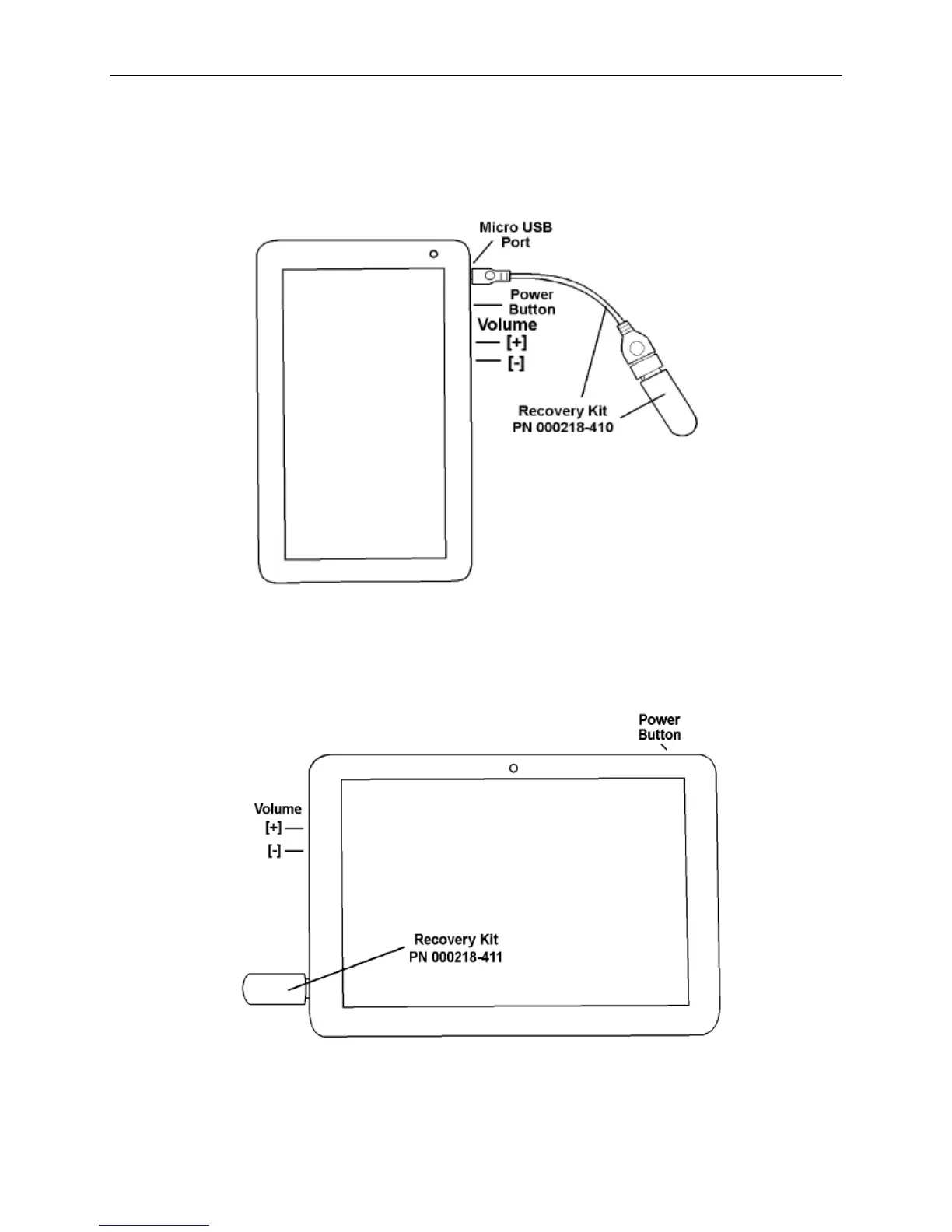

Figure 3-10 Using the USB Recovery Flash Drive - Tablet E-Series 8
Figure 3-11 Using the USB Recovery Flash Drive - Tablet E-Series 11

Oracle e-series Specifications

General

Brand	Oracle
Model	e-series
Category	Tablet
Language	English

Summary

Preface and Support Information

Audience and Documentation

Defines the intended users and provides links to Oracle Hospitality product documentation.

Customer Support and Revision History

Provides contact details for Oracle Customer Support and lists document revision history.

Introduction to MICROS Tablet and Base Station E-Series

Tablet E-Series Overview and Features

Details the two Tablet E-Series models (8" and 11"), their features, and optional MSR sleeves.

Base Station E-Series Functionality and Peripherals

Explains the Base Station's role, connectivity, indicators, and supported accessories.

System Specifications and Certifications

Provides detailed specifications for Tablet E-Series, Base Station, power, and certifications.

Identifying the Internal Components

Base Station E-Series Disassembly and Main Board

Procedure for disassembling the Base Station and description of its main board components and block diagram.

Base Station E-Series Controllers and ICs

Details the MCU, USB hubs, UARTs, fuel gauge, and charger ICs on the Base Station E-Series main board.

Installing and Operating the Tablet and Base Station E-Series

Environment, Care, and Safety Precautions

Covers equipment placement, handling, ESD, operating temperatures, and proximity to foreign materials.

Tablet E-Series Operation, Controls, and Settings

Details basic operation, operator controls, power settings, touchscreen calibration, and MSR sleeve installation.

Tablet E-Series Recovery and Charging

Covers charging procedures, recovery methods, and creating/using recovery flash drives.

Base Station Operation and Peripherals Installation

Details Base Station operation, tray, LEDs, battery, docking, storage, warnings, and installation of peripherals.

Tablet and Base Station E-Series Diagnostics Utilities

Starting Diagnostics Utility and System Information

Instructions on starting the utility and viewing system and battery information.

Device-Specific Diagnostic Tests

Covers tests for customer displays, cash drawers, serial ports, battery, scanner, printer, and LEDs.

Appendices: Dimensions and Connectors

Equipment Dimensions

Provides dimensional drawings for tablets, base stations, and accessories.

Connector and Cable Diagrams

Details I/O panel connectors, including IDN, RS232, and Cash Drawer connections.
