3-18 Installing and Operating the Tablet and Base Station E-Series

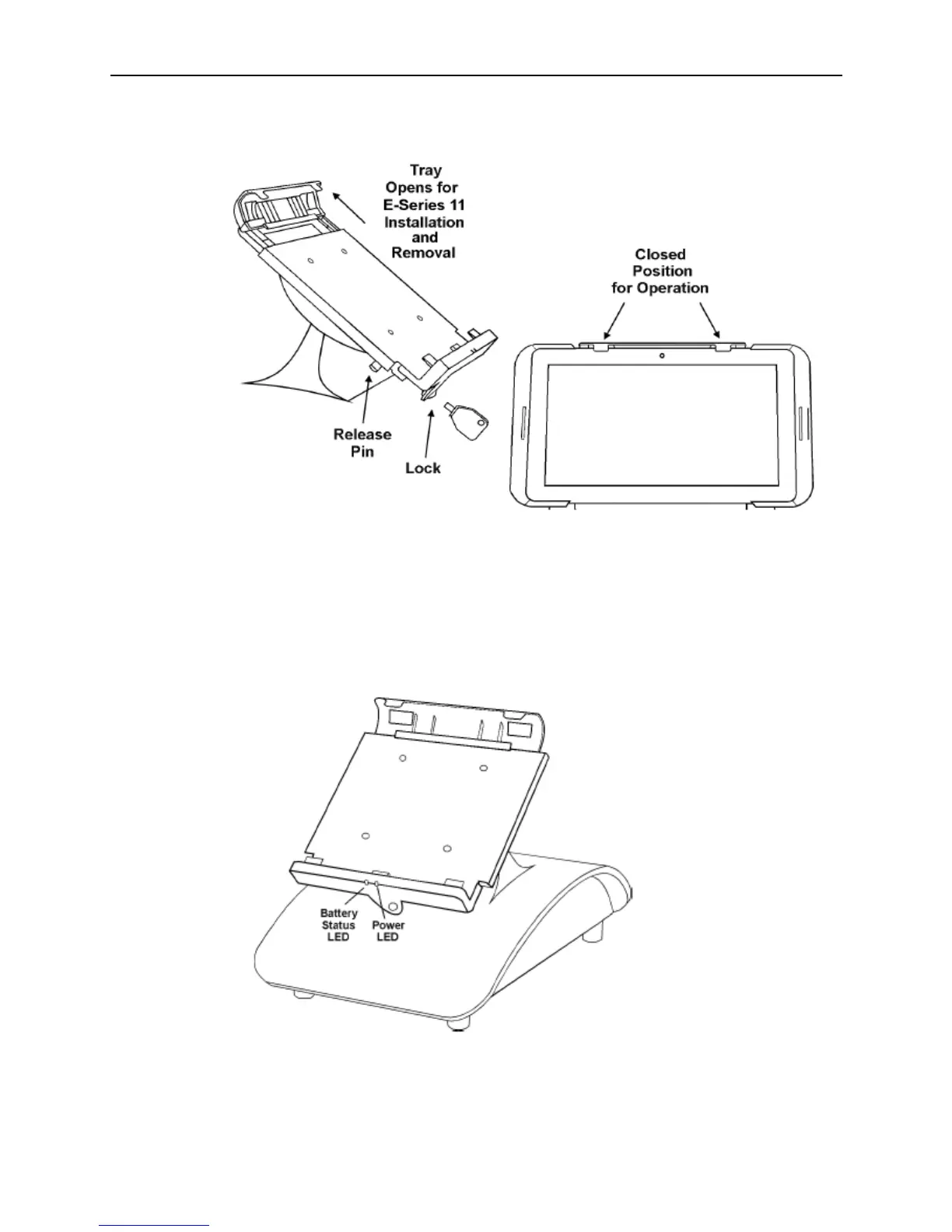

Figure 3-15 Base Station E-Series 11 Tray Retention Mechanism
Details of the tray retention mechanism are shown above. The left side points out the
location of the Release Pin that allows the tray to be lifted for installation and removal.
After installation, the E-Series 11 tray can be secured using the provided One Way key.
The Base Station E-Series includes two LEDs located at the base of the tray as shown in
the Figure below. The Power LED displays Green when the E-Series 11 is installed. The
Battery LED displays the charge and discharge status of the optional Smart Battery.
Figure 3-16 Base Station E-Series Base Station LEDs
Like the R-Series, the Base Station E-Series base does not include an AC power switch.
When connected to AC Power, it remains in a low power sleep mode.
