3-8 Installing and Operating the Tablet and Base Station E-Series
Removing the Tablet E-Series 8 MSR Sleeve
To remove the E-Series 8 MSR Sleeve, follow the instructions below.
1. Turn the screws to the Unlock position and remove the USB Plug.
2. Place your thumbnail in the slot shown by the arrow and remove the tablet from the
sleeve.

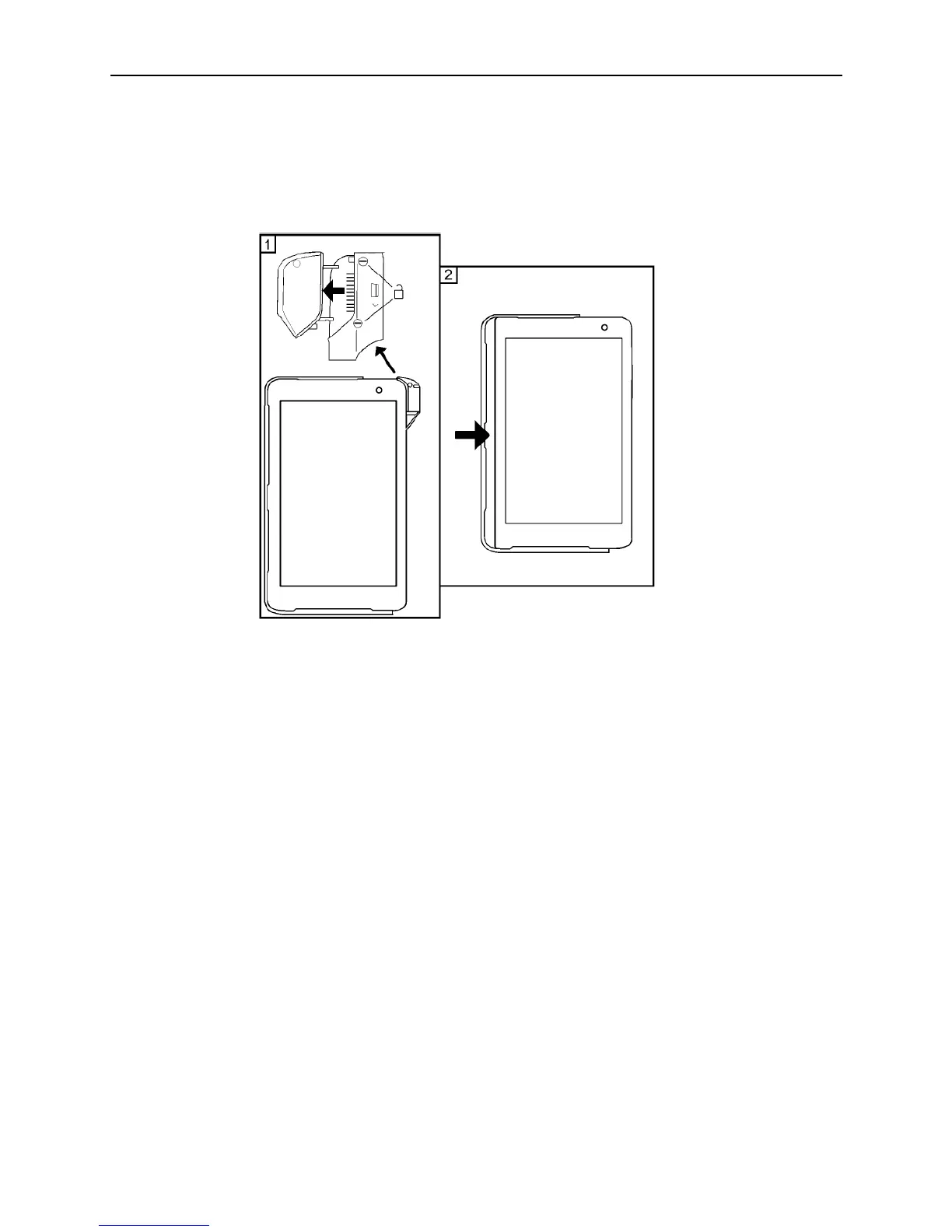

Figure 3-5 Removing the E-Series 8 MSR Sleeve
Installing the Tablet E-Series 11 MSR Sleeve
To install the Tablet E-Series 11 into the optional MSR sleeve, follow the instructions
below.
1. Start by inserting the tablet into the sleeve with the Micro and Standard USB
connectors oriented as shown.
2. Slide and attach the side of the sleeve with the MSR.
3. Place the unit facedown and, using a small flat blade screwdriver, turn the screws to
the Lock position.
