Identifying the Internal Components 2-1
2 Identifying the Internal Components
This chapter describes how to open the Base Station E-Series, identify the internal
components, and provides technical descriptions and a block diagram.
Disassembling the Base Station E-Series
The following procedure describes how to disassemble the unit and access the system
board and peripheral components.
Caution: Double Pole/Neutral Filtering
The Base Station E-Series Power Supply contains a
permanently connected fuse in the neutral line. After fuse
operation, parts of the power supply remain energized and
present a shock hazard as long as the AC Power Cord is
connected. Always disconnect the AC power cord before
opening the unit for service or configuration.
1. Remove all cables from the I/O Panel including the AC Power cable before
disassembling the unit.
2. Remove the optional Smart Battery if installed. The optional Smart Battery is capable
of powering Base Station E-Series and must be removed before opening the unit for
service or installing peripherals.

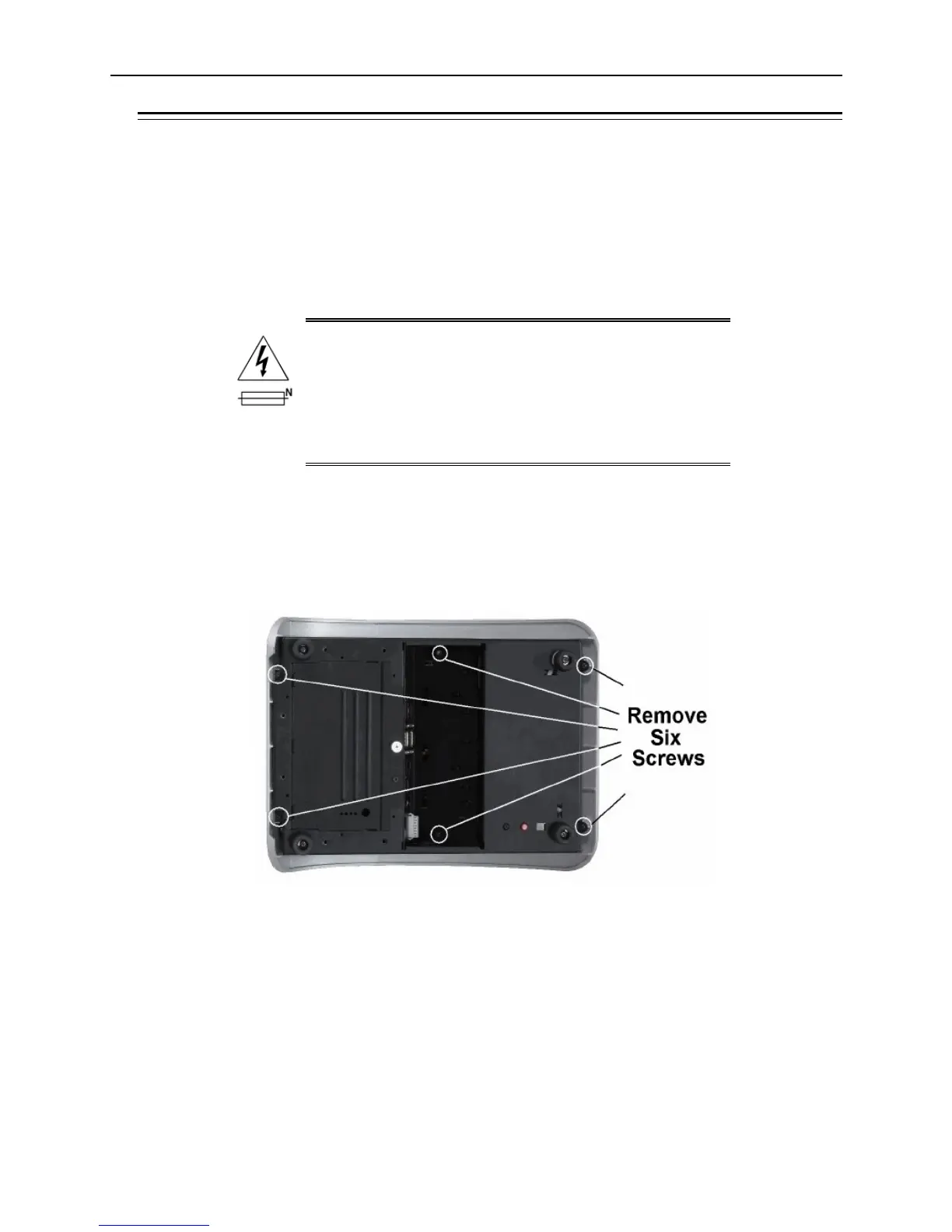

3. Place the Base Station E-Series face down and remove the screws as shown below.
Figure 2-1 Removing the Base Station Screws
4. Return the unit to the normal operating position. Lift up and tilt the cover to the
right, just enough to remove the Cable Bundle from CN8 before fully removing the
cover.
