2-2
INSTALLATION ORBAN MODEL 8685
Customer names and information are confidential and are not sold to
anyone.
2. Check the line voltage, fuse and power cord.
DO NOT connect power to the unit yet!
A) Check the Voltage Select switch. This is on the rear panel.
The 8685 is shipped from the factory with the Voltage Select switch set to
the 230V position. Check and set the Voltage Select switch to your local
voltage requirements. To change the operating voltage, set the Voltage
Select to 115V (for 90-130V) or 230V (for 200-250V) as appropriate.
B) Install the proper fuse and fuse holder, per your country’s standards.
The 8685 is shipped from the factory with the fuse and fuse holder re-
moved. Select the appropriate fuse holder and fuse from the supplied
parts in the accessory kit. Use the gray fuse holder for domestic/115V op-
eration, or the black fuse holder for European/230V operation. For safety,
use ½ A-250 V Slow-Blow for 115V and 250mA-250V for 230V for 230V.
CONDUCTOR
WIRE COLOR
L
N
E
LINE
NEUTRAL
EARTH GND
BROWN
BLUE
GREEN-YELLOW
BLACK
WHITE
GREEN
NORMAL ALT
PLUG FOR
115 VAC
(USA)
CONDUCTOR WIRE COLOR
L
N
E
LINE
NEUTRAL
EARTH GND
BROWN
BLUE
GREEN-YELLOW
PLUG FOR
230 VAC
(EUROPEAN)
TYPE H05VV - F - 0.75
TYPE 18/3 SVT COR, TYP
(3 x .82 mm
2
)

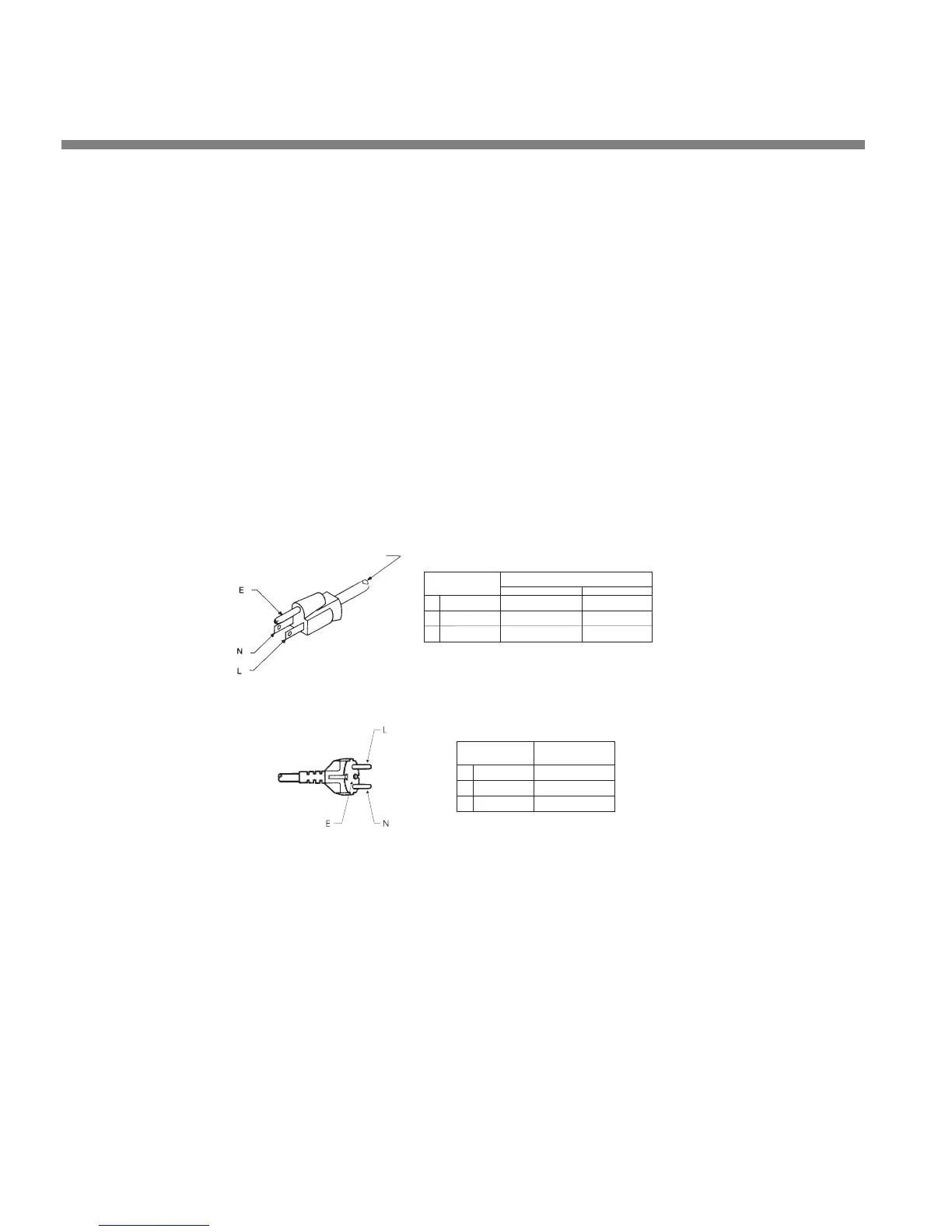

Figure 2-1: AC Line Cord Wire Standard)
C) Check the power cord.
AC power passes through an IEC-standard mains connector and an RF fil-
ter designed to meet the standards of all international safety authorities.
The power cord is terminated in a “U-ground” plug (USA standard), or
CEE7/7 plug (Continental Europe), as appropriate to your 8685’s Model
Number. The green/yellow wire is connected directly to the 8685 chassis.
If you need to change the plug to meet your country’s standard and you
are qualified to do so, see Figure 2-1. Otherwise, purc
hase a new mains
cord with the correct line plug attached.
