Preparation
15
Safety precautions How to use Help Appendix

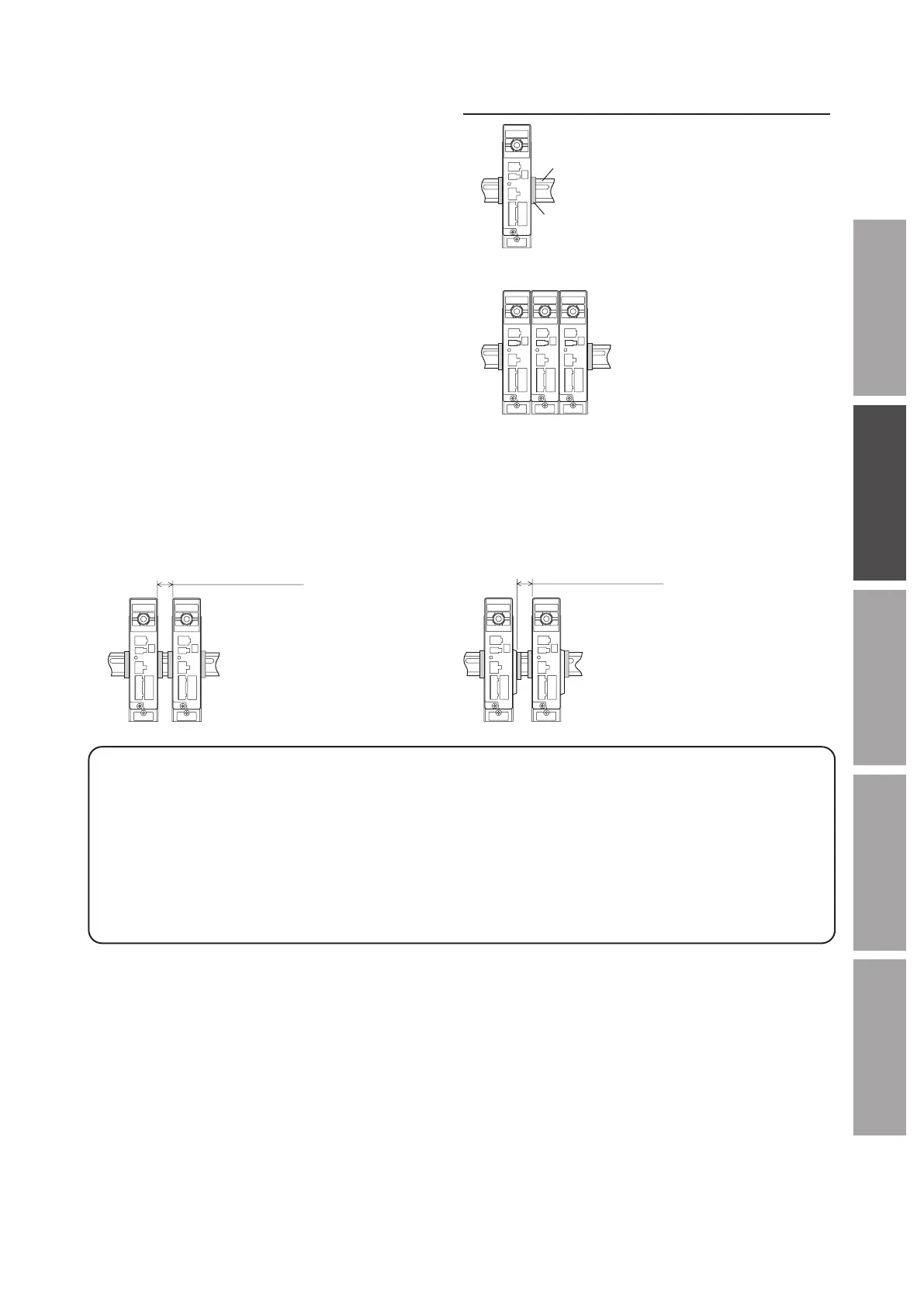

When a driver is installed to a DIN rail
Use the DIN rail mounting plate
MADP02
(sold separately), and
install it to a 35 mm (1.38 in.) wide DIN rail.
After installing to the DIN rail, secure the both sides of the
driver with end plates that the customer provides.
Refer to "
MADP02
handling guideline" for installation method.
Operating ambient temperature: 0 to +40°C (+32 to +104 °F)
DIN rail
z
When drivers are installed in a close contact state
300 W type and 400 W type drivers of single-phase 200-240 VAC
cannot be installed in a close contact state.
z
When two or more drivers are installed
When two or more drivers are installed side by side, provide
20 mm (0.79 in.) clearances in the horizontal directions.
300 W Single-phase 200-240 VAC
in horizontal direction
400 W Single-phase 200-240 VAC
in horizontal direction
Notes when installing drivers in a close contact state
The temperature inside the driver rises as the number of units the drivers are closely installed increases, and if it exceeds
85°C (185 °F), the main circuit overheat alarm will be generated.
When the main circuit overheat alarm is generated, keep the temperature inside of the driver equal to or lower than 85 °C
(185 °F) with either of the following methods.
•
Improve the ventilation condition in the enclosure.
•
Increase the size of the heat sink to which the driver is installed.
The temperature inside the driver can be checked on the status monitor of the
MEXE02
.
