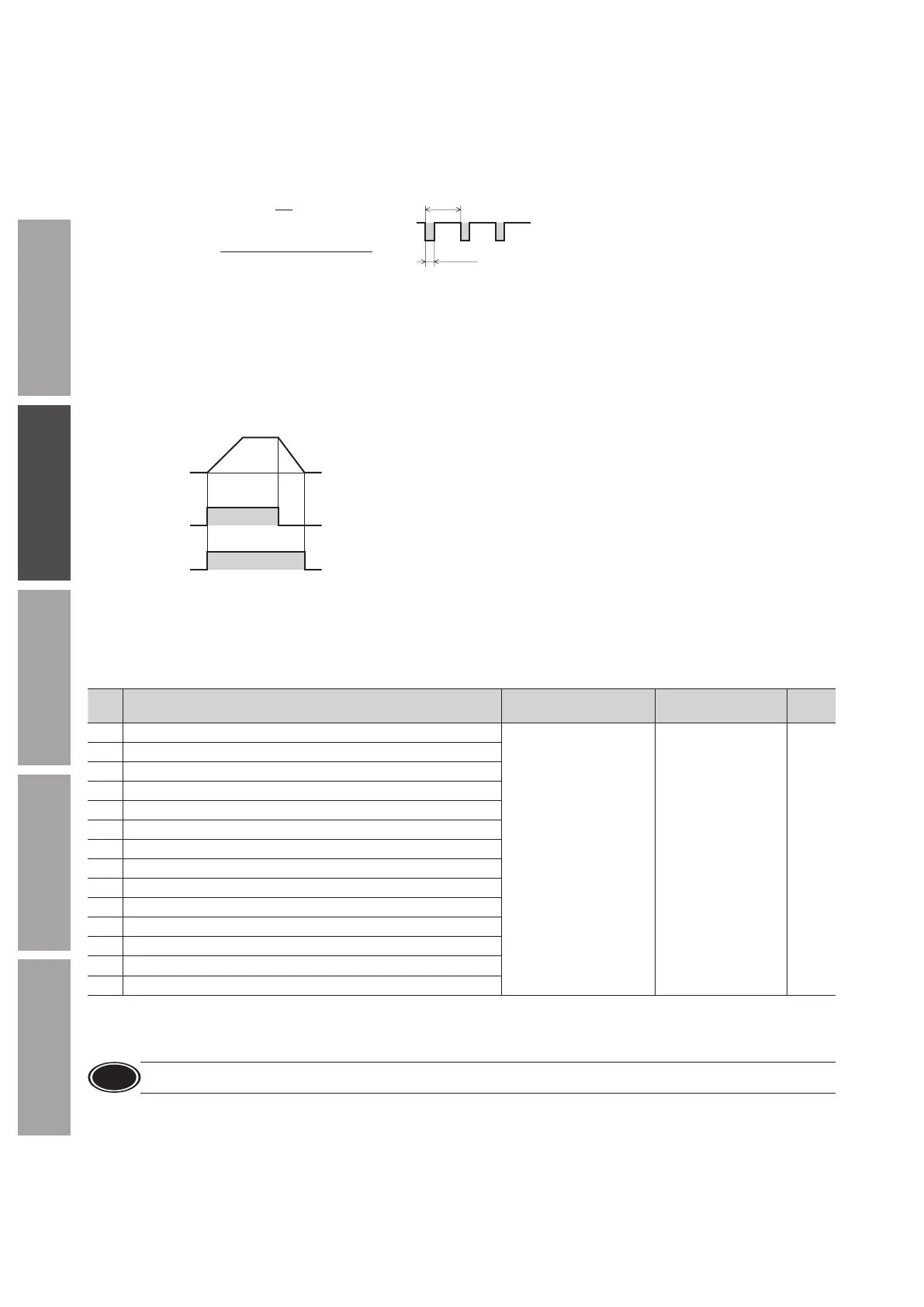

9-4 Description of output signals

SPEED-OUT output
30 pulses are output while the motor output shaft makes one revolution in synchronization with the motor operation.
The pulse width of output pulse signals is 0.2 ms. The motor rotation speed can be calculated using the SPEED-OUT output.
Rotation speed (r/min) =×
60
Frequency of the SPEED-OUT
30
Fr
equency of the SPEED-OUT (Hz) =
1
T
T
0.2 ms

ALARM-OUT output
When the protective function of the driver is activated, the ALARM-OUT output is turned OFF and the ALARM LED blinks (normally
closed).
At the same time, the alarm code is shown on the display of the operation panel, and the motor coasts to a stop. (The motor
stops instantaneously if stopped by the EXT-ERROR input.)

MOVE output
The MOVE output is turned ON when the motor is rotating by turning the operation input signal ON.
Motor movement
CW
FWD input
OFF
ON
MOVE output
ON
OFF

INFO output
If information is generated, the INFO output is turned ON.
You can set whether to turn the INFO output ON or OFF in each INFO action parameter.
Related parameters
ID Parameter name Description Setting range
Factory
setting
1954 INFO action (Driver temperature information (INFO-DRVTMP))
Sets the INFO output
and LED status when
corresponding information
is generated.
Only the specied
information can be output.
※
The bit output status of
each Information is not
changed.
The bit output can
be checked using the
internal I/O monitor of
the
MEXE02
.
0: INFO action is not
applied
• INFO output: OFF
• LED: Unlit
1: INFO action is applied
• INFO output: ON
• LED: Blink
1
1956 INFO action (Overvoltage information (INFO-OVOLT))
1957 INFO action (Undervoltage information (INFO-UVOLT))
1959 INFO action (Load information (INFO-LOAD))
1960 INFO action (Speed information (INFO-SPD))
1964 INFO action (Operation prohibited information (INFO-DRV))
1972 INFO action (Tripmeter information (INFO-TRIP))
1973 INFO action (Odometer information (INFO-ODO))
1978 INFO action (Main power supply time information (INFO-PTIME))
1979 INFO action (Main power supply count information (INFO-PCOUNT))
1980 INFO action (Start operation restricted mode information (INFO-DSLMTD))
1981 INFO action (I/O test mode information (INFO-IOTEST))
1982 INFO action (Conguration request information (INFO-CFG))
1983 INFO action (Power cycling request information (INFO-RBT))

TLC output
When the motor torque reaches the torque limiting value, the TLC output is turned ON.
Note
If the torque limiting value is set to less than 20%, the TLC output may not be stable.
