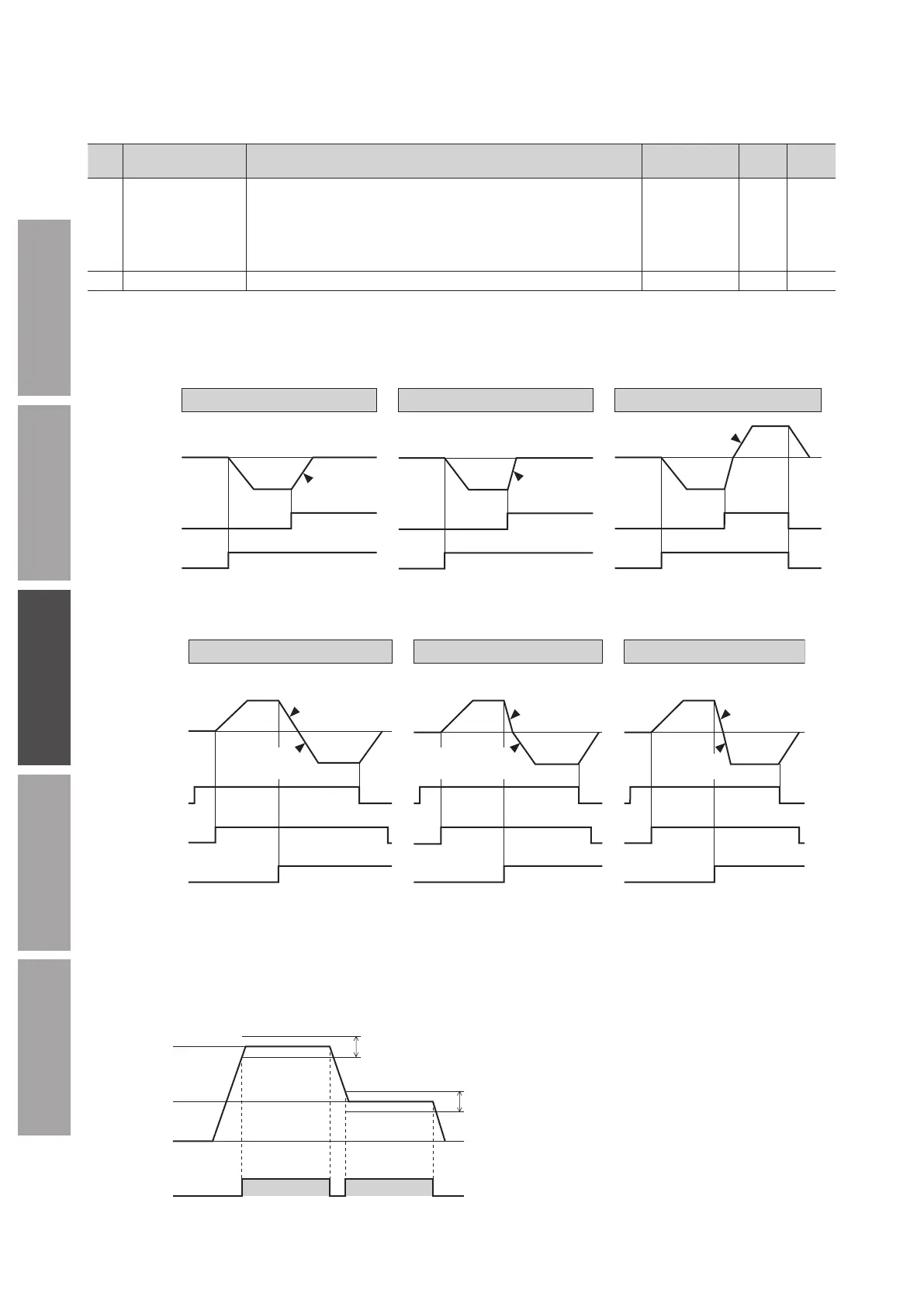

3-5 I/O action parameters
A: Update immediately, C: Update after executing conguration or turning on the power again
ID Parameter name Description Setting range
Factory
setting
Update
1819
Operation input mode
selection
Selects whether the operation input signal is used in the 2-wire mode or
the 3-wire mode. Refer to p.30 for the 2-wire mode or 3-wire mode.
Also, using this parameter, the motor movement when the same operation
input signals are input can be changed as shown in the charts below.
0: 2-Wire mode 1
1: 3-Wire mode 1
2: 2-Wire mode 2
3: 2-Wire mode 3
4: 3-Wire mode 2
5: 3-Wire mode 3
0 C
1817 VA detection width Sets the detection width for the VA output. 1 to 400 [r/min] 200 A

"Operation input mode selection" parameter (ID: 1819)
z
2-Wire mode
The motor movement when the FWD input and the REV input are turned ON simultaneously varies depending on the settings.
Mot
or operation
CCW
FWD input
OFF
ON
REV input
ON
OFF
Deceleration
stop
CCW
Instantaneous
stop
2-wire input mode 1 (setting 0) 2-wire input mode 2 (setting 2) 2-wire input mode 3 (setting 3)
CCW
CW
FWD is
prioritized
z
3-Wire mode
The motor movement when the ON-OFF status of the CW/CCW input is switched varies depending on the settings.
Motor operation
CW
CCW
ST
ART/STOP
input
OFF
ON
RUN/BRAKE
input
ON
OFF
CW/CCW
input
ON
OFF
Deceleration
stop
CW
CCW
Instantaneous
stop
CW
CCW
Instantaneous
stop
3-wire input mode 1 (setting 1) 3-wire input mode 2 (setting 4) 3-wire input mode 3 (setting 5)
Starting at the
acceleration time
Starting at the
shortest time
Starting at the
acceleration time

"VA detection width" parameter (ID: 1817)
The VA output signal is output when the motor reaches the plus or minus range of the "VA detection width" with respect to the
set rotation speed.
The VA detection width can be set in a range of 1 to 400 r/min with respect to the set rotation speed.
(Factory setting: 200 r/min)
Example: When the motor speed changes from the setting speed 1 to the setting speed 2
±VA detection width
Setting speed
1
Setting speed
2
Motor speed
ON
OFF
VA outpu
t
±VA detection widt
