How to use
48
PreparationSafety precautions Help Appendix
This chapter explains how to set data and how to operate a motor using the operation panel on the driver.
1. Operation panel
This chapter explains the name and function of each part of the operation panel as well as function modes.

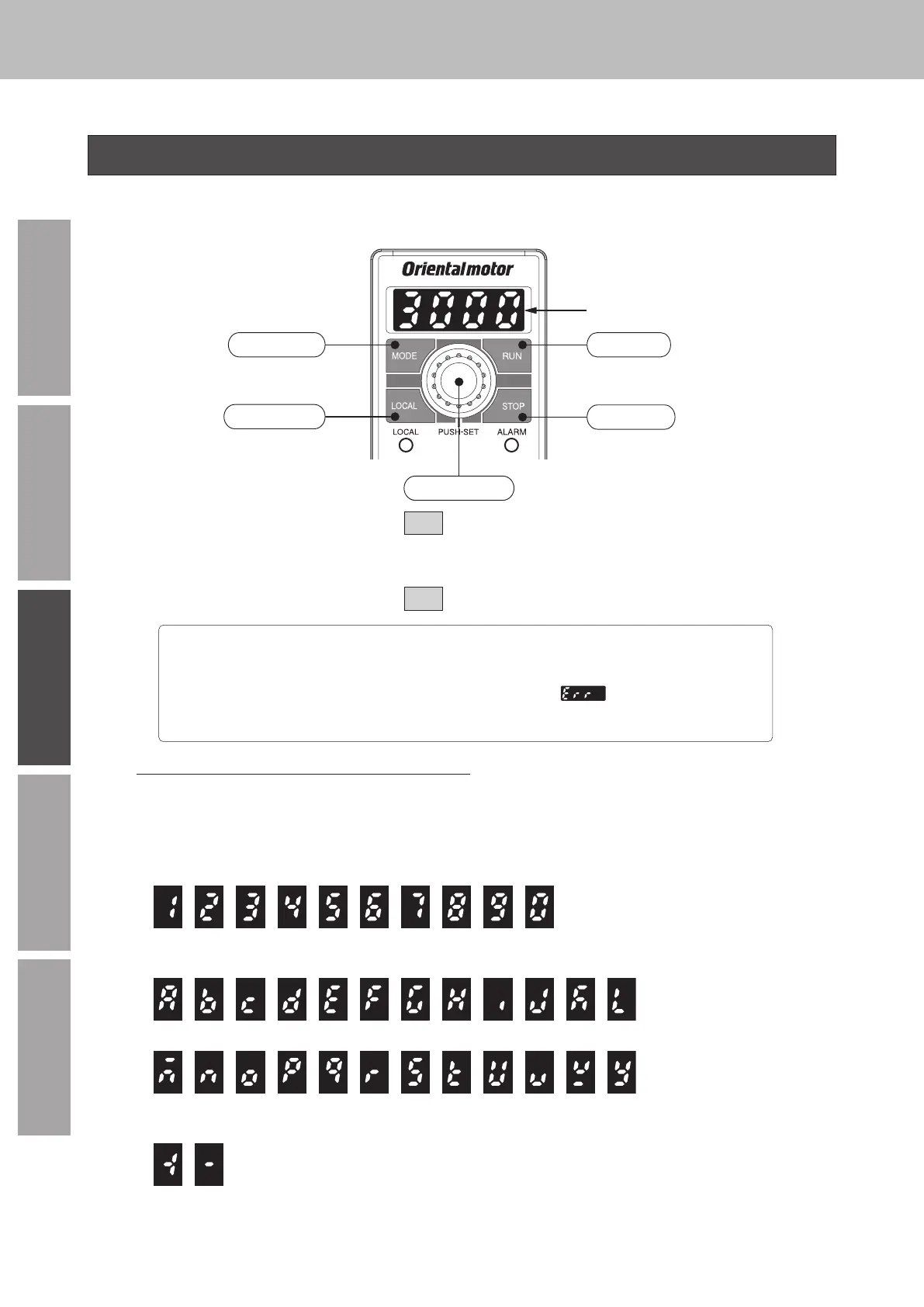

1-1 Names and functions of parts
• The local control operation can be enabled when the monitor mode is selected.
If the LOCAL key is pressed when the other operation mode is selected, " " is displayed.
• The operation input signal is disabled during the local control operation. (Other input signals are enabled.)
Local control operation: This is a method to operate using the operation panel.
Remote control operation: This is the method to operate using the external signals or
MEXE02
.
Operates a motor while the local
control operation is performed.
Stops the motor while the local
control operation is performed.
Switches the operation mode.
Moves to the upper level.
MODE key
Switches whether to enable or disable
the setting of the local control operation
.
he LOCAL LED is lit while the local
control operation is performed.
LOCAL key
RUN key
STOP key
Setting dial
Changes the setting value of the data and
parameters.
Press :
Sets (stores) the data.
•
Selection of parameter: Turn clockwise or counterclockwise.
•
Change of the setting value: Turning clockwise causes to
increase the setting value.
Turning counterclockwise
causes to decrease the setting
value.
Display
Turn
The operation panel cannot remove from the driver.
1-2 How to read the display
The display shows as follows.
12345
∗
67890
A
+
-
Sign
Alphabet
B
CDEFGH IJ
MNOPQRS
∗
TUVWY
∗ Arabic number "5" and alphabet "S" are the same sign.
•
The operating method is described on p.36.
Operation panel
