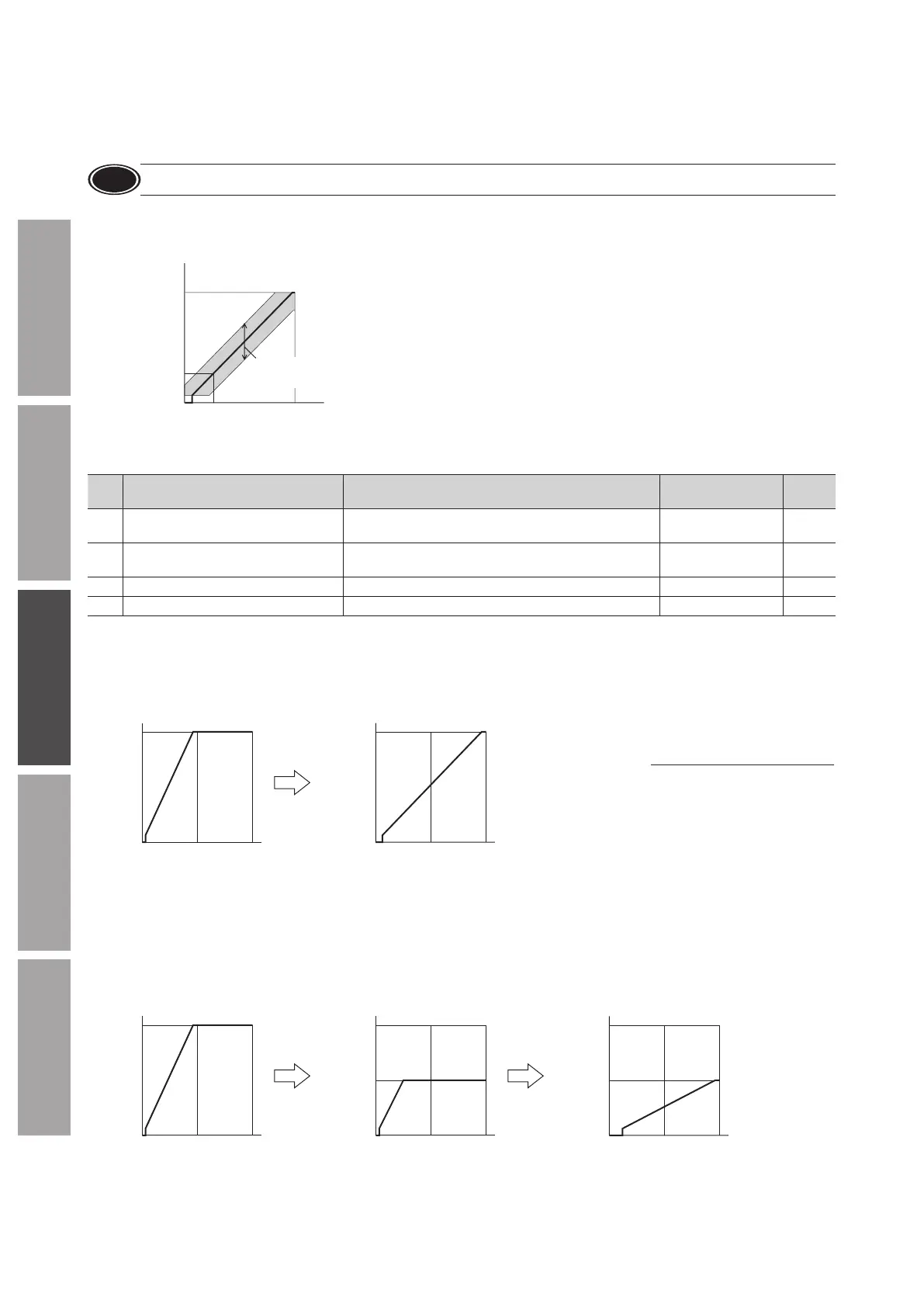

2-5 Gain adjustment and oset adjustment for rotation speed
If the gain or oset is adjusted when the rotation speed is set using the external potentiometer or external DC voltage, the slope
of the speed command can be changed and the speed can nely be adjusted.
Note
The rotation speed corresponding to the voltage value varies depending on the product.

Gain adjustment and oset adjustment for rotation speed
Adjust using the following parameters.
0
Analog operation
speed command
gain （ID: 1821）
Speed lower limit
（ID: 2086）
Speed upper
limit （ID: 2085）
15
Rotation speed
Analog operation speed
command oset （ID: 1822
）
Setting voltage
Analog operation
speed command
Setting voltage
Analog operation
speed command
gain
Analog operation
speed command
oset
= × +
z
Related parameters
ID Parameter name Description Setting range
Factory
setting
1821 Analog operation speed command gain
Sets the speed command per 1 VDC of the input voltage by
the external analog setting device.
0 to 4000 r/min 850
1822 Analog operation speed command oset
Sets the oset of the speed command input by the external
analog setting device.
–2000 to +2000 r/min 0
2085 Speed upper limit Sets the upper limit value of the speed command. 50 to 4000 r/min 4000
2086 Speed lower limit Sets the lower limit value of the speed command. 50 to 4000 r/min 50
z
Setting example 1:
When operating the motor linearly up to the maximum rotation speed of 4000 r/min with external DC voltage
between 0 and 10 VDC
Set the "Analog operation speed command gain" parameter (ID: 1821) to 425.
0
4000
5 10
Setting voltage (V)
0
4000
5 10
Setting voltage (V)
Motor shaft rotation speed (r/min) Mot
or shaf
t rotation speed (r/min)
Analog operation speed
command gain∗
Speed upper limit
Maximum value of setting voltage
=
*
If the motor does not reach the speed upper limit when
the setting voltage is the maximum value, increase the
value in the analog operation speed command gain.
z
Setting example 2:
When operating the motor linearly up to the maximum rotation speed of 2000 r/min with external DC voltage
between 0 and 10 VDC
Set the "Speed upper limit" parameter (ID: 2085) to 2000 rst, and set the "Analog operation speed command gain" parameter
(ID: 1821) to 213.
0
4000
5 10
Setting voltage (V)
Motor shaft rotation speed (r/min)
0
4000
2000
5 10
Setting voltage (V)
0
4000
2000
5 10
Setting voltage (V)
Mot
or shaf
t rotation speed (r/min)
Mot
or shaf
t rotation speed (r/min)
Refer to p.60 when setting the "Speed lower limit" parameter using the analog setting device.
