2-2 Setting of operation data
Operation panel
Setting dial
Turn
clockwise
↓
Increase
Turn
counterclockwise
↓
Decrease
Press
↓
Set

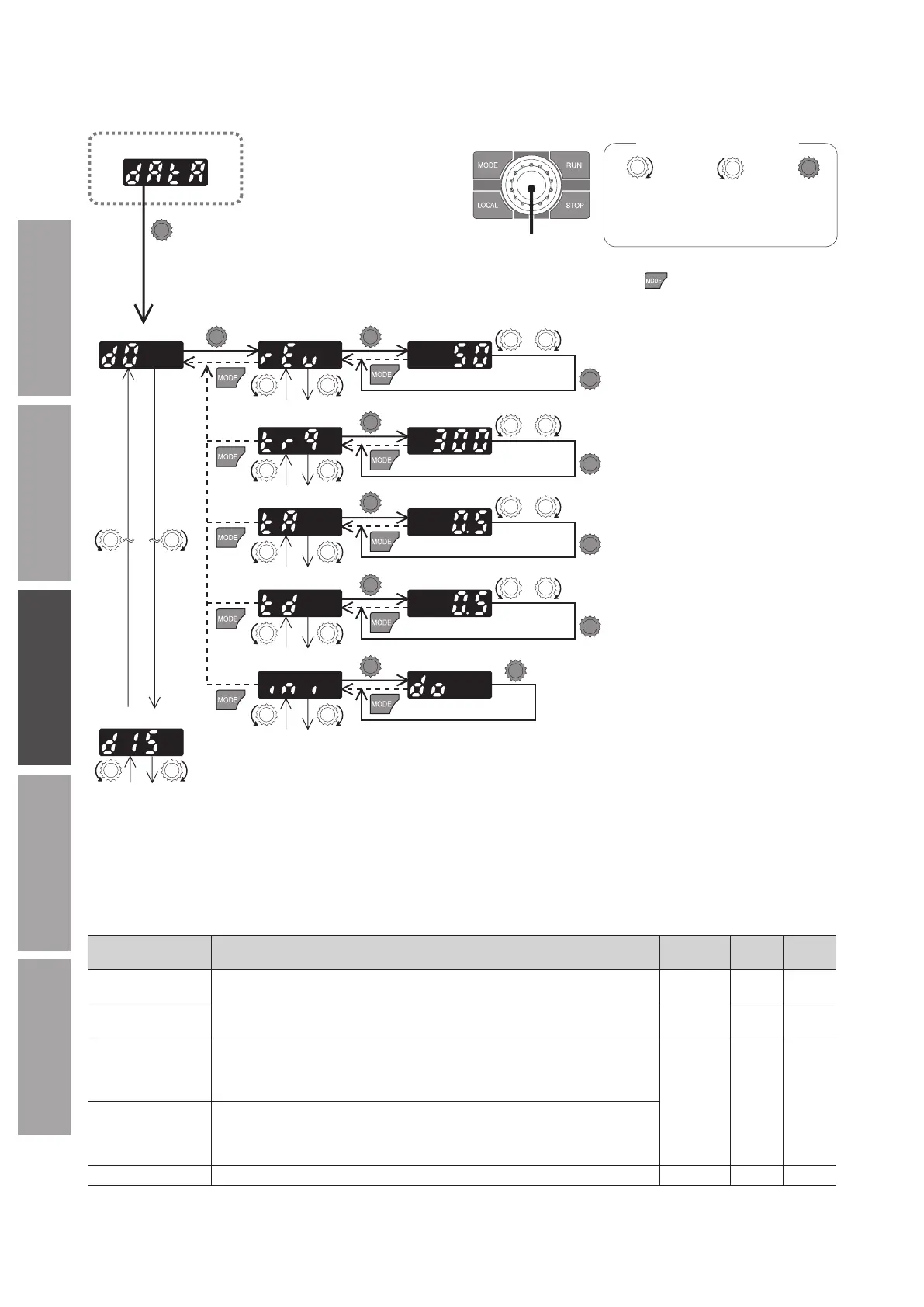

How to read the marks
Data No.0 Rotation speed
Data No.15
Data setting
Torque limiting
value
Data setting
Acceleration time Data setting
Deceleration time
Initialization
∗
Data setting
Execute
∗
To rotation speed
Press
To data No.0
Press Press
Press
Press
Press
Press
Press
Press
Press
Press
Press
∗
"Initialization": When operations are limited by the edit lock function, you cannot execute since the screen is not displayed.
Press
Press
Press
Press
Press
Press
Press
Press
Press
Top screen of data mode
Press
In the lower level except the top screen,
press to return to the previous level.
z
Setting items
Item Description
Setting
range
Setting
unit
Factory
setting
Rotation speed
Sets the motor rotation speed. Even if the speed reduction ratio or speed increasing
ratio is set, set the rotation speed based on the motor shaft.
50 to 4000
r/min
1 50
Torque limiting value
Sets if the output torque is limited while the motor rotates.
Set the maximum torque based on the motor rated torque being 100%.
0 to 300% 1 300
Acceleration time
Sets the acceleration time as the time needed for the motor to reach the rated
rotation speed (3000 r/min) from the standstill state. If the acceleration time needed
to reach the setting speed is set, change the value of the "Acceleration/deceleration
unit selection" parameter to "1."
⇒
p.62
0.0 to 15.0 s 0.1 0.5
Deceleration time
Sets the deceleration time as the time needed for the motor to stop from the rated
rotation speed (3000 r/min).
If the deceleration time needed to stop from the speed being rotated is set, change
the value of the "Acceleration/deceleration unit selection" parameter to "1."
⇒
p.62
Initialization Restores the data for each data number to the factory setting. – – –
