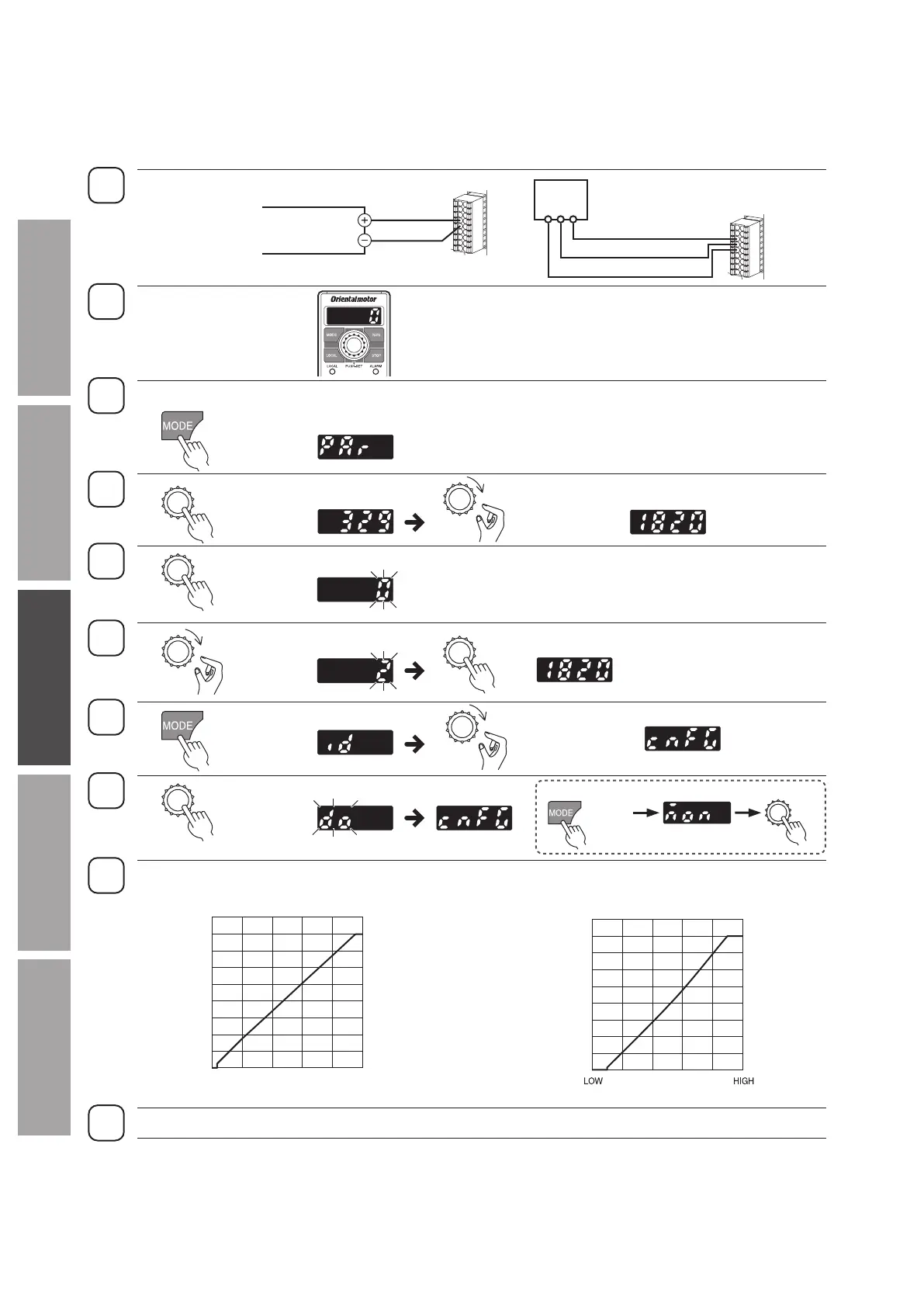

2-3-2 When setting with the external potentiometer or external DC voltage
When the rotation speed is set using the external potentiometer or external DC voltage, the setting of the “Speed, torque limiting
command selection" parameter is required to change.
DC power supply
0 to 5 VDC

CN5
Pin No.13
Pin No.14
CN5
1
3
2

Initial setting
1
Check the connection
2
3
Press three
times
Press twice
4
5
Press
6
Turn clockwise
to select 2
7
8
9
Press
ID input screen
Execute
Parameter mode
[ Parameter setting range ]
0: Digital setting
1: Analog setting for the rotation speed of the operation data No.1
2: Analog setting
Turn clockwise
to select 1820
Change the setting of the "Speed, torque limiting command selection" parameter (ID: 1820) to "2"
Determine the setting value by changing the DC voltage value
Press once
Turn clockwise
to select
Conguration
Press twice
10
Turn on the AC power supply
Pin No.13 VM input
Pin No.12 VH input
Pin No.14 VL input
External potentiometer
0 to 20
k
500
1000
1500
2000
2500
3000
3500
4000
0
PAVR2-20K (scale)
Motor shaft rotation speed (r/min)
Rotation speed : 0 r/min
External DC voltage (V)
Motor shaft rotation speed (r/min)

External DC voltage - Rotation speed characteristics
(representative values)
0
500
1000
1500
2000
2500
3000
3500
4000
24135

External potentiometer - Rotation speed characteristics
(representative values)
[ To return to the rotation speed display ]
Press
Press
three times
If the display is not shown as the above steps, check "Setting of parameters" of the operation panel on p.53.
The rotation speed can be
set with the voltage between
0 VDC and 10 VDC.
⇒
p.40
Refer to p.39 for the operating method.
