4. SPECIFICATIONS
REF : M18-SM-001 Rev 02
Page 16/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18
3. ELECTRIC & ELECTRONIC
3.1 GENERALITIES
Only three boards compose the MYTHIC 18 :
- the main board
- the preamplifier board
- and the GUI board
- In the case of replacement of the main board or preamplifier board, be aware of the
sensibility of this board to the electrical static discharge (ESD).
- Before operating check the earth connection and use the antistatic bag supply with the
board. Please contact your Orphée for more information.
- Be careful with the edge of the metal sheets after having dismantled the covers.
3.2 ELECTRICS PARTS VIEW

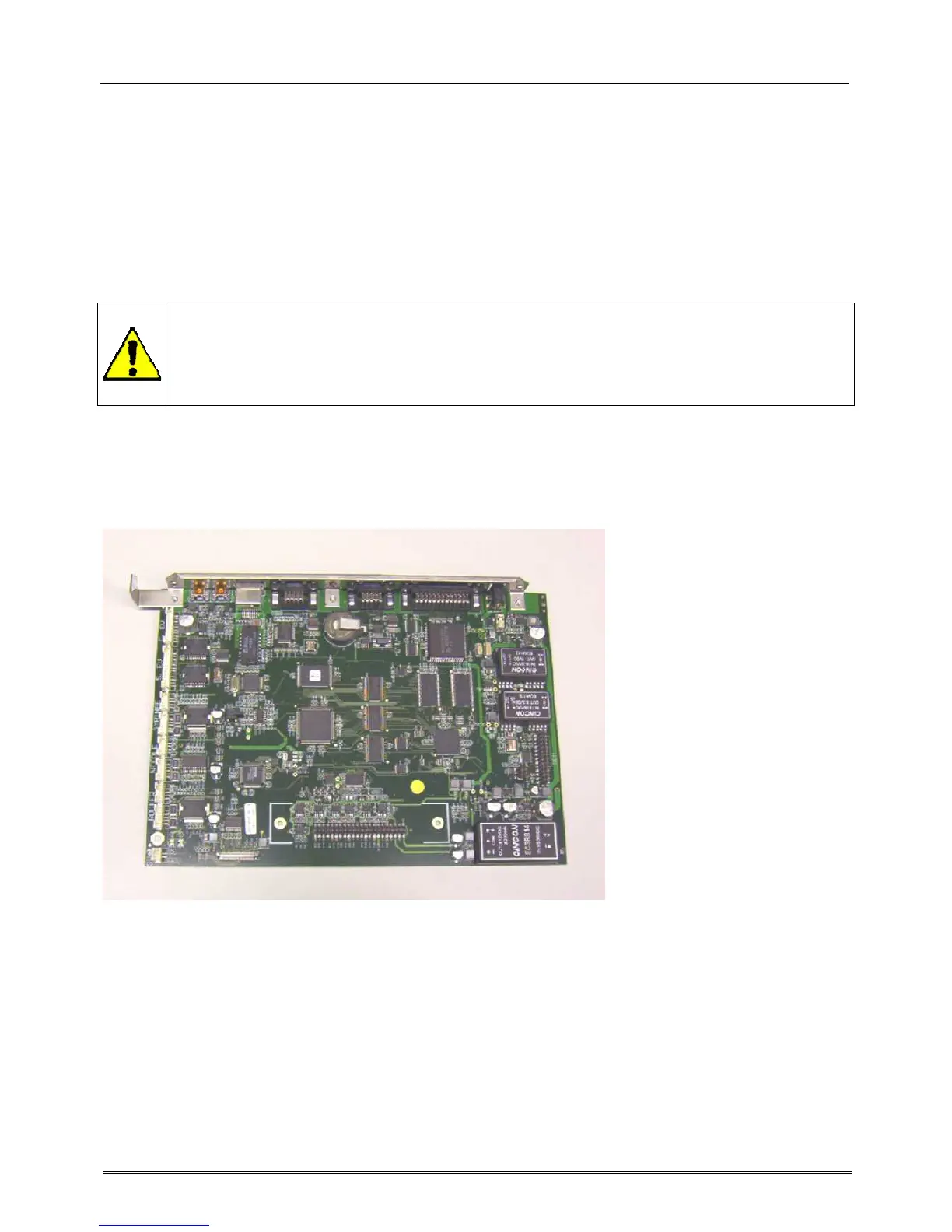

3.2.1 Main board
The mono electronic board is located between the hydraulic part and the reagent tray.
The board, driven by a 32-bit processor, manages the following parts :
- Sample needle, rocker, syringe block motors.
- Display and keyboard.
- Connexion mode (RS232, Ethernet, …).
- Printer.
- Measurement (Counting, hemoglobin measurement).
- Data processing.
- External barcode reader.
