Orphee MYTHIC 18 - Preamplifier Board Replacement

REF : M18-SM-001 Rev 02
9. REPARING
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 65/68
9.5.4. Preamplifier board replacement
NOTA : Before to dismantle the preamplifier board, dismantle the Main board (see section 5.2.1).

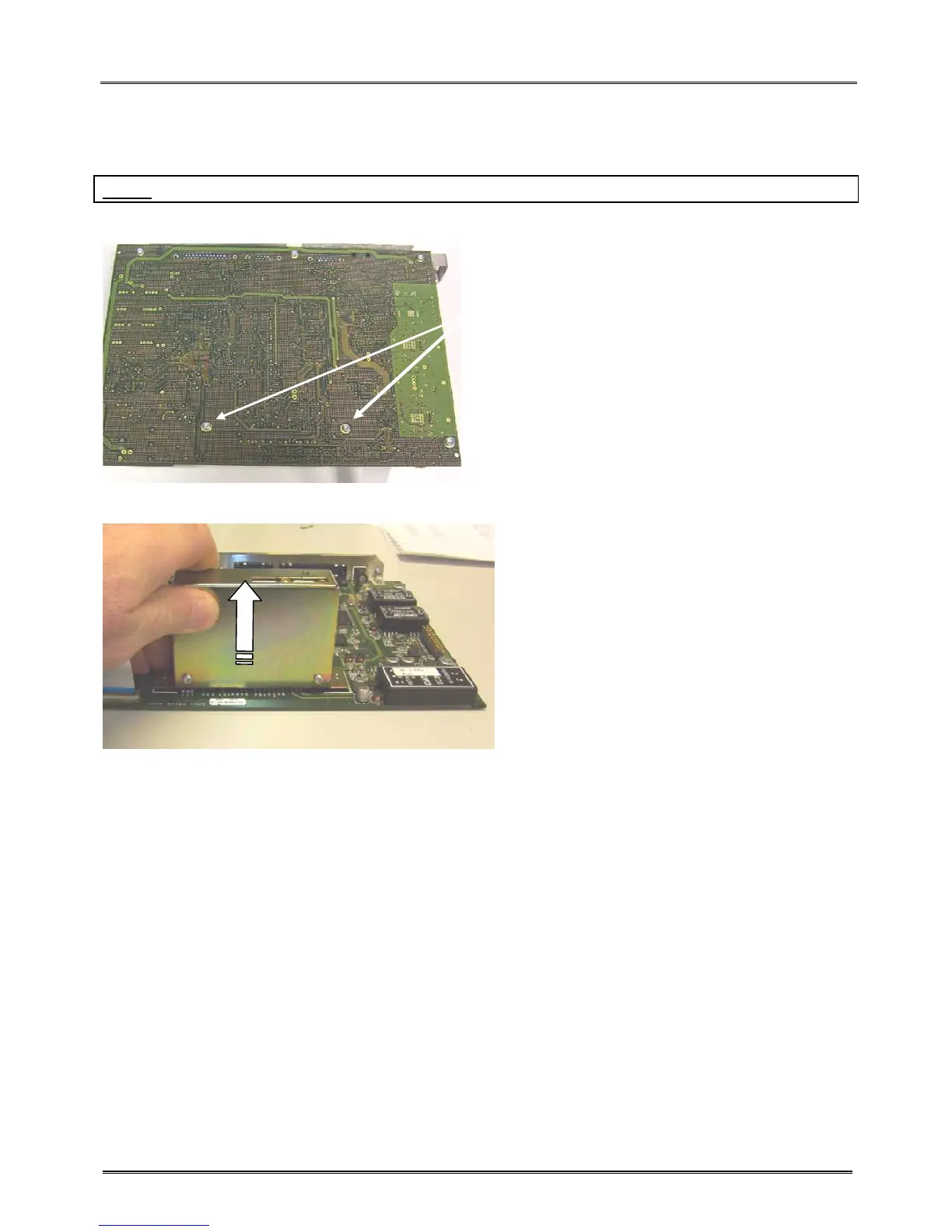

Remove the two screws located on the copper side.
Remove the preamplifier box from the main
board.
To reassemble the part, carry out the various operations in the opposite direction.
