Orphee MYTHIC 18 - Electronic Board Replacement Precautions; GUI Board Replacement Procedure

REF : M18-SM-001 Rev 02
9. REPARING
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 59/68
9.5 BOARDS REPLACEMENT
THE THREE BOARDS OF THE MYTHIC 18
ARE VERY SENSITIVE TO ELECTROSTATIC
DISCHARGE, YOU HAVE TO USE A BODY
EARTH CONNECTION TO HANDLE THE
BOARDS FOR THEIR REPLACEMENT OR
DISMANTLING.

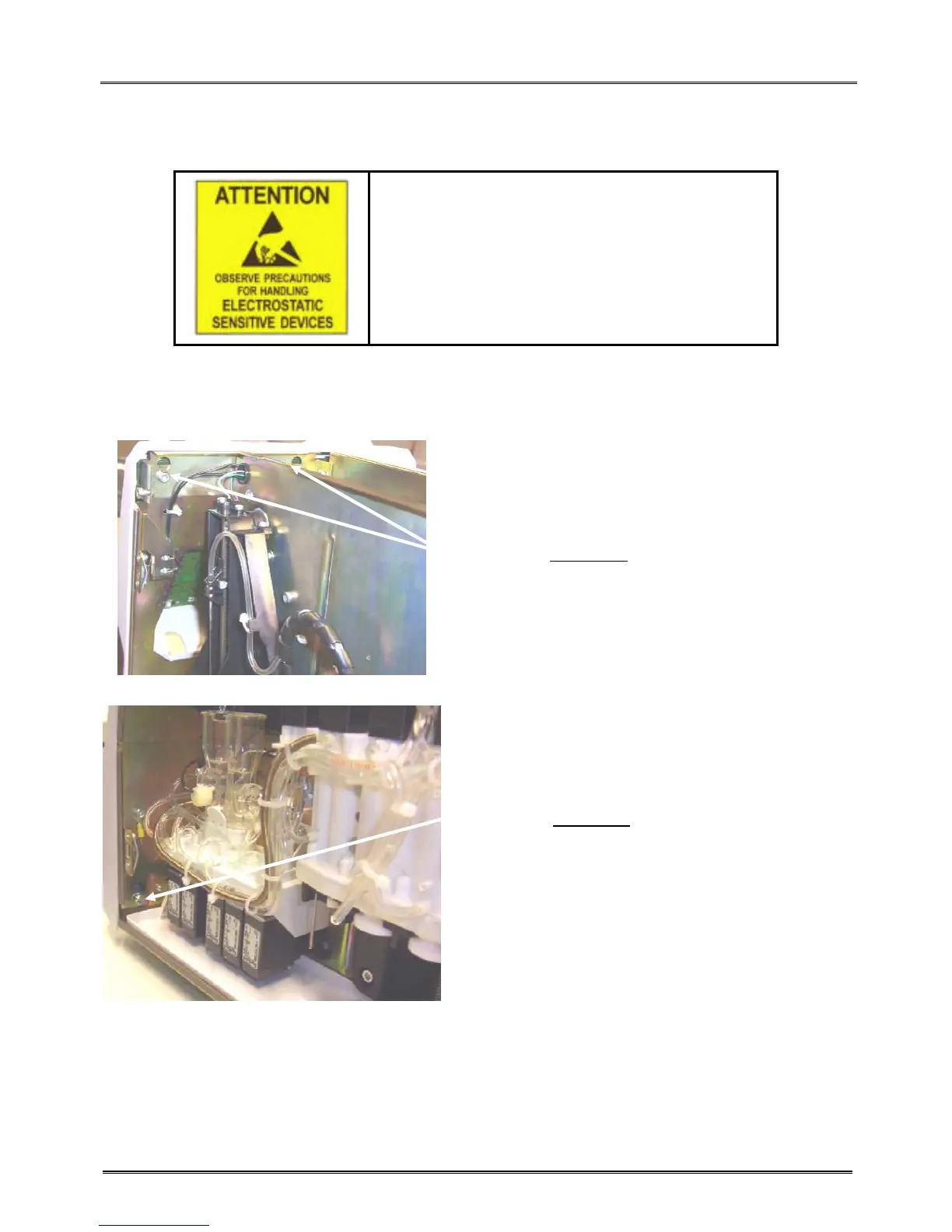

9.5.1 GUI board replacement
Unscrew (but
WITHOUT dismantle them) the two upper
screws which maintain the front panel.
Unscrew (but
WITHOUT dismantle it) the lower screw
which maintain the front panel.
