9. REPARING
REF : M18-SM-001 Rev 02
Page 60/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18

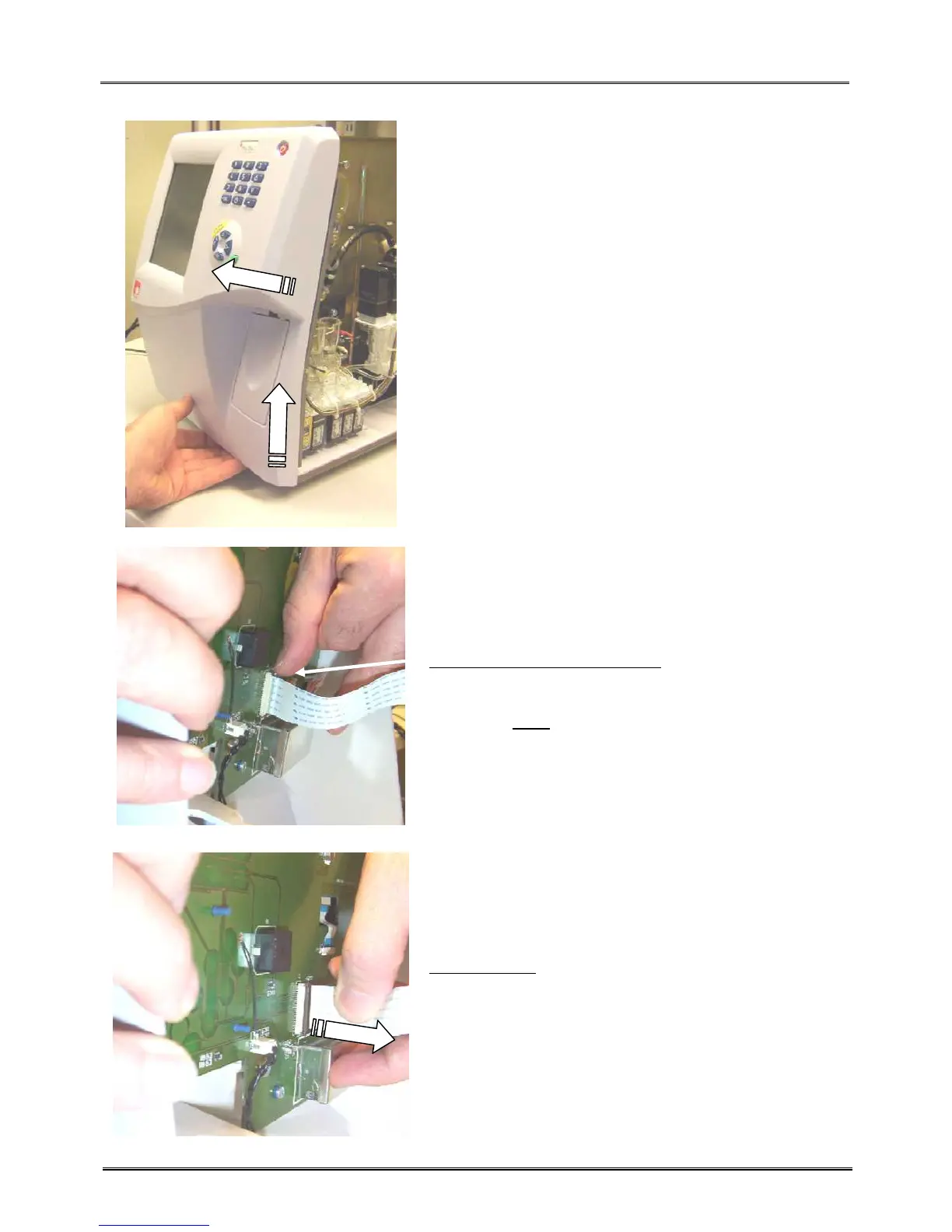

Lift the front panel and then pull it toward the front of the
instrument.
VERY CAREFULLY and SLOWLY push on the upper side of
the connector, and then push on the lower side to up the
fixing system .
This part is
VERY sensitive.
In case of brake, the complete GUI board have to be
changed.
VERY SLOWLY pull the flat cable outside the connector.
