Orphee MYTHIC 18 - Complete Syringe Module Replacement

9. REPARING
REF : M18-SM-001 Rev 02
Page 58/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18

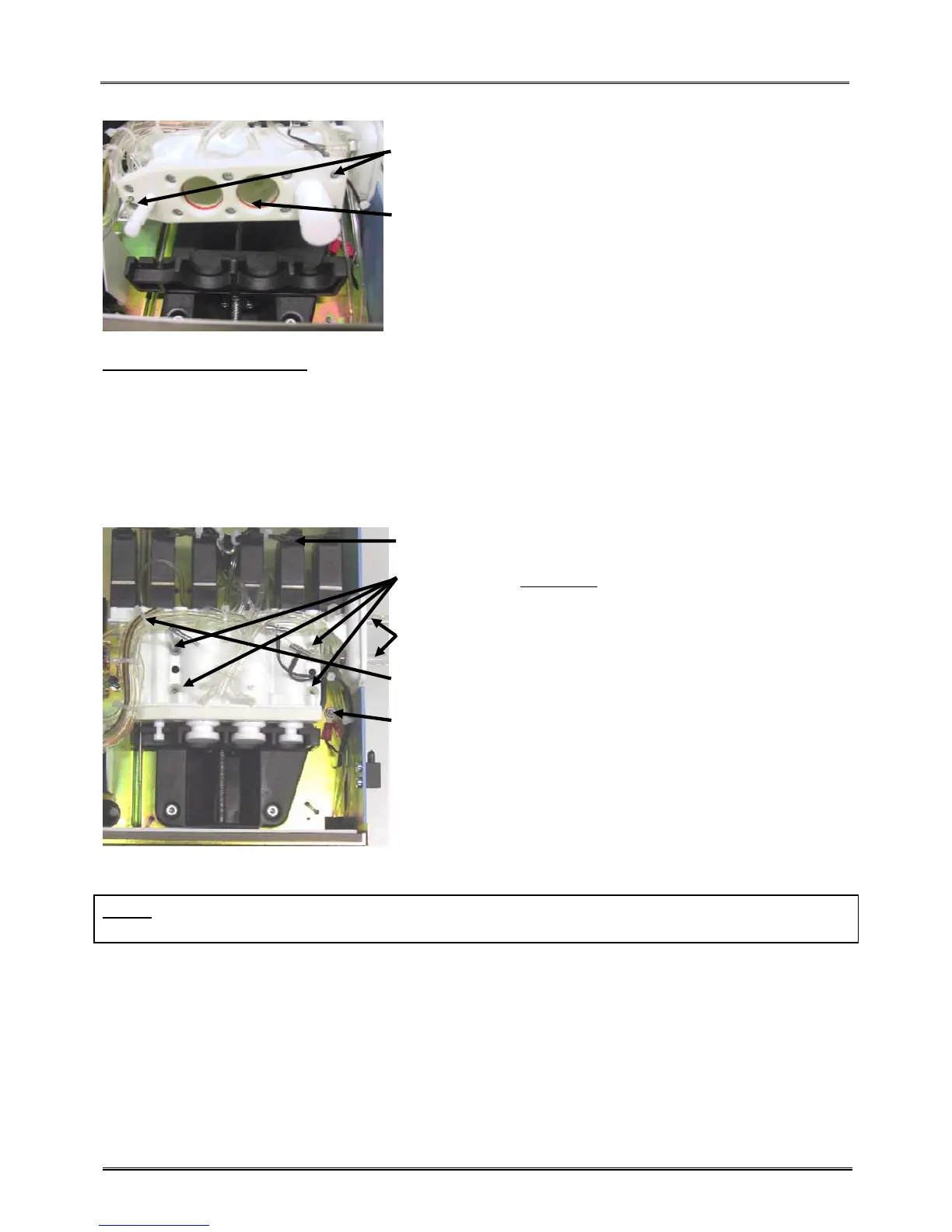

-.Unscrew and remove the eight screws which maintain the o-ring
plate.
- Remove the o-ring plate and exchange the o-rings.
REASSEMBLY PROCEDURE :
To reassemble the unit, carry out the various operations in the opposite direction.
9.4.3 Complete syringe module replacement
Before exchanging the complete syringe module, put the MYTHIC on its left side as describe above (section
9.4.2).
- Disconnect all the valves connection.
- Unscrew (but
WITHOUT dismantle them) the four screws
which maintain the syringe module.
- Remove the waste and diluent tubing.
- Cut the fixation ties of the tubing.
-.Unscrew and remove the screws which maintain the ground
fitting.
- Disconnect the tubing.
- Remove the complete syringe module.
NOTA : Take care about the tubing reconnection, if necessary, cut few millimeters (2 to 4mm) of tubing or
exchange them.
