Orphee MYTHIC 18 - CPU-PREAMPLIFIER Module

6. PARTS LISTE & BLOW UP VIEW
REF : M18-SM-001 Rev 02
Page 46/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18

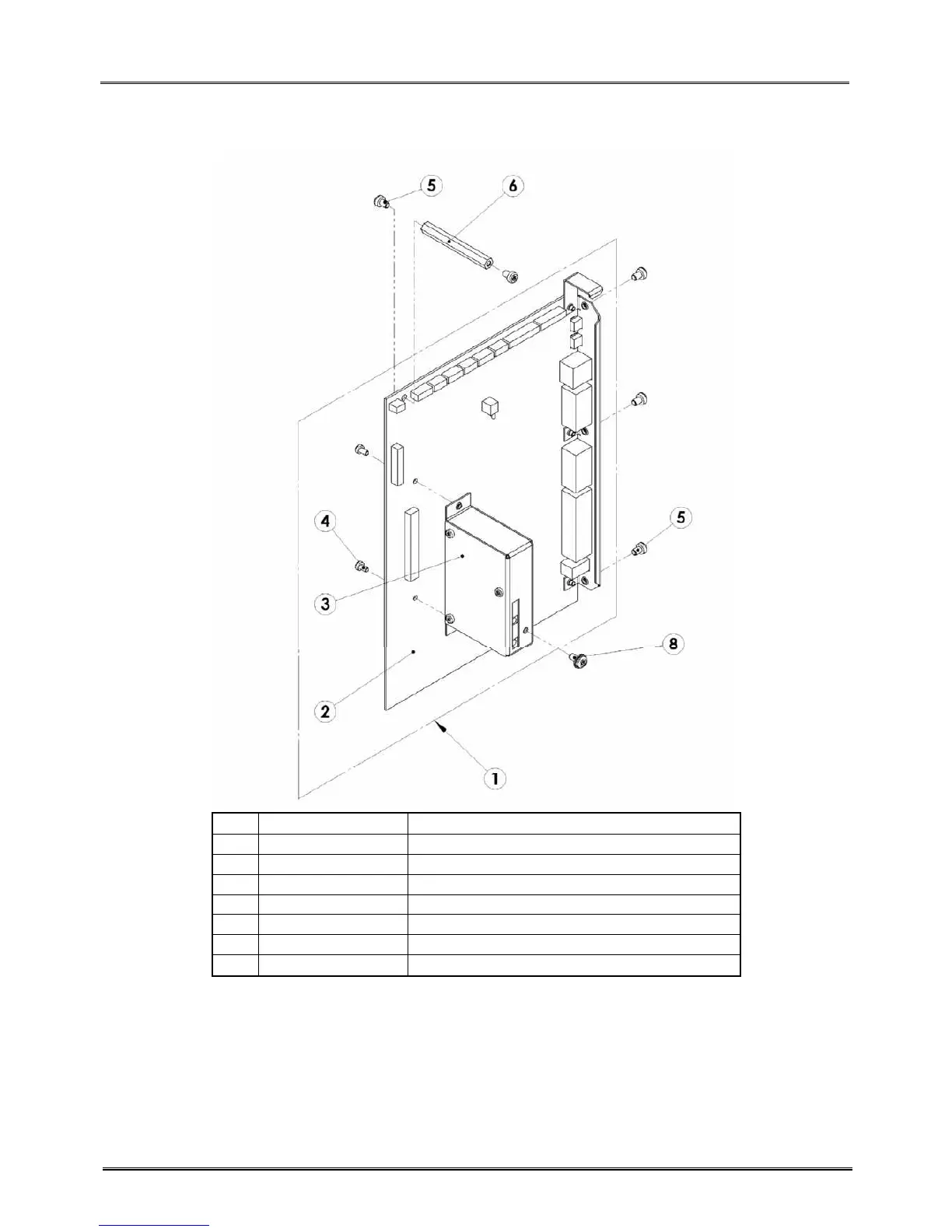

6.2.4 CPU-PREAMPLIFIER Module
Rep Part Number Designation
1
002-2001-04 Mythic 18 CPU & Preamplifier board
2
205-1001-01 Mythic 18 CPU board
3
205-1001-03 Mythic 18 Preamplifier board
4
360-0101-030 060 Screw CZX M3 x 6
5
360-0101-040 060 Screw CZX M4 x 6
6
360-6203-040 600 Hexagonal spacer FF M4 x 60
8
360-0102-040 080 Screw RLX M4 x 8
