Orphee MYTHIC 18 - Syringe Module Repair

REF : M18-SM-001 Rev 02
9. REPARING
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 57/68
9.4 SYRINGE MODULE
9.4.1 Piston greasing
Perform the piston greasing as described in the User’s Manual.
9.4.2 O-ring or piston replacement
- Before replacing the complete syringe module, drain all the
tubing :
x Remove the diluent, lysis and cleaner straw from their
bottle
x Perform a PRIME ALL (MAIN MENU / REAGENT / PRIME
ALL)
- Put the syringe in lubrication position (MAIN MENU / SERVICE
/ MECHANICS / LUBRICATE POS.)
- Switch off the MYTHIC and disconnect the power supply.
- Remove the Lysis and Cleaner bottle from their location

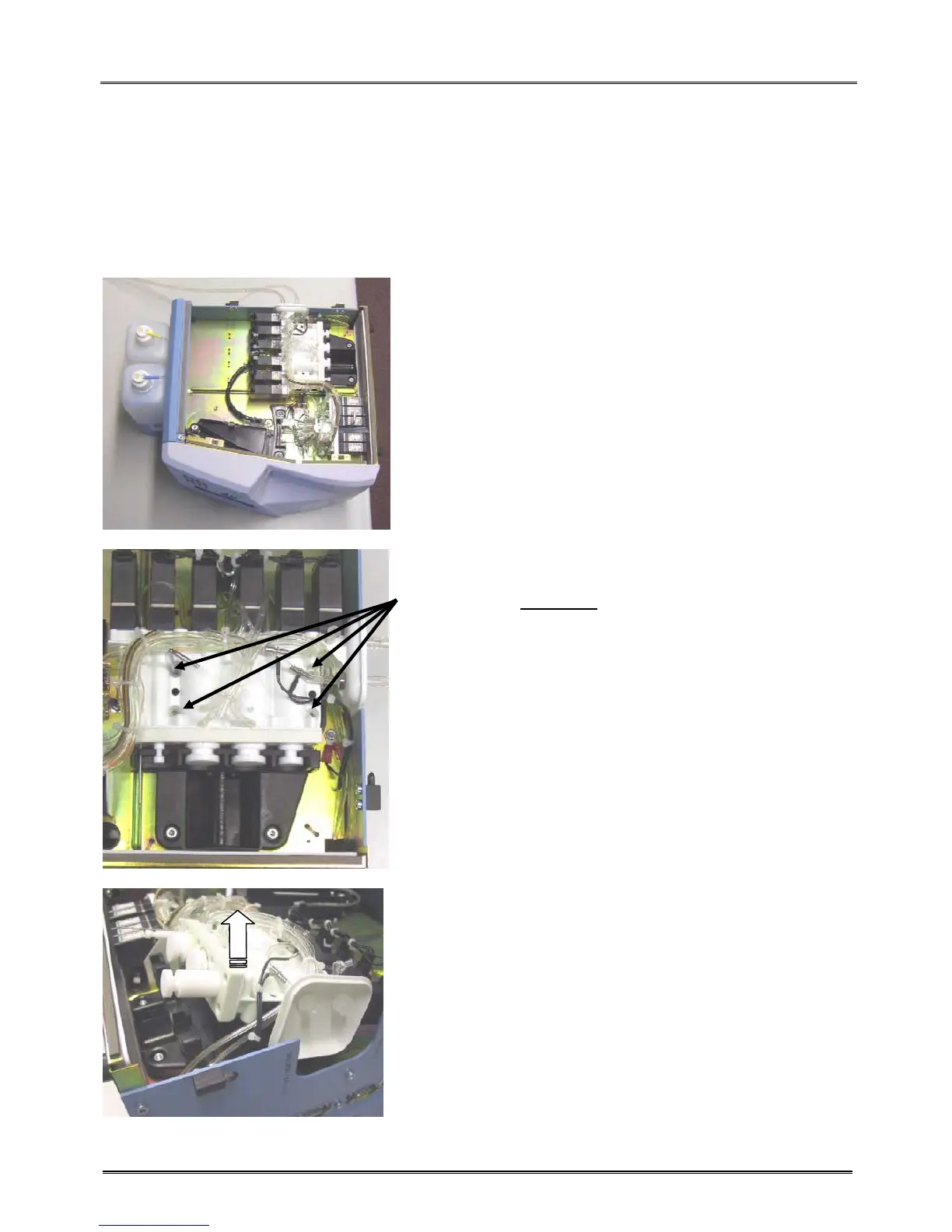

- Then put the MYTHIC on its left side.
- Unscrew (but
WITHOUT dismantle them) the four screws
which maintain the syringe module.
.
- Lift the bloc, to exit the syringe pistons from the piston
carriage.
- Exchange the piston, if needed.
