Orphee MYTHIC 18 - Sampling Module

6. PARTS LISTE & BLOW UP VIEW
REF : M18-SM-001 Rev 02
Page 42/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18

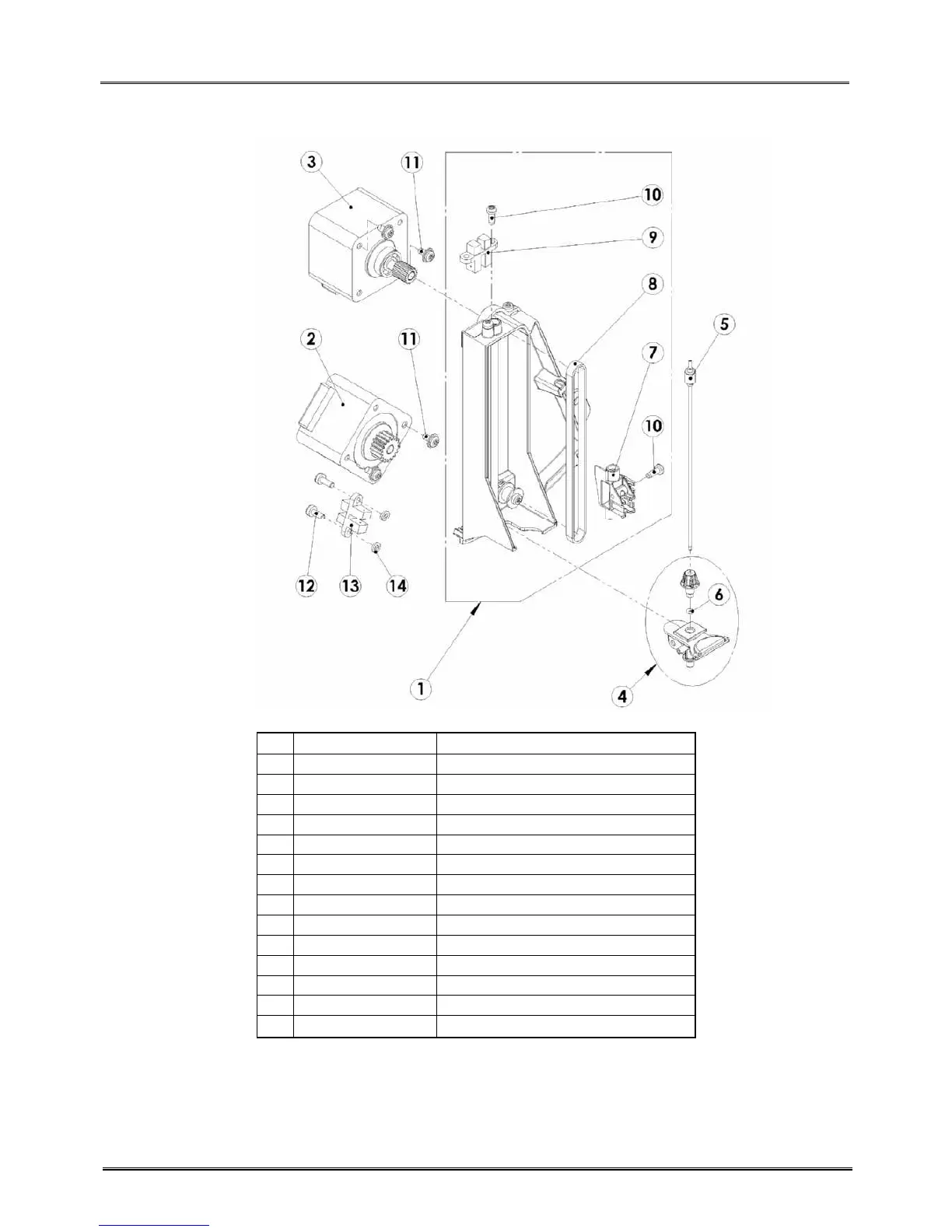

6.2.2 Sampling Module
Rep Part Number Designation
1
005-1001-02 01 Sampling module
2
005-1001-02 03 Rocker Motor
3
005-1001-02 02 Needle Motor
4
005-1001-02 04 Rinsing head
5
010-2501-02 05 Sampling Needle
6
312-0505-140 125 O-ring Ø1.4x1.25 Fluocarbon 80SH
7
010-2501-02 02 Needle carriage
8
353-0301-08 120 19 Belt pitch 2.032 (l=4.763-L=243.84)
9
005-1001-82 880 300 Needle Optical Sensor
10
363-0201-030 080 Screw K 30 x 8
11
360-0102-030 060 Screw RLX M3 x 6
12
360-0101-030 080 Screw CZX M3 x 8
13
005-1001-82 880 200 Rocker Optical Sensor
14
370-4050-030 10 Anti-loss washer Ø3 x 1
