Orphee MYTHIC 18 - Main Board Replacement Procedure

REF : M18-SM-001 Rev 02
9. REPARING
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 61/68

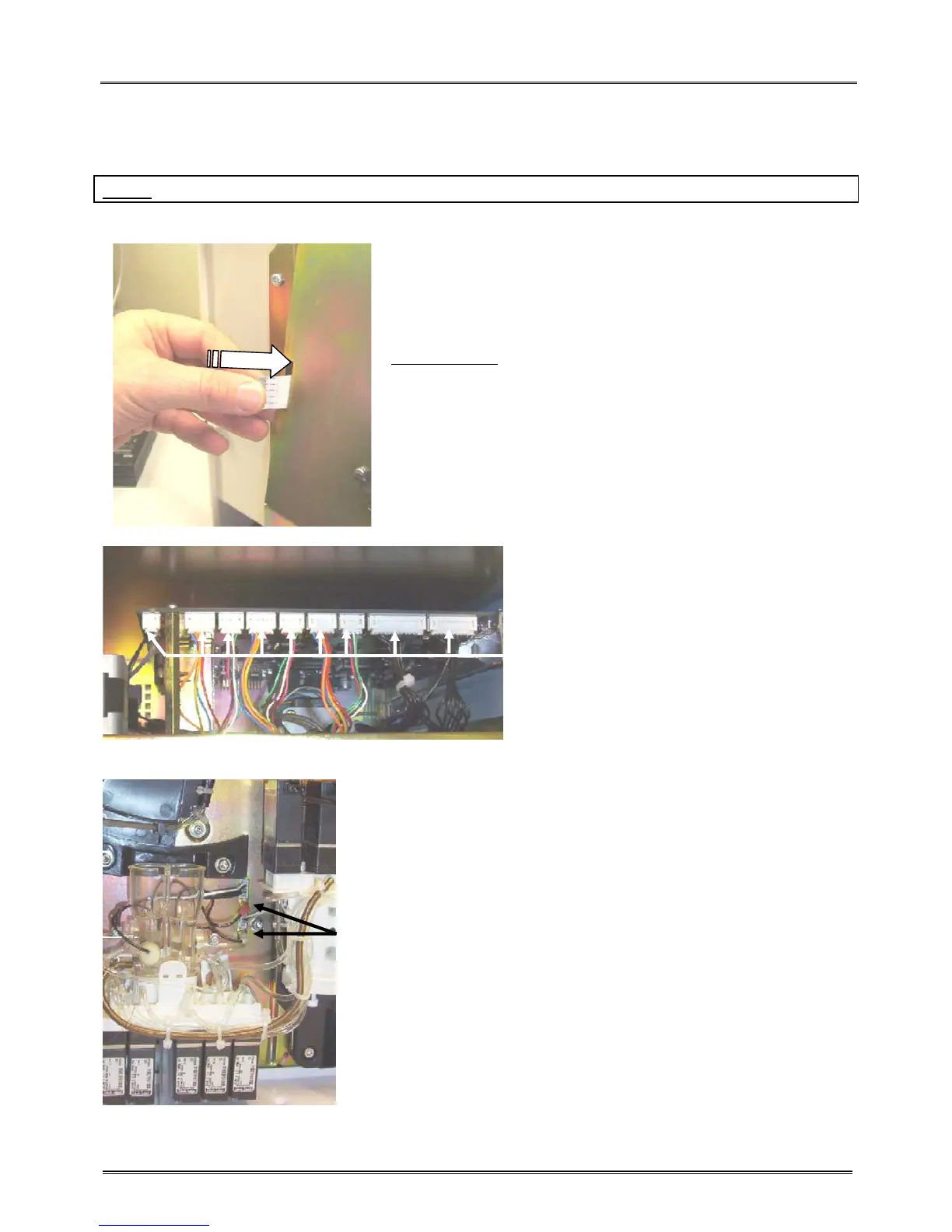

9.5.2 Main board replacement
NOTA : Before to dismantle the main board, dismantle the GUI board (see section 3.4.1).
VERY SLOWLY push the flat cable inside the window.
Remove the nine connectors located at the top
of the board
Remove the baths connection (HGB, WBC coaxial, RBC coaxial and
temperature sensor).
