Orphee MYTHIC 18 - Blow up View; Counting Module

REF : M18-SM-001 Rev 02
6. PARTS LISTE & BLOW UP VIEW
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 41/68

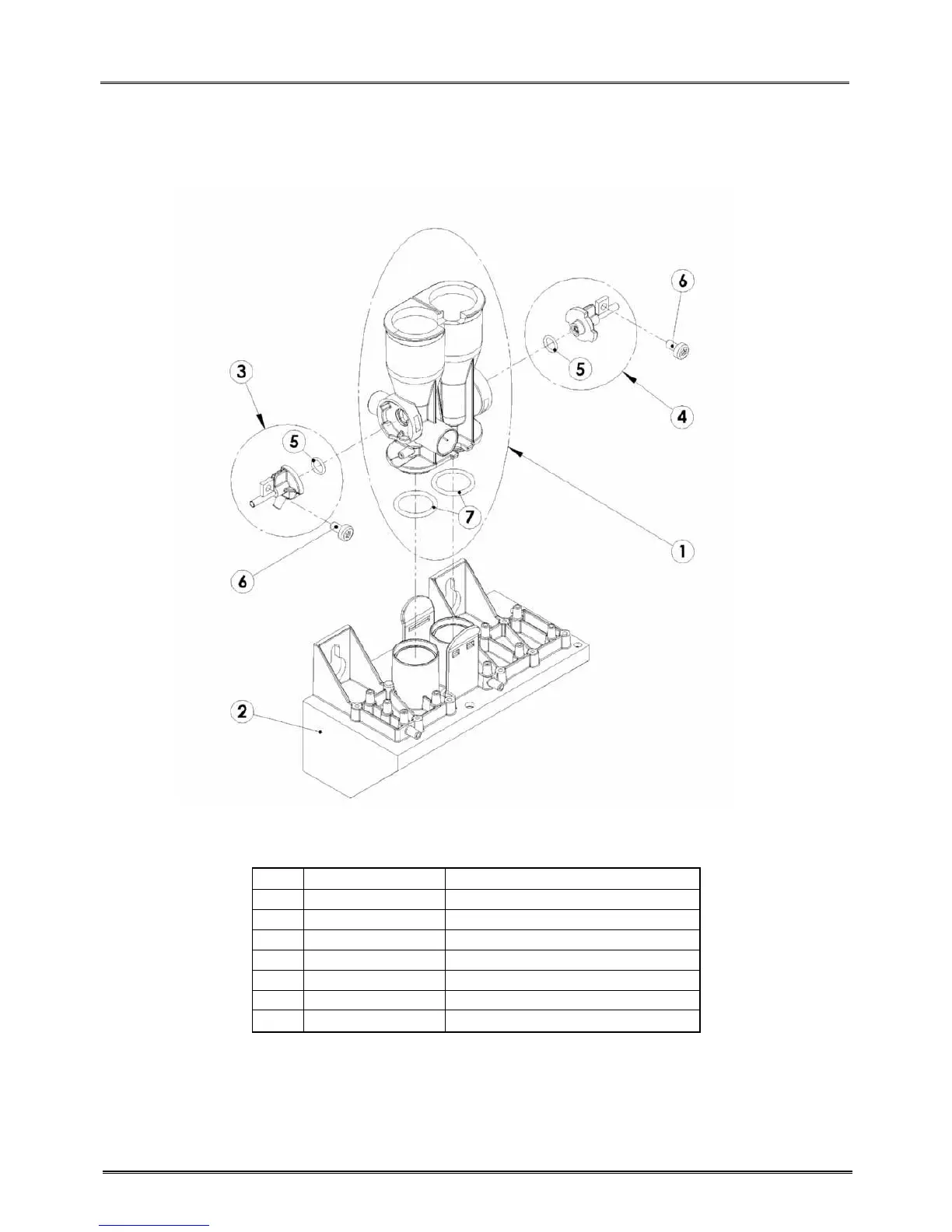

6.2 BLOW UP VIEW
6.2.1 Counting Module
Rep Part Number Designation
1
005-1001-01 01 Counting chambers
2
010-2501-01 03 Counting manifold
3
005-1001-01 02 01 WBC Counting Head
4
005-1001-01 02 02 RBC Counting Head
5
312-0505-500 100 O-ring Ø5x1 Silicone 80SH
6
360-0101-030 060 Screw CZX M3 x 6
7
312-0505-1310 160 O-ring Ø13.1x1.6 Fluocarbon 80SH
