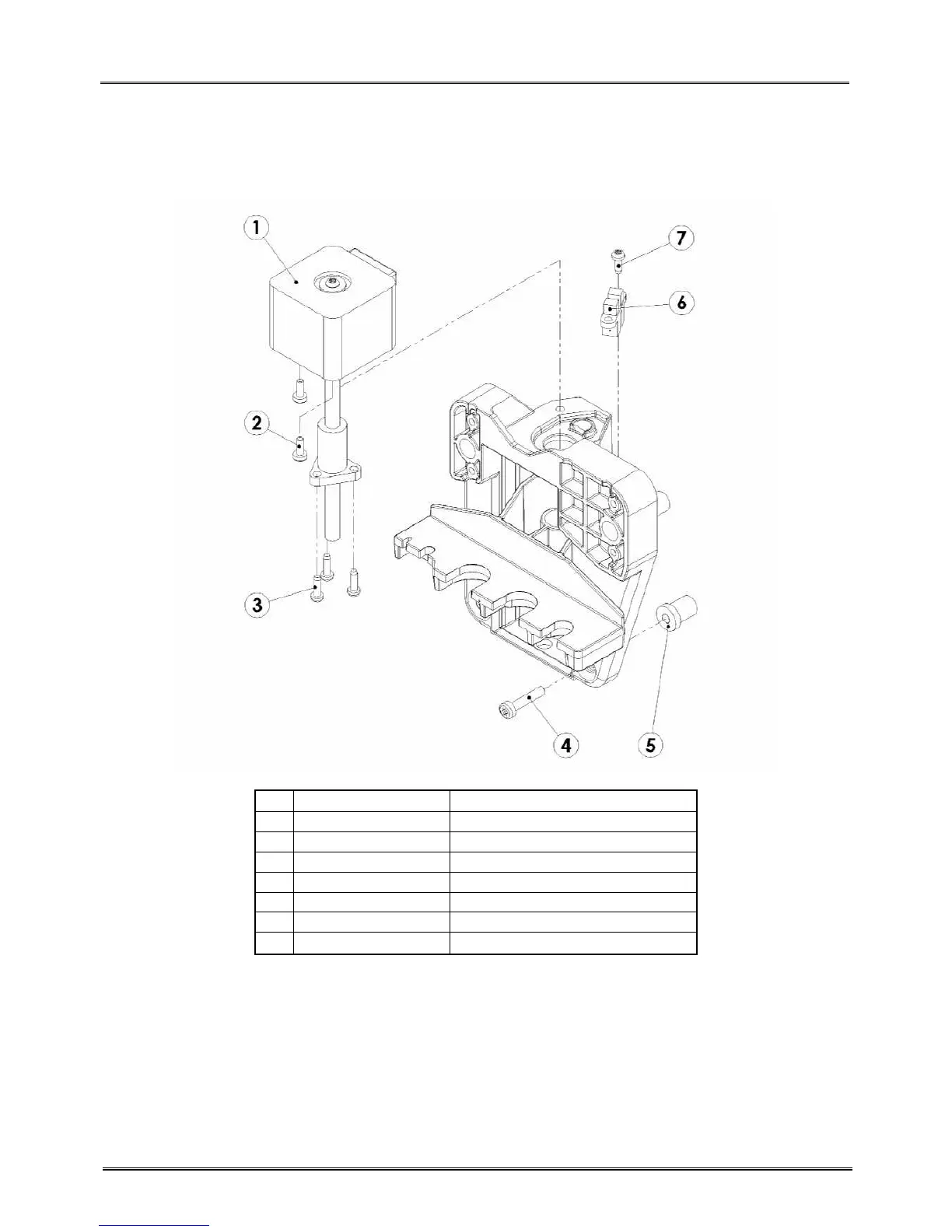

6. PARTS LISTE & BLOW UP VIEW
REF : M18-SM-001 Rev 02
Page 44/68 Copyright© Orphée SA. All Rights Reserved. MYTHIC 18
Rep Part Number Designation
1
005-1001-03 10 Syringes Motor
2
360-0101-030 080 Screw CZX M3 x 8
3
363-0201-030 100 Screw K 30 x 10
4
360-0101-040 200 Screw CZX M4 x 20
5
385-1001-04 30 Silent bloc M4
6
005-1001-82 880 250 Syringe Optical Sensor
7
363-0201-030 080 Screw K 30 x 8
