9. REPARING
MYTHIC 18 Copyright© Orphée SA. All Rights Reserved. Page 55/68

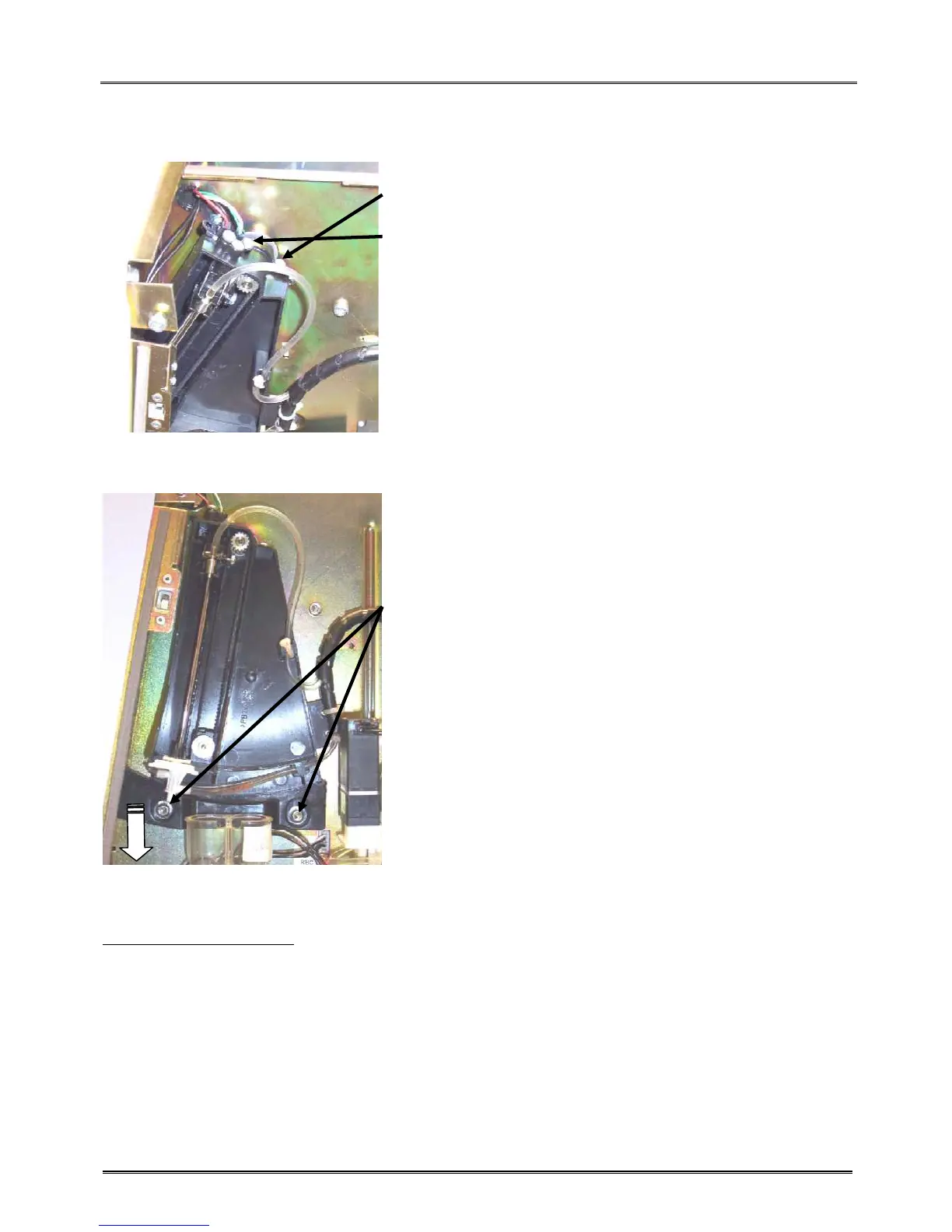

- Unscrew the rocker fixation screw but DO NOT remove it.
- Unscrew and remove the screw which maintain the IR barrier.
- Disconnect the three tubing and cut the ties.
- Unscrew the two guide screw but DO NOT remove it.
- Then slide down the guide
- Remove the complete rocker module.
REASSEMBLY PROCEDURE :
To reassemble the unit, carry out the various operations in the opposite direction.
