4 SETUP INSTRUCTIONS
inc All rights reserved
54
Adjustment according to the position of the middle 20 or 22 inches wheels :
When the position of the middle wheels has been determined (section 4.9.3),
the brake support should be repositioned (see; figure 31-B):
1. Loosen (A) screws and (B) nuts, using a 1/2" key ;
2. Slide the (D) support in the wheel axle tightening mechanism;
3. Loosen the (C) screw, using a 13 mm key, of the parking brake tightening bracket
(E) to allow a double adjustment the one with the tightening bracket (E) on the
biggest shaft of the (D) support and the one with the parking brake (F) in the
tightening bracket (E). NOTE
: The biggest shaft on the (D) support must be
placed downward as shown at figure 31-B ;
4. Tighten the entire assembly and make sure that when engaging the brake the
movement is carried out without effort ;
5. Finish this adjustment as per section 4.10.1 a).

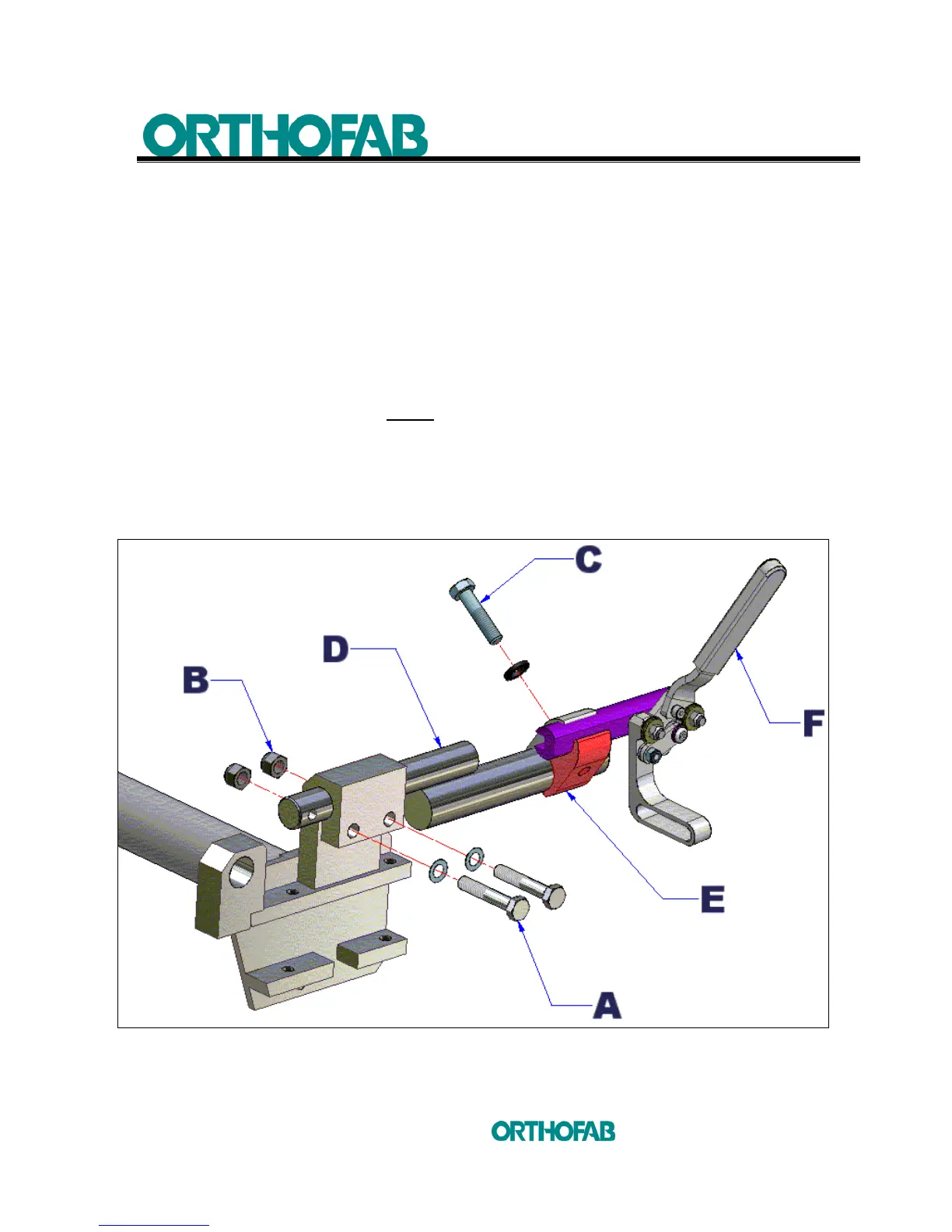

Figure 31-B : Installation of the parking brake on its support (mid-wheel propulsion).
