Panasonic CZ-RTC4 Service Manual

Optional Controller
Manual of Controller
2 - 35
2. Wireless Remote Controller
( CZ-RWSU2N, CZ-RWSD2, CZ-RWST3N, CZ-RWSL2N )
ENGLISH
17
(EN)
CZ-RWSC3 The available functions differ depending on the indoor unit being used. The
wind direction cannot be set via remote controller for any models other than those noted below. For more information, please refer to the Operating Instructions that came with your indoor unit.
4-WAY Cassette Models, 2-WAY Cassette Models, 1-WAY Cassette
Models (High Ceiling),Ceiling Models, Wall Mounted Models
Please refer to Setting the Wind Direction and Stopping Flap Swing. 8.

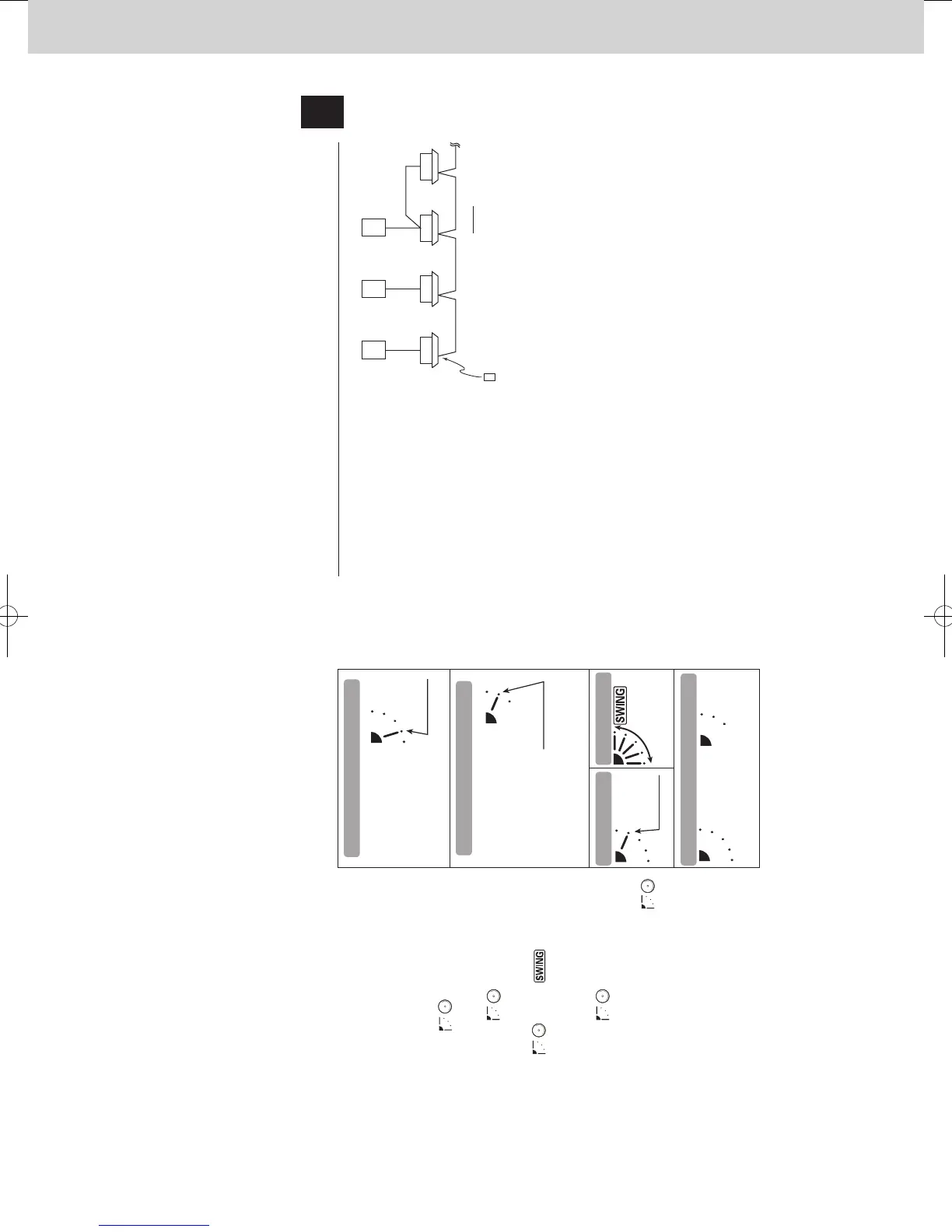

Operating Multiple In/Outdoor Units Simultaneously
Group control works well for providing air conditioning to one large room with more than one air conditioning units. • One remote controller can
operate up to eight indoor units.
• All the indoor units have
identical settings.
• Set temperature sensing
to the indoor unit (Main sensor). (See page 2.)
(Group control)
7. Adjusting the Wind Direction (Cont.)
Outdoor unit
Indoor unit
Signal line
Receiver
Wireless remote controller
00OI303000.indb17 2015/02/2016:23:06
7. Adjusting the Wind Direction
16
(EN) • Never try to manually move the  ap (up-down wind direction plate) that is
operated by the remote controller.
• When the unit stops, the  ap (up-down wind direction plate) automatically
faces downwards.
• When the unit is in heating standby, the  ap (up-down wind direction plate)
faces upwards. Also, bear in mind that the  ap starts swinging after the heating standby mode is released, but the display on the remote controller indicates Auto Flap during standby heating as well.
CZ-RWSU2N/CZ-RWSD2/ CZ-RWSL2N/For wall mounted type indoor unit (CZ-RWSK2)/ CZ-RWST3N Setting the Wind Direction While the unit is operating, every time
you press
, the direction the  ap
faces changes.
Setting Flap to Swing If you press
to set the  ap (up-
down wind direction plate) in its most downward facing position, and then press
again, is displayed
and the  ap swings automatically up and down.
Stopping Flap Swing If you press
again while the  ap
is swinging, you can stop the  ap from swinging and set it in place as desired. Thereafter, if you press
,
you can set the wind direction starting from the most upward position.
• When the unit is in the Cool or Dry
mode, the  ap cannot stop facing downwards. If you try to stop the  ap from swinging while it is facing downwards, it will continue moving until it is in the third position from the top.
In the Heat Mode
Please face the  ap (up-down wind direction plate) downwards. If it faces upwards, the warm air will not reach the  oor
level.
In the Cool or Dry Mode
Please face the  ap (up-down wind direction plate) upwards. If the plate faces downwards, condensation may form and drip from around the air outlet.
In the Fan Mode
Initial setting
In All Modes
Moves constantly
Displays with Swing Stopped
Fan/Heat modes
Cool/Dry modes
Initial setting

Initial setting
00OI303000.indb16 2015/02/2016:23:05
SM830241-00_2WAY SYS.indb 35 2015/03/26 14:55:12
