1 - 13
Optional Controller
Remote Controller Functions
1

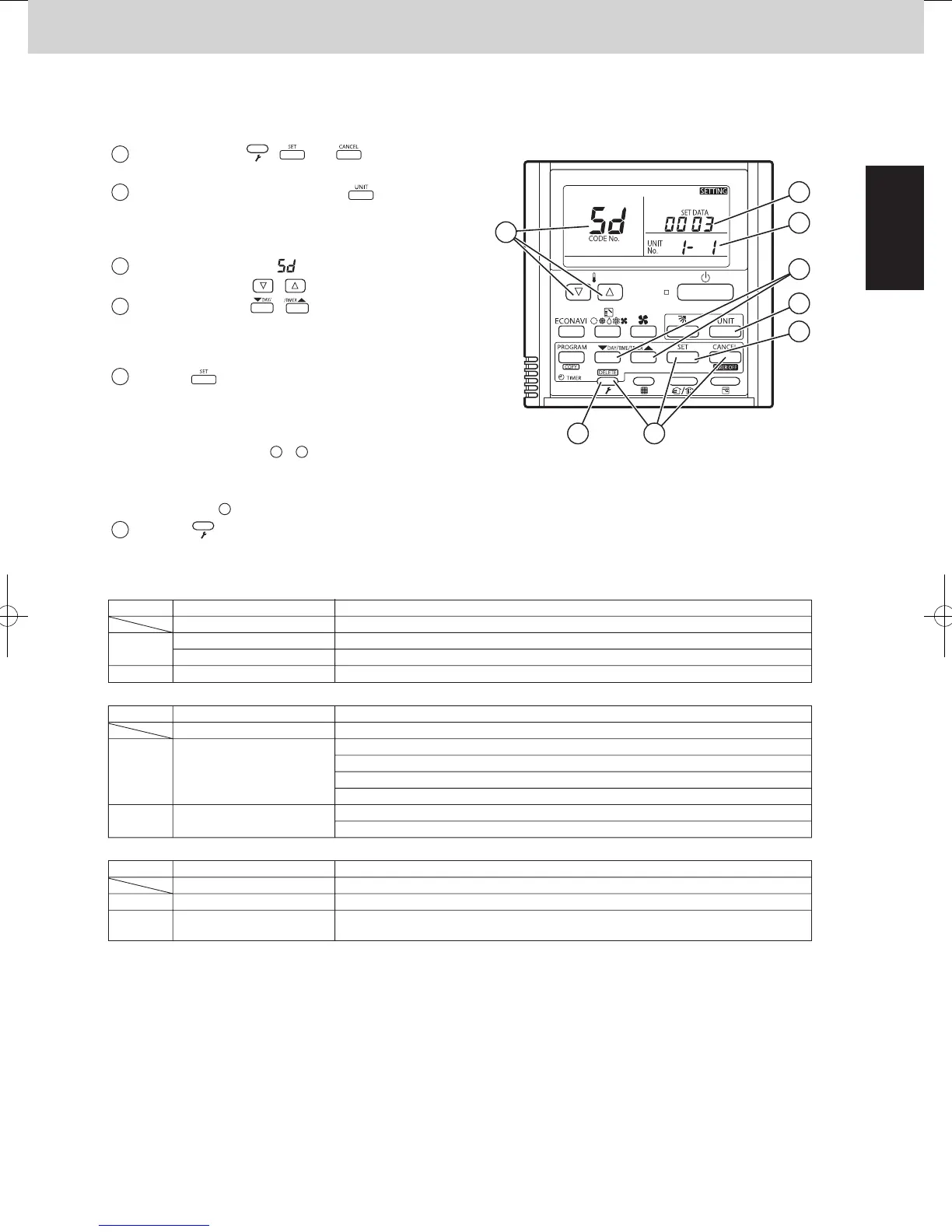

5. Detailed Settings Function
Selecting the DC fan motor tap
(when setting with the remote controller)
Setting No.
Remote controller setting data
Contents & optional parts name
0000
(3)
0003
0003
(6)
0006
0003
0003
Standard (setting at time of shipping)
Air-blocking material (for 3-way air discharge)
Air-blocking material (when a discharge duct is connected)
Air-blocking material (for 2-way air discharge)
Table 1 Table of DC Fan Motor Tap Settings (4-Way Cassette type)
Setting No.
Remote controller setting data
Purpose of use, names of accessories
0000
(1) 0001
(3)
Standard (setting at time of shipping)
High ceiling setting
Super long-life filter
Ammonia deodorant filter (65% by JIS colorimetric method)
Optical regeneration deodorant filter
High performance filter (65% by JIS colorimetric method)
Deodorant filter (65% by JIS colorimetric method)
Table 2 Table of DC Fan Motor Tap Settings (Ceiling type)
Setting No.
Remote controller setting data
Purpose of use, names of accessories
0000
(1) 0001
(3)
Standard (setting at time of shipping)
High ceiling setting
Discharge grille (purchased separately) is installed.
2-way lowered-ceiling system
Table 3 Table of DC Fan Motor Tap Settings (1-Way Cassette type)
* Failure to make this setting may result in
decreased airflow and condensation.
Stop the system before performing these steps.
1
Press and hold the , and buttons
simultaneously for 4 seconds or longer.
2
If group control is in effect, press the button
to set. At this time, the fan at the indoor unit begins
and select the address (unit No.) of the indoor unit
operating.
3
Designate the item code by adjusting the
Temperature Setting / buttons.
4
Press the timer time / buttons to select the
desired setting data.
* For item codes and setting data, refer to
Table 1 - Table 3.
5
Press the button.
(The display stops blinking and remains lit, and
setting is completed.)
* If air-blocking material is used, use the same
procedure as in steps
3 – 5 above and change
the setting for item code “62” to “0000.”
If you wish to change the selected indoor unit,
follow the step
2 .
6
Press the button to return to normal remote
controller display.
A
°
°
1
5
6
2
2
4
3
4
