Panasonic CZ-RTC4 Service Manual

1 - 12
Optional Controller
Remote Controller Functions
1

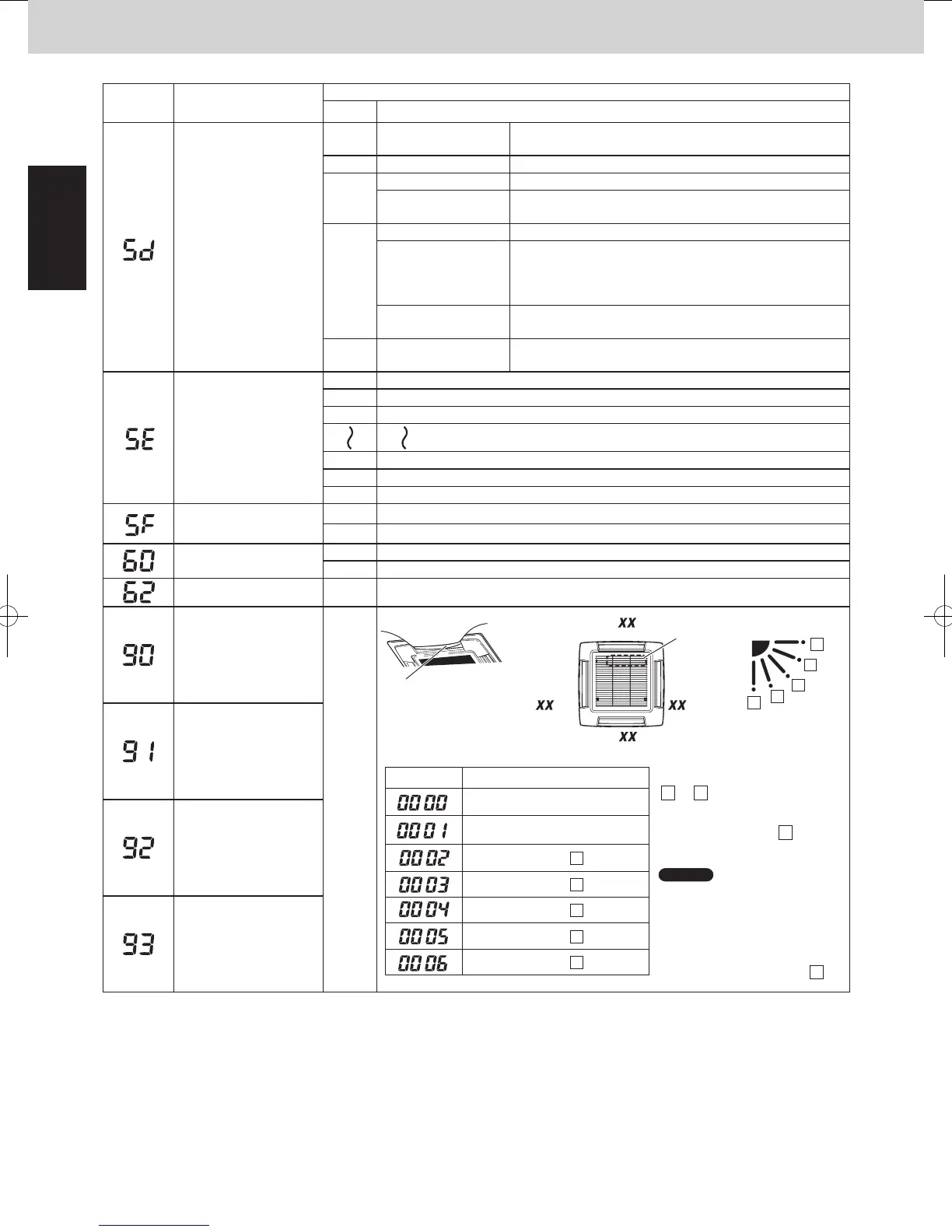

5. Detailed Settings Function
Item code Item
Setting data
No. Description
Fan tap setting
(Fan tap change in order
to prevent drop in air
discharge caused by
lter installation)
DC fan tap operating
mode
Purpose
0000 Standard Standard (setting at shipment)
0001
High ceiling use High ceiling setting 1 (with standard panel)
For low
static-pressure lter
Ultra long-life lter, oil guard panel, ammonia deodorizing
lter, optical regenerative deodorizing lter
0003
High ceiling use High ceiling setting 2 (with standard panel)
For low
static-pressure lter
(Antibacterial) high-performance lter (90%)
(Antibacterial) high-performance lter (65%)
Air-cleaning unit, air-cleaning unit + optical regenerative
deodorizing lter, deodorant (activated charcoal) lter
For air-blocking
material
For 3-way discharge, when discharge duct is connected
0006
For air-blocking
material
For 2-way discharge
Humidier ON time
(ON time per 60
seconds)
0000 No humidier output
0001 1 second
0002 2 seconds
0058 58 seconds
0059 59 seconds
0060 Continuously ON
Repeat timer switching
0000 Function disabled
0001 Function enabled
Timer function change
prohibit
0000 Function disabled
0001 Function enabled
Smudging control 0000 No smudging control
Setting the Flap
Separately
*Only for 4-way
Cassette type
0000
0001
0002
0003
0004
0005
0006
Setting the Flap
Separately
*Only for 4-way
Cassette type
Setting the Flap
Separately
*Only for 4-way
Cassette type
Setting the Flap
Separately
*Only for 4-way
Cassette type
=91
=90Flap 1
(Motor No. 4)
(Motor No. 1)
(Motor No. 2) (Motor No. 3)
Flap 3
Flap 2 Flap 4
=92
=93
Electrical
component
box
Flap position
1
2
3
4
5
Flap position during operationSetting data
Move to position 1 and stay
Without separate setting
Swing
Move to position 2 and stay
Move to position 3 and stay
Move to position 4 and stay
Move to position 5 and stay
When the flap position is set to
4 or 5 and the unit is in the
cooling or dry mode, the flap
position is moved to 3 and the
operation is started.
The flap swings during the
operation under "Setting the
Flap Separately".
At this time, the unselected flaps
are moved to the position 1 .
NOTE
Air discharge
port
Flap
(adjustment for
up-down
airflow direction)
SM830241-00_2WAY SYS.indb 12 15/04/07 10:00:32
