Chapter 5. Peripheral Equipment
Section 300~Installation

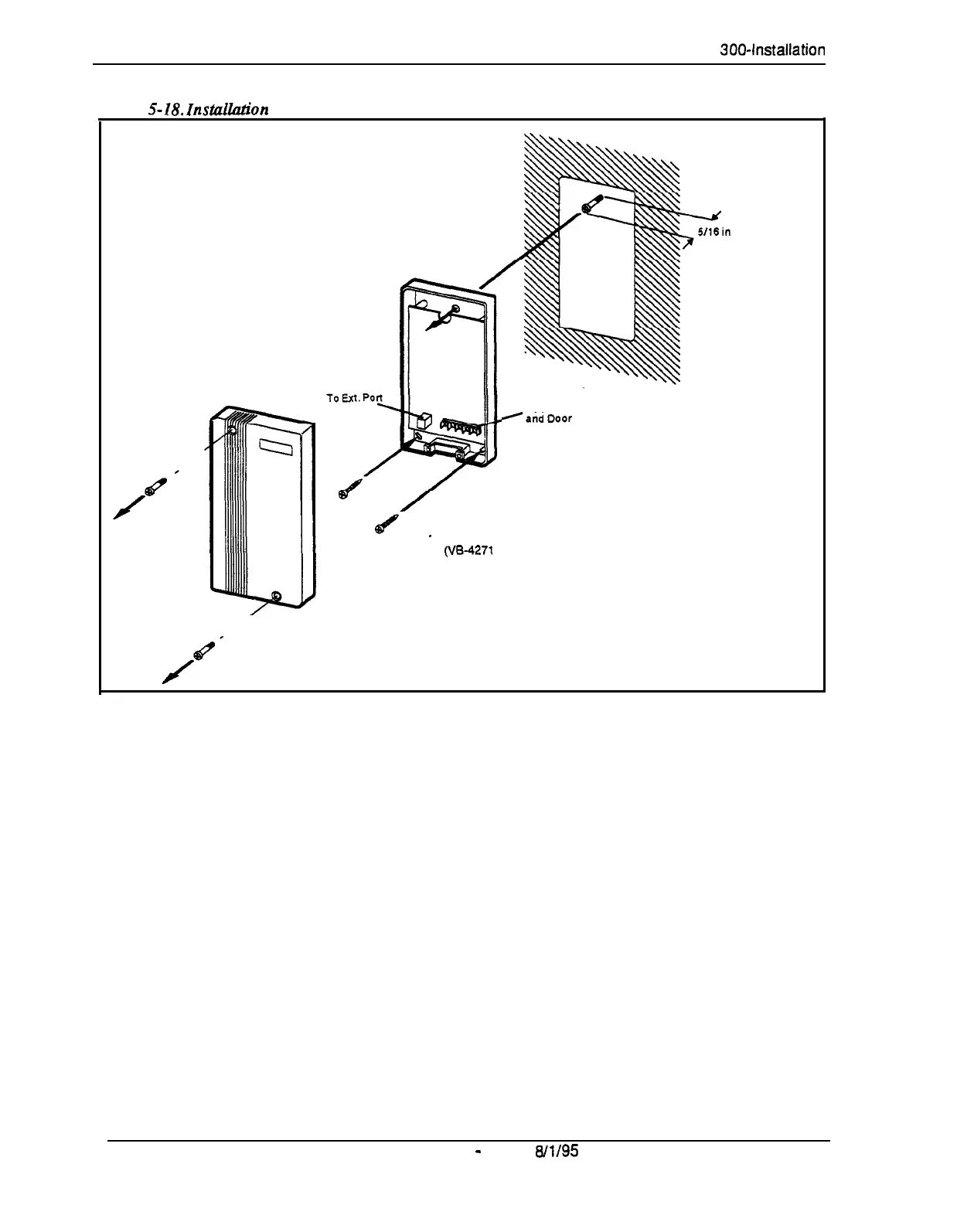

Figure 5-18. Installan’on of the door box, door opener
To Door Box
Hand OOOr Opener
Door Box Adaptor
(‘B-4277 1)
Contact Ratings for
Opener
120V AC: 0.3 amps
30V DC: 1 amp
4. Connect the extension line to the Door Box Adaptor, as shown in Figure
5-19.
5-32
DBS Manual - Issued 8/l/95
DBS-70-300
