Panasonic DBS 40 - Key Phone Wall Mounting

3emon yuu-lnsraiiatlon
Ke y Pho ne Wa ll Mo unting
Gnapter 3. Cabinet Installation
DBS key phones can be modified for wall mounting by reversing the wall-
mount adaptor on the bottom of the phone. The wall-mount adaptor includes a
small hole for attaching the phone to a screw inserted in the wall.
1. Place the bottom edge of the telephone on a desk or other hard surface.
2. Press the wall-mount adaptor down until it detaches from the phone
(Figure 3- 11).

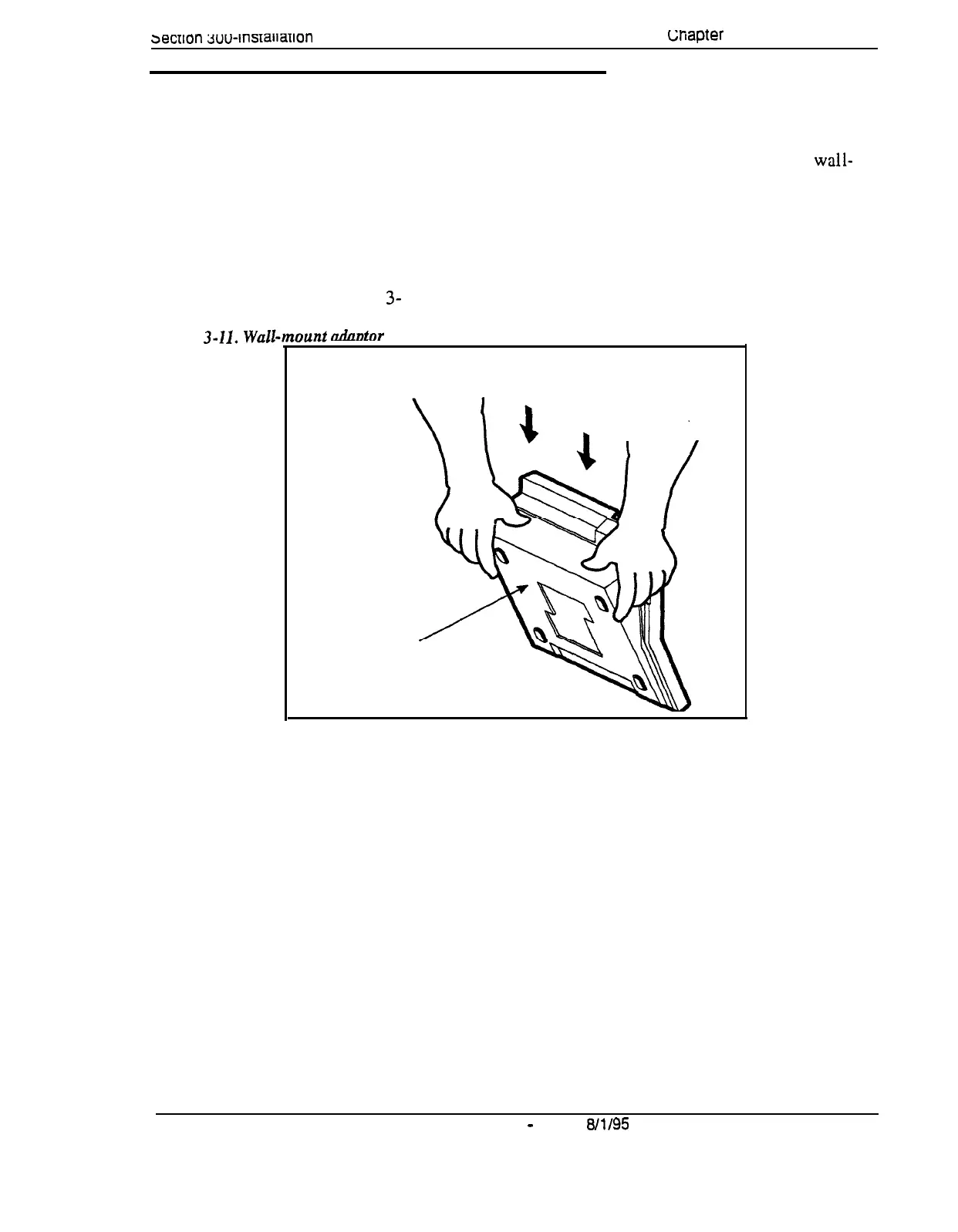

Figure 3-11.
UdflDtO?’
removal
Wa ll- Mo unt
Ada pto r
DBS-70-300
DBS Manual
- Issued 6/l/95
3-l 3
