Chapter 3. Cabinet Installation
Section 300~Installation
Installation for the DBS 40
1. Place one battery in the top tray of the battery compartment, the other
battery in the bottom tray.

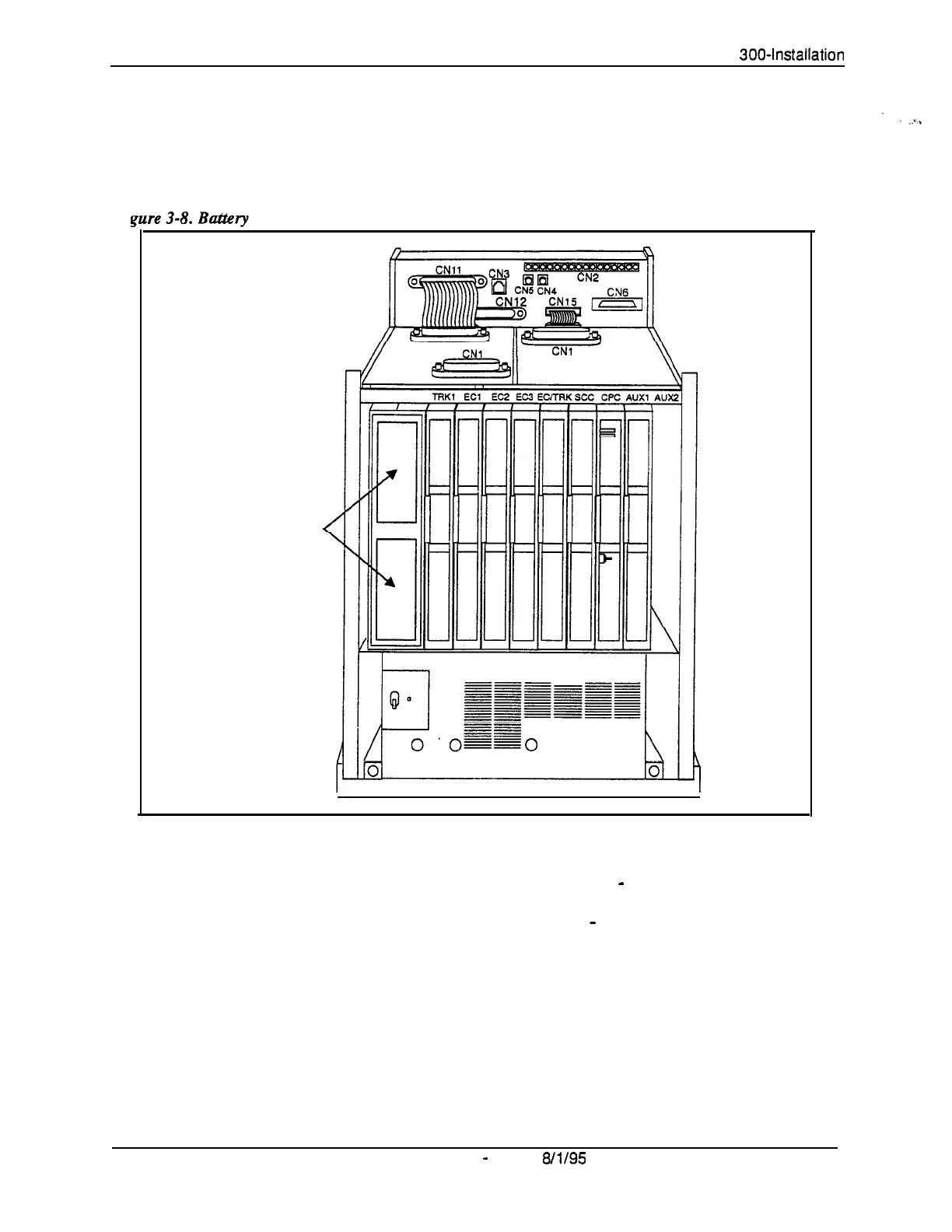

Fi,
location. DBS 40
Batteries
2. Connect the positive cable (red) to the + terminal of the top battery.
3. Connect the connecting cable (white) to the - terminal of the top battery.
4. Connect the negative cable (blue) to the - terminal of the bottom battery.
5. Connect the connecting cable (white) from the top battery to the +
terminal on the bottom battery.
3-l 0
DBS Manual
- Issued 8/l/95
DBS-70-300
