Section
300~Installation
Chapter 6. Double-Cabinet Systems
Double-cabinet insW ation
4.
Connect two 24V power supply cords from the CBL-S card to the 24V
and GND terminals on CN2 of the Connector Panel of the slave cabinet.

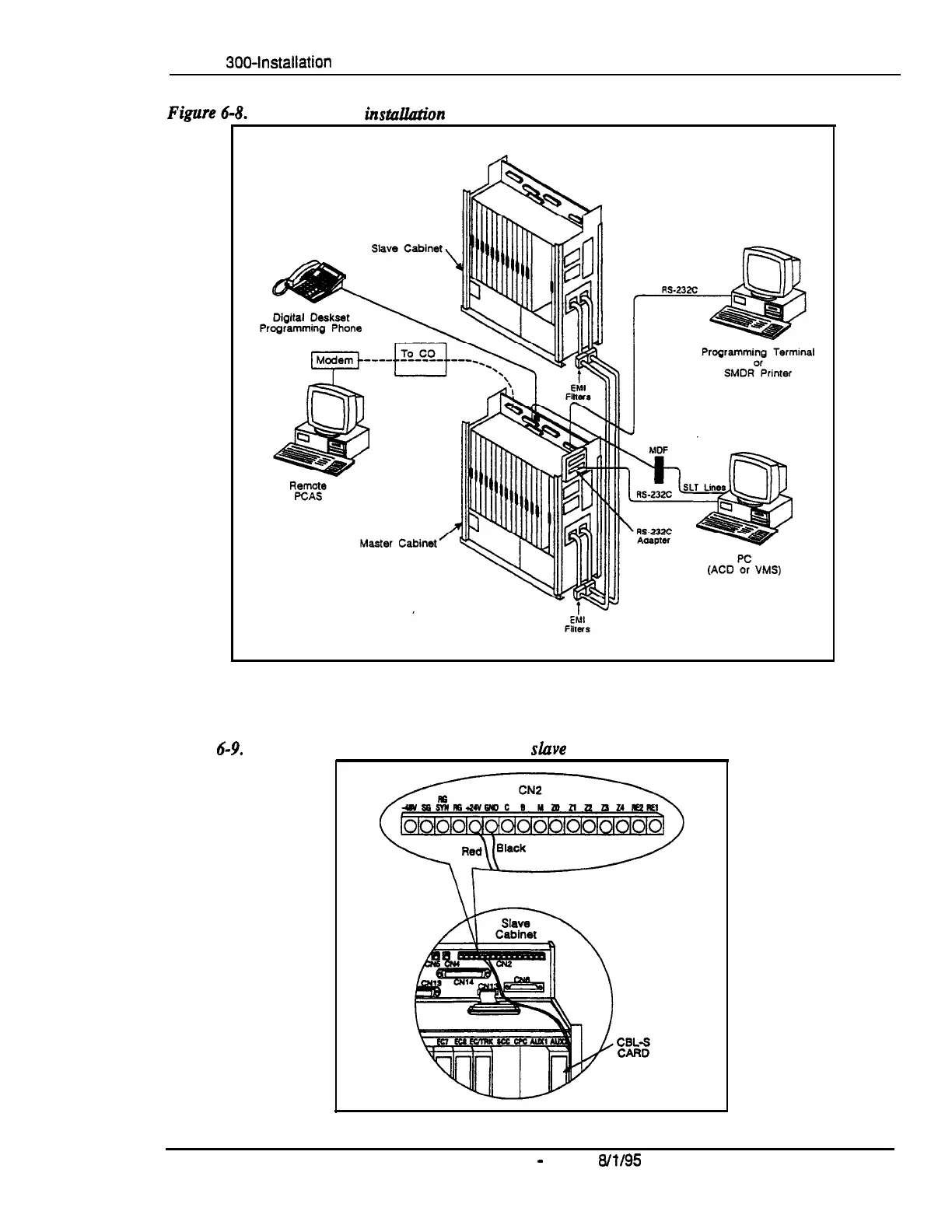

Figure
6-9.
CBL-S to Connector Panel connection,
si’uve
cabinet
DBS-70-300 DBS Manual
-
Issued
6/t/95
6-11
