Section 300~installation
Chapter 3. Cabinet Installation

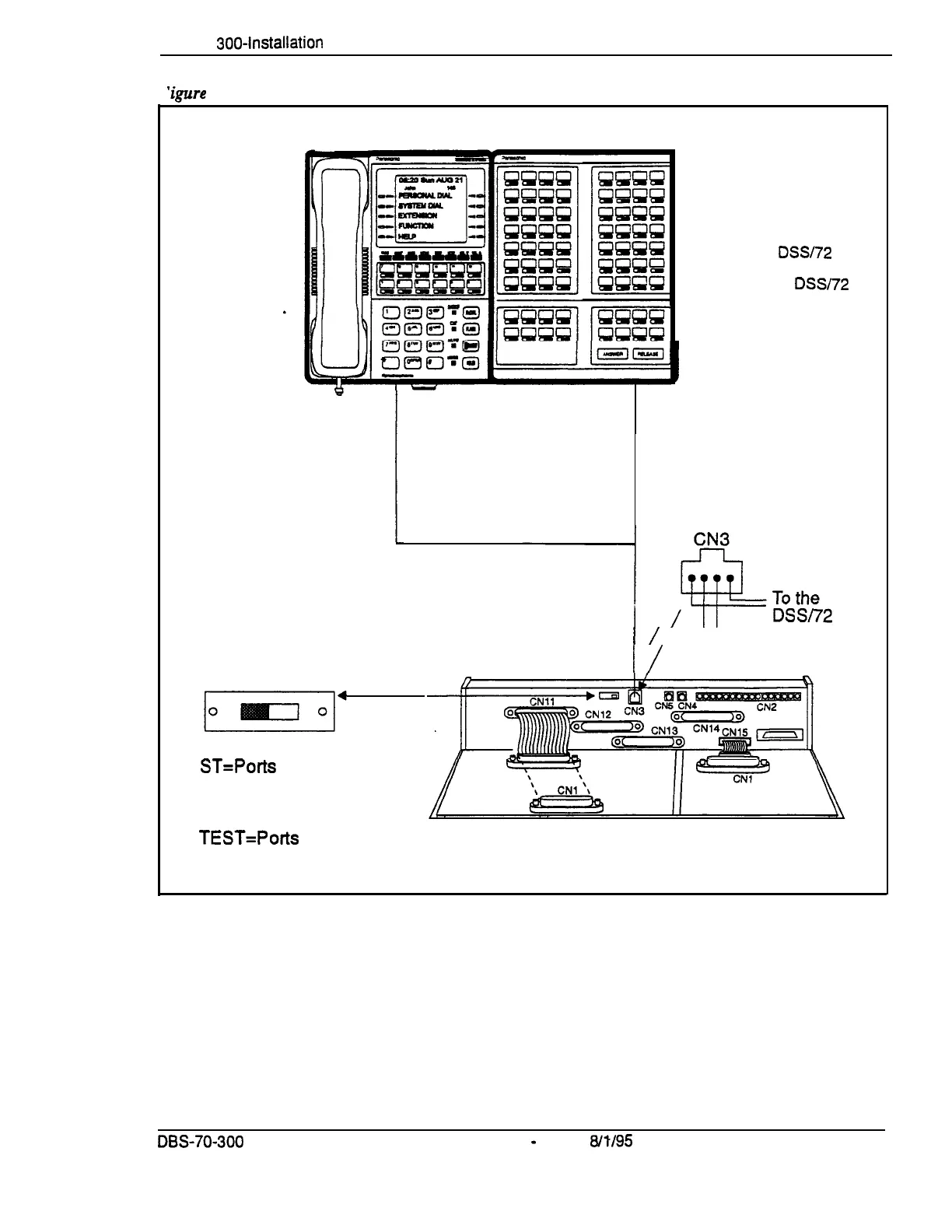

‘igure 3-18. Test telephone connection
Test Phone
DSS Console
SW1
TEST=Ports 7 and 8
are connected through
CN 3
Note: Port 7 must be
assigned as extension
101 and the
DSS/72
assigned as telephone
type 13 for the DSW72
to operate.
Two-Conductor
Cable (Port 7)
Two-Conductor
Cable (Port 8)
ST-TEST
ST=Ports 7 and 8
are connected through
the MDF
1 / To the
I/
telephone
DBS-70-300
DBS Manual
- Issued 8/l/95
3-19
