300~installation
Chapter 4. Trunks and Lines
4.
Use a standard
50-pin
cable to connect the extensions from the MDF to
the appropriate extension connector. (Refer to Tables 4-20 through 4-22
for extension pinouts.)
5.
If you are installing a DBS 40 system, attach the
EMI
filter to the
amphenol cable as shown in Figure
4-15.

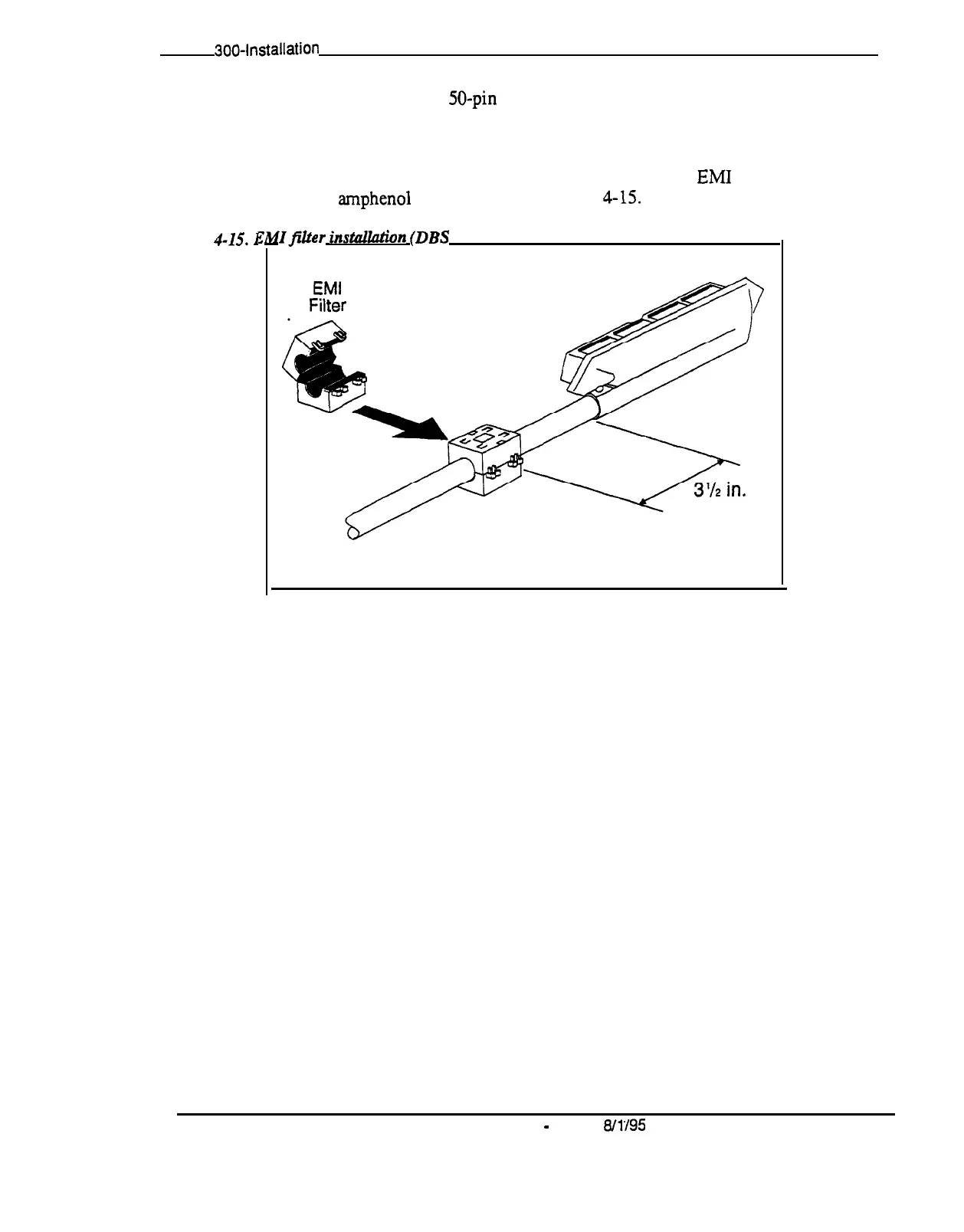

Figure
4-15.1
Trfilter
instai~on
(DBS 40 only)
DBS-70-300
DBS Manual
-
Issued
W/95
4-39
