Section 700 - Operation Chapter 3. System Features
576-50-700 DBS 576 (USA) issued September 2001 3-37

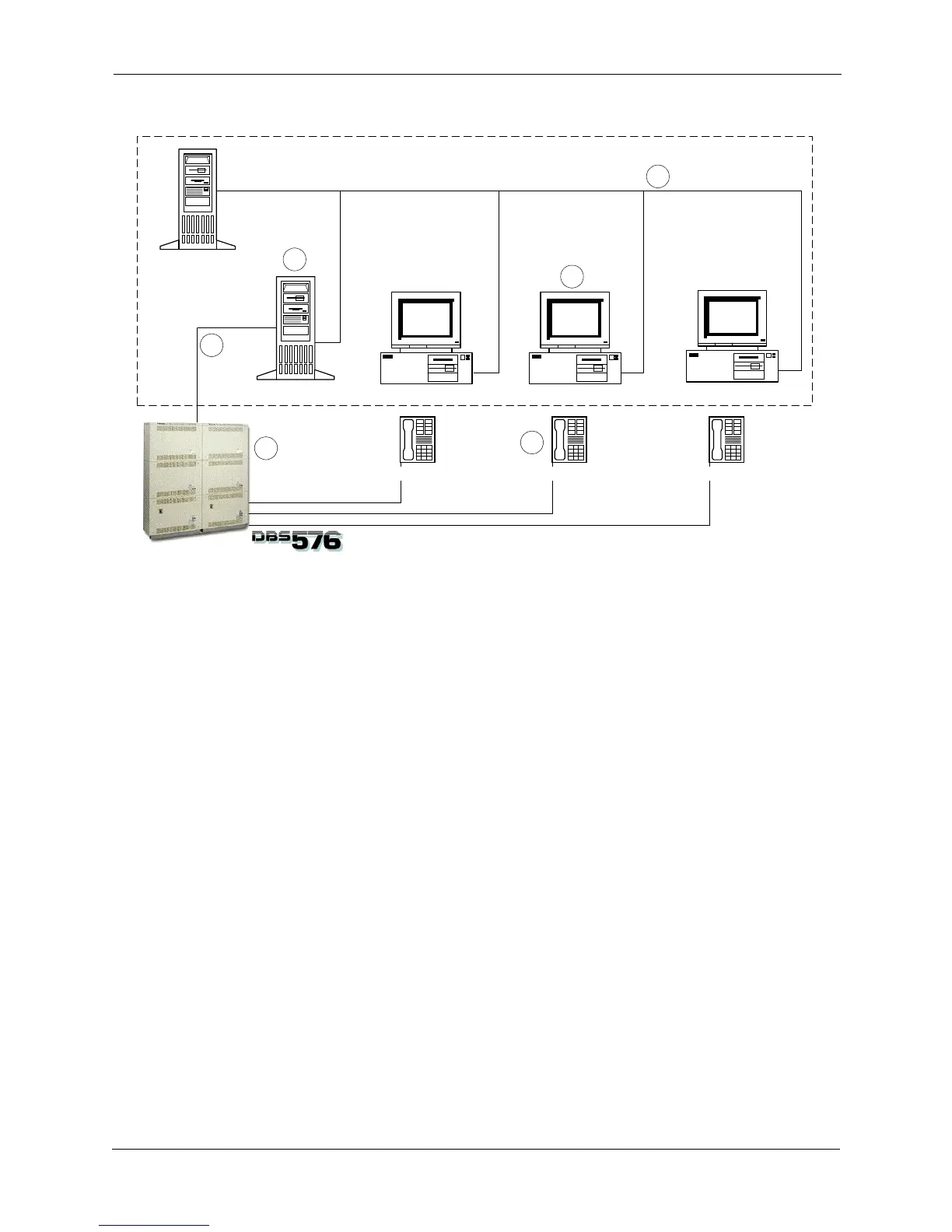

Figure 3-1. LAN TAPI system
For example, a user at PC (1) selects the “Dial” function from the TAPI-compliant
Personal Information Manager (PIM). The operating system routes this request over
the LAN (2) to the main Telephony Server (3), which translates and forwards the
request using Panasonic’s CT-API Protocal over a serial connection (4) to the DBS
576 (5). The DBS 576 then places the call from the user's telephone (6). The entire
process is completed quickly and automatically once invoked by the user.
Hardware Requirements
• Windows NT network
• Telephony Server connected to the network
• Panasonic TSP software installed on the Telephony Server
• PC (Windows 95/98 or NT operating system)
• Supported TAPI application
Related Programming
•See Section 575 - LAN TAPI Installation
Considerations
•N/A
User PC
Telephony Server
Office LAN (local area network)
RS232
serial
connection
Telephone system wiring
1
2
3
4
5
6
User PC
User PC
Telephone Telephone Telephone
Primary
Domain Controller
(PDC)
Network Domain
