DP-3510/3520/3530/4510/4520/4530/6010/6020/6030

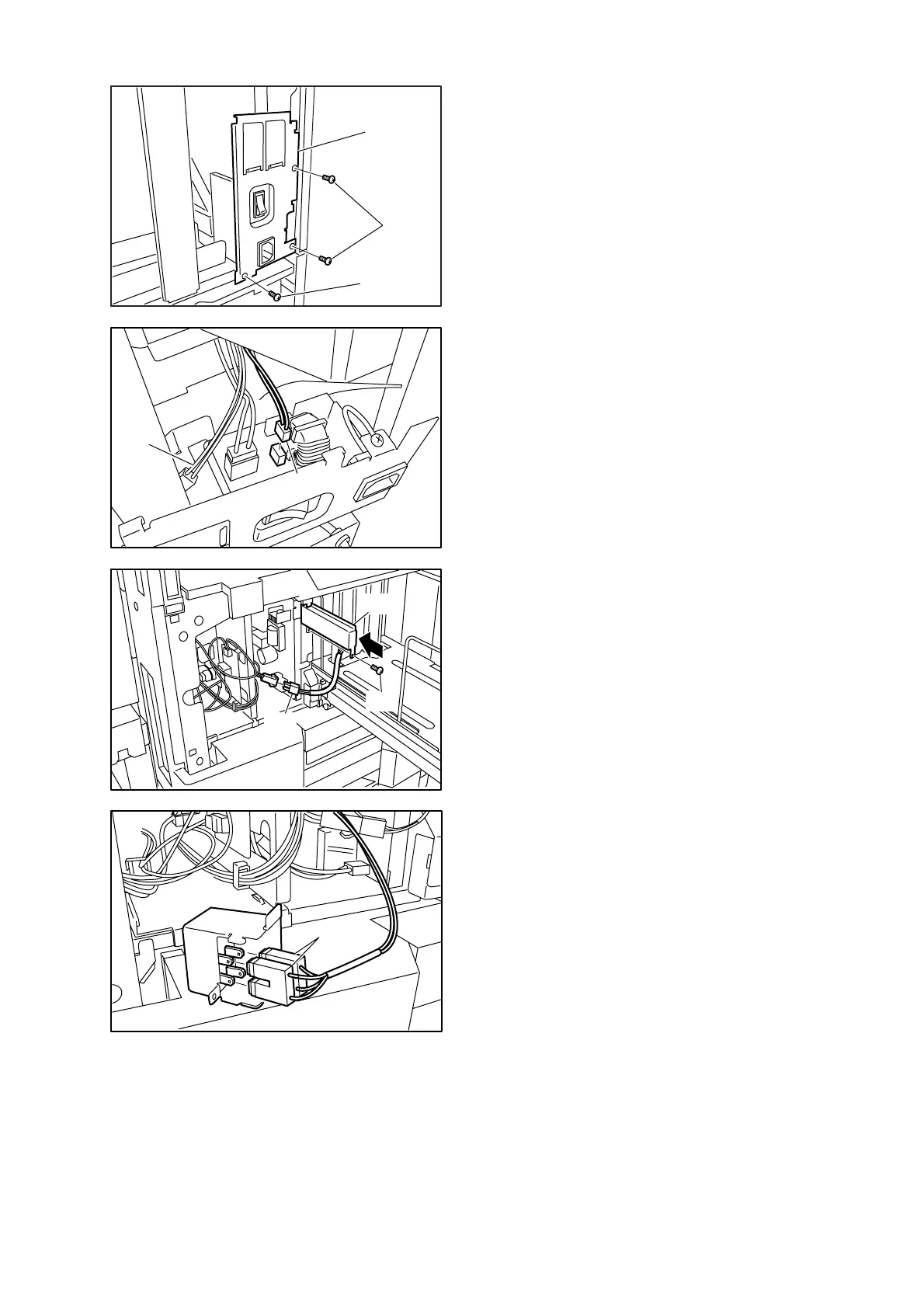

(69) Remove 3 Screws.
(70) Remove the NFL PC Board Assembly.
(71) Connect the RLB Harness to CN134 on NFL PC
Board.
(72) With the 1st Paper Tray pulled out, install the
Heater Assembly as illustrated.
(73) Secure the Heater Assembly with 1 Screw.
(74) Connect the Heater Assembly to DHT Harness.
(75) Connect the Harness to Heater Switch
Assembly.
(69)
(69)
(70)
(71)
Used for Japanese
models only.
(72)
(73)
(74)
(75)
