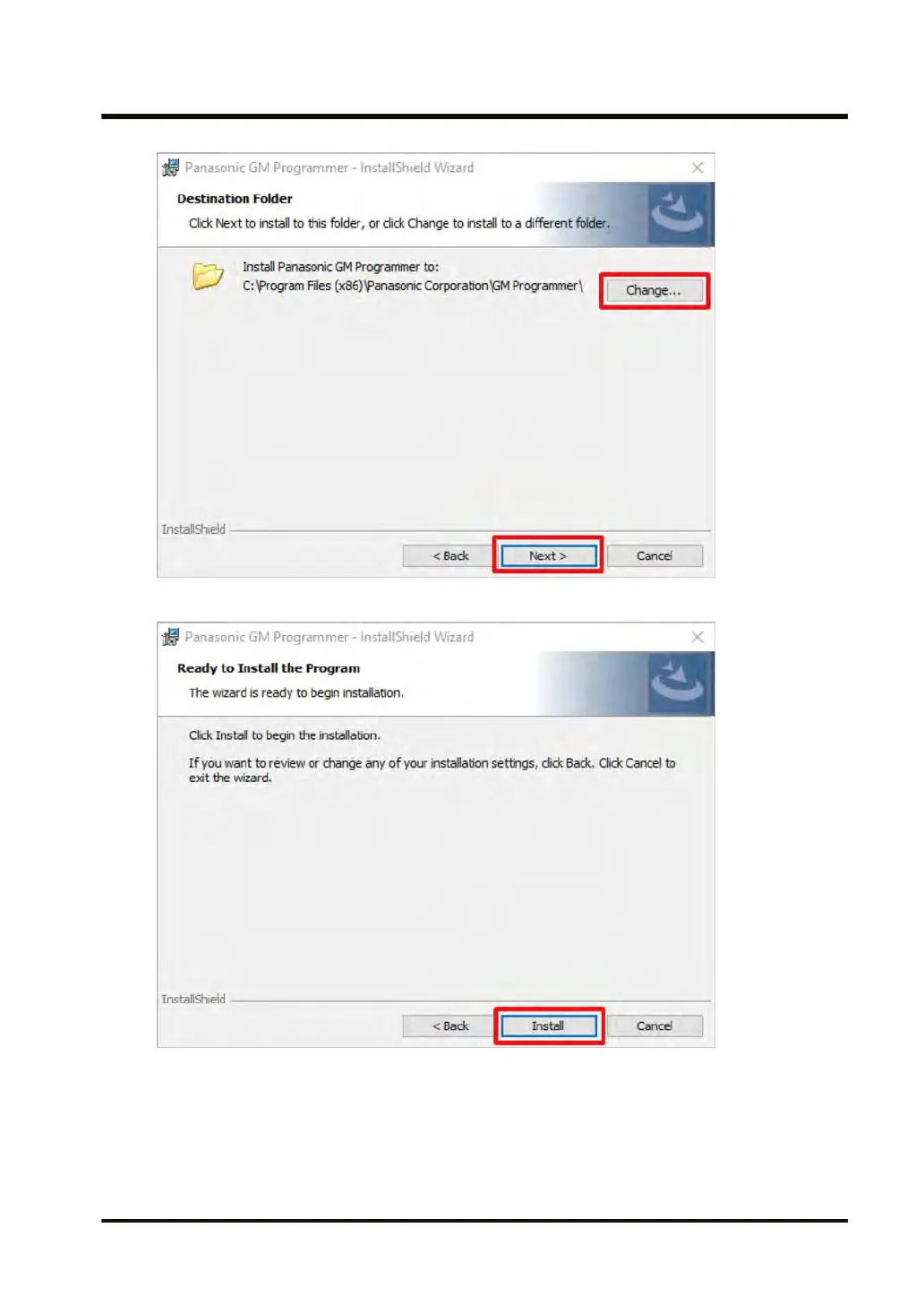

6. The window below will be displayed. Click

[Install] to start the installation.

7. The following window will be displayed while the installation is in progress.

6.2 Installation and Uninstallation

WUME-GM1ETCSU-01 6-5
