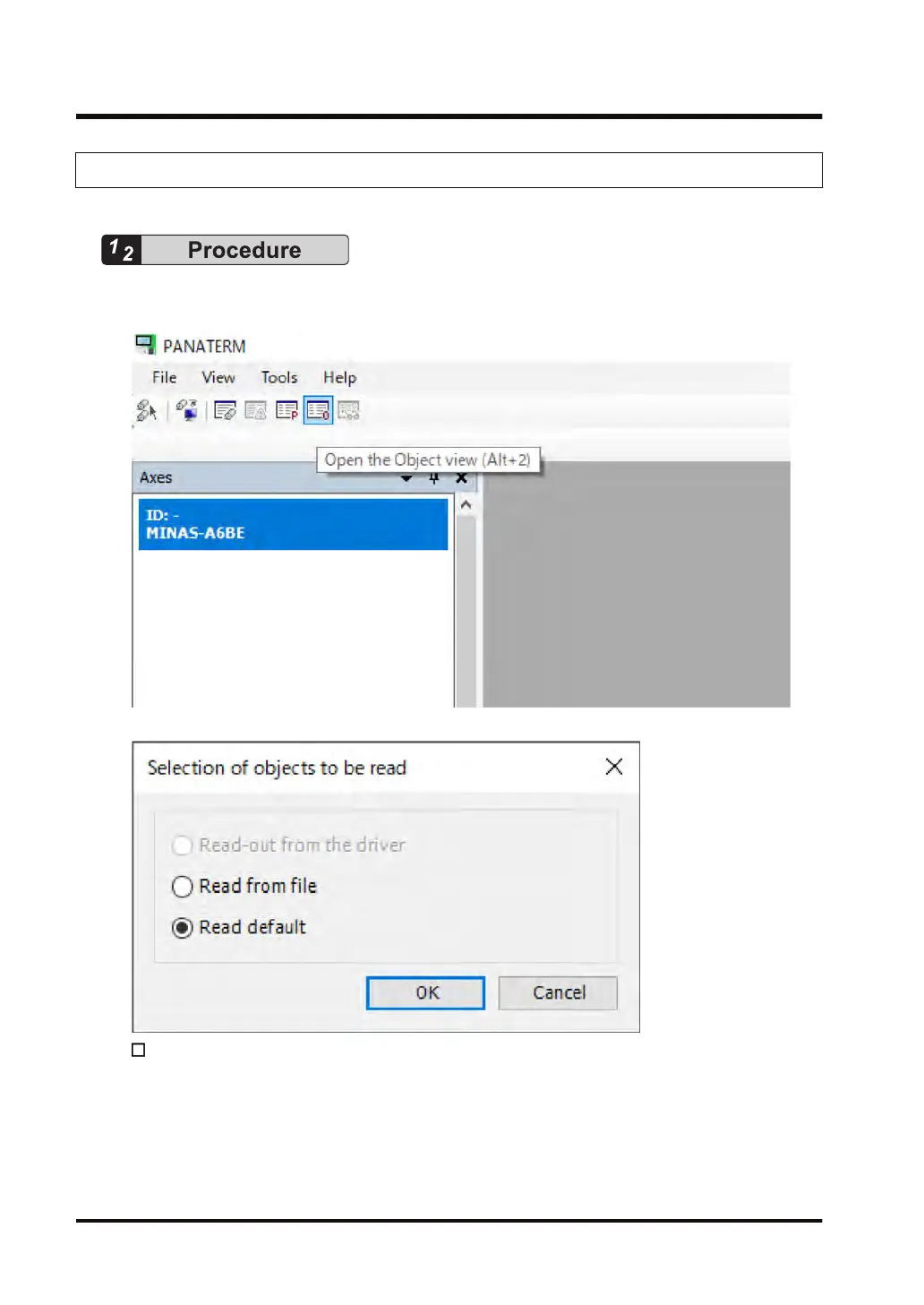

7.5.2 Setting Objects
1. From the menu bar on the main pane, select V
iew>Object. Alternatively, on the toolbar,
click the "Open the Object view" icon.
The "Selection of objects to be read" dialog box will be displayed.
Read-out from the amplifier.
Communicates with the connected servo amplifier and reads objects set in the servo
amplifier
.
If this mode is selected, object values will be reflected in the servo amplifier as soon as
they are changed.
7.5 Object Window
7-16 WUME-GM1ETCSU-01
