Panasonic GM1 Series

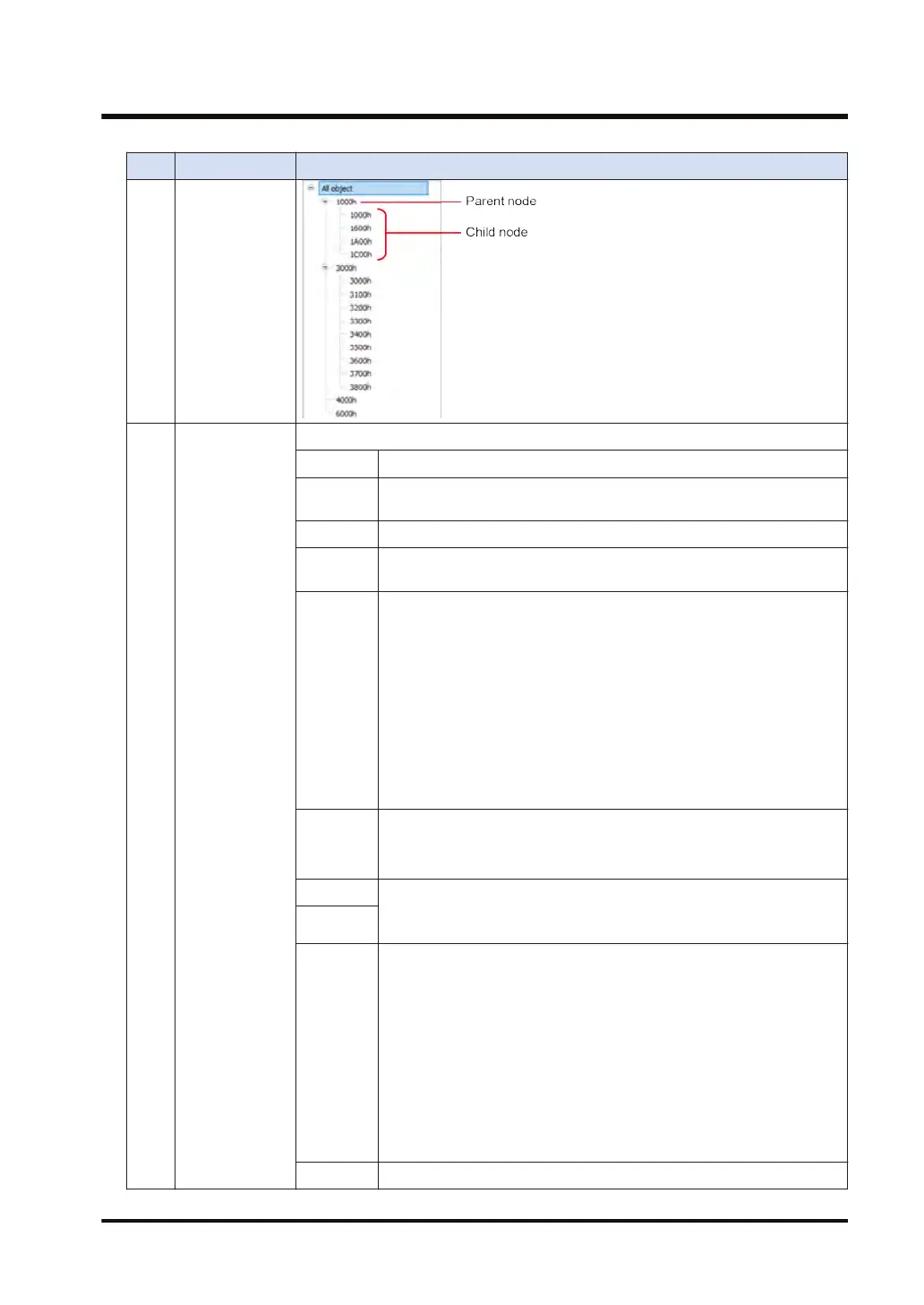

No. Name Function
(4)
Object setting
field
Allows the user to edit and set an object.
Name Function
"Main
Index"
Displays the Main Index of an object.
Sub Index Displays the Sub Index of an object.
Object
Name
Displays the name of an object.
Data Type
Displays the data type of an object.
I8: Integer 8 type
I16: Integer 16 type
I32: Integer 32 type
U8: Unsigned 8 type
U16: Unsigned 16 type
U32: Unsigned 32 type
Bool: Boolean type
OS: Octet String type
VS: V
isible String type
Attributes
Displays the attributes of an object.
RO: Read-only attribute, exclusively for reading.
R
W: Read/write attribute, possible to read or write.
Min Displays the setting range of an object.
The setting range is not displayed for an object whose Data T
ype is
“OS” or “VS”.
Max
Value
Displays the value of an object. The value can be changed if the object
attribute is “RW” and the set value is a numerical value.
Note that there are input restrictions for each Display mode setting. The
following values can be input.
Hex: 0 to 9, A to F (After editing, “"h"” is automatically placed at the end
of the number.)
Dec: 0 to 9 and minus sign “-”
Bin: 0 and 1 (“"b"” is automatically placed at the end of the number.)
After changing the value, press the <ENTER> key or click the [Trans]
button.
To return a value to its original value press the <ESC> key.
Unit Displays the unit of an object set value.
7.5 Object Window
WUME-GM1ETCSU-01 7-15
