Panasonic GM1 Series

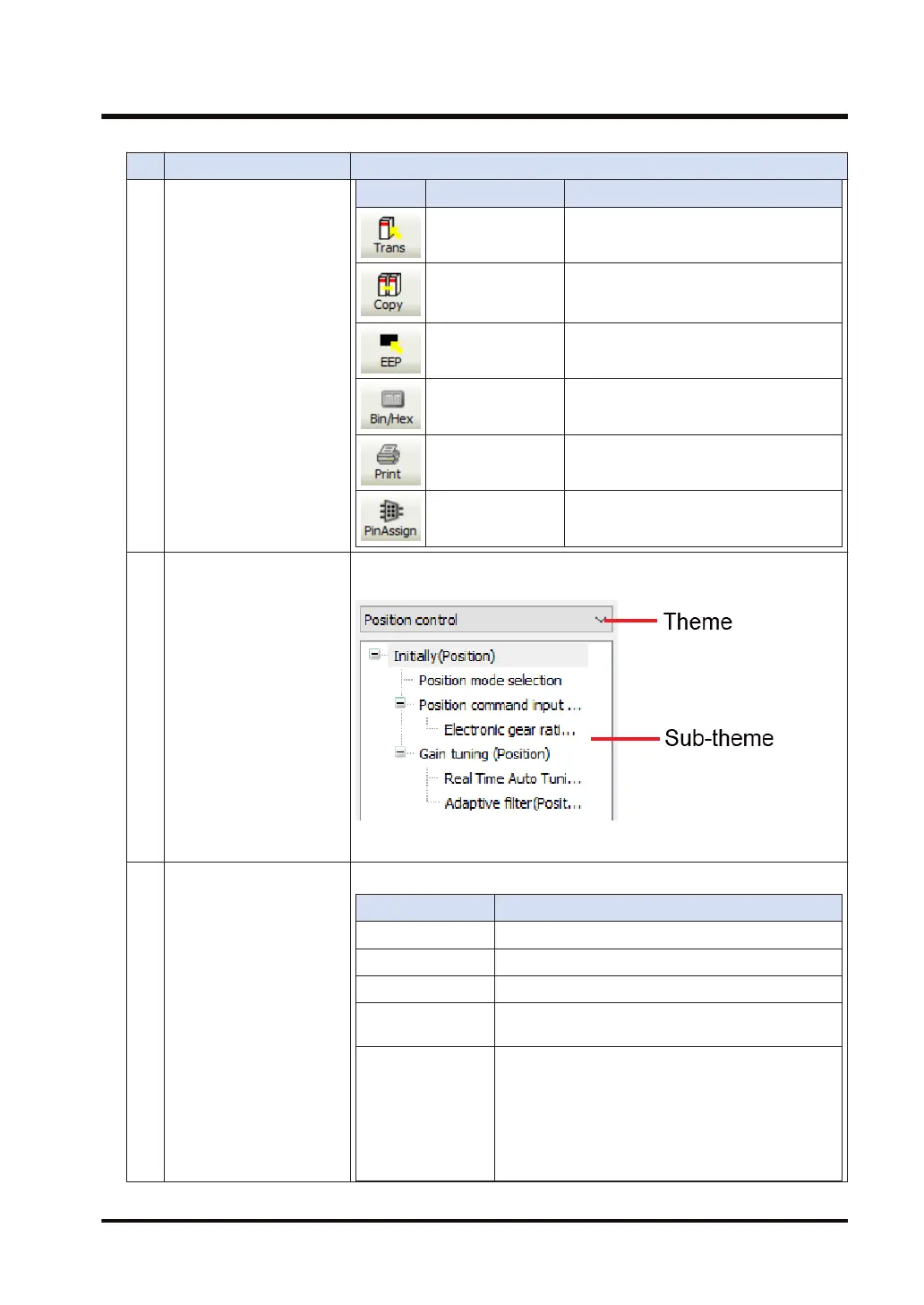

No. Name Function
Icon Name Function
Trans
Transmits parameters to the servo
amplifier
.
Copy
Copies the parameters of a servo
amplifier to servo amplifiers for other
axes.
EEP
Writes parameters to EEPROM of the
servo amplifier
.
Bin / Hex
Inputs the selected settings in binary or
hexadecimal format.
Print Prints parameters.
Pin assignment
setting
Sets I/O pin assignment.
(2) Theme selection pane
After a theme is selected, if a parameter category is selected from a sub-
theme, related parameters will be displayed in the parameter setting area.
For details on each parameter, refer to the instruction manual and other
technical references for the servo amplifier
.
(3) Parameter setting area
Allows the user to set or edit parameters.
Name Function
Class Displays parameter categories
No. Displays parameter numbers
Parameter Name Displays parameter names
Setup Range
Displays the maximum and minimum allowable
values of parameter settings
Value
Displays parameter values. Values can be changed.
For parameters provided with a ▼ button beside the
set value, a desired value can be selected from the
combo box. After selecting a value from the combo
box, press the <Enter> key
. For parameters without
a ▼ button beside the set value, either directly enter
a value using <numerical> keys or click "▲""▼" to
edit the value by increasing or decreasing it. To set a
7.4 Parameter Window
WUME-GM1ETCSU-01 7-9
