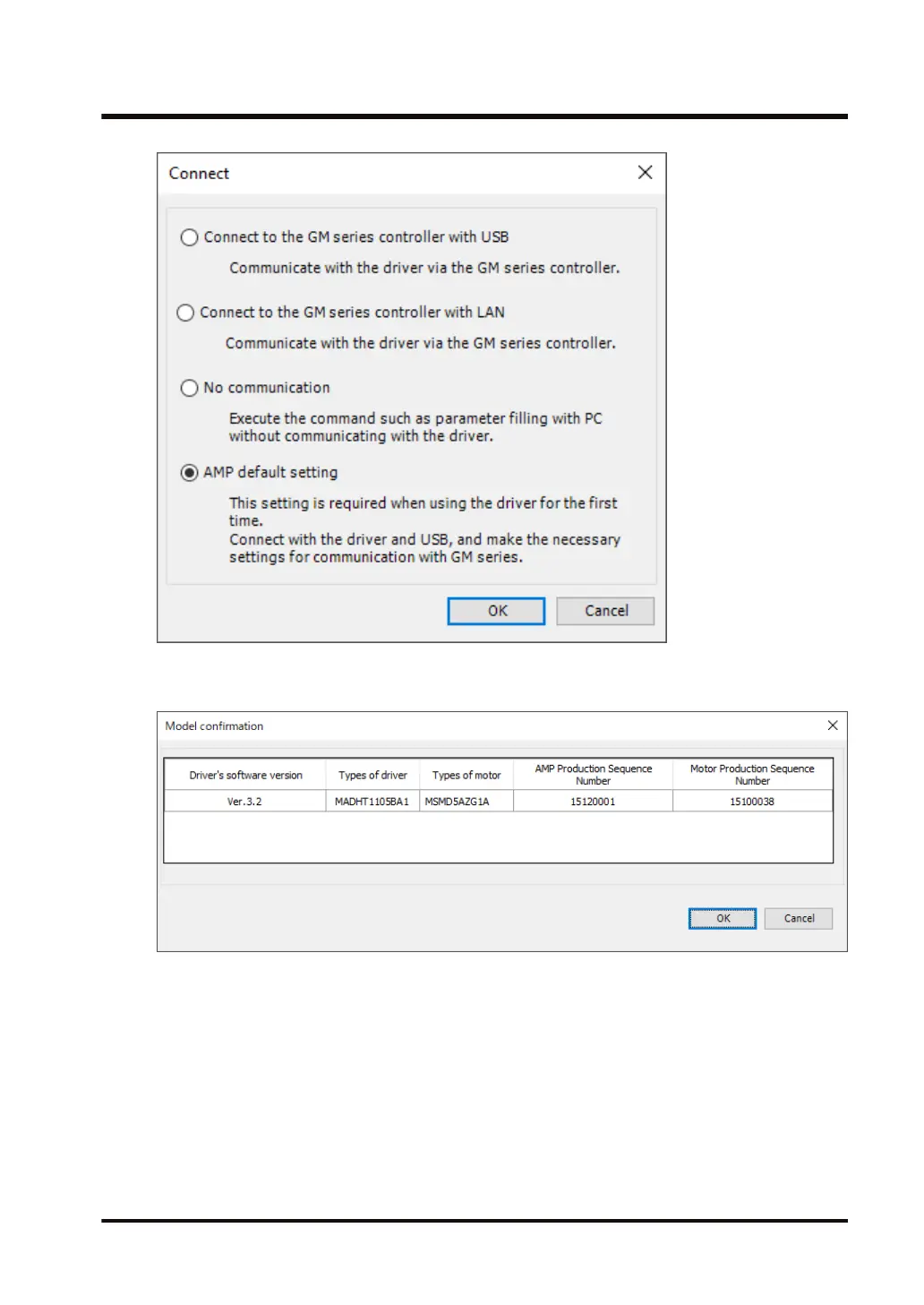

2. Select "AMP default setting

" and click [OK].

The "Model confirmation" dialog box will be displayed.

3. Check the software version of the servo amplifier for which settings are to be changed and

then click [OK].

The "Parameter change

" dialog box will be displayed.

8.1 Initial Setup for Servo Amplifiers

WUME-GM1ETCSU-01 8-3
