54

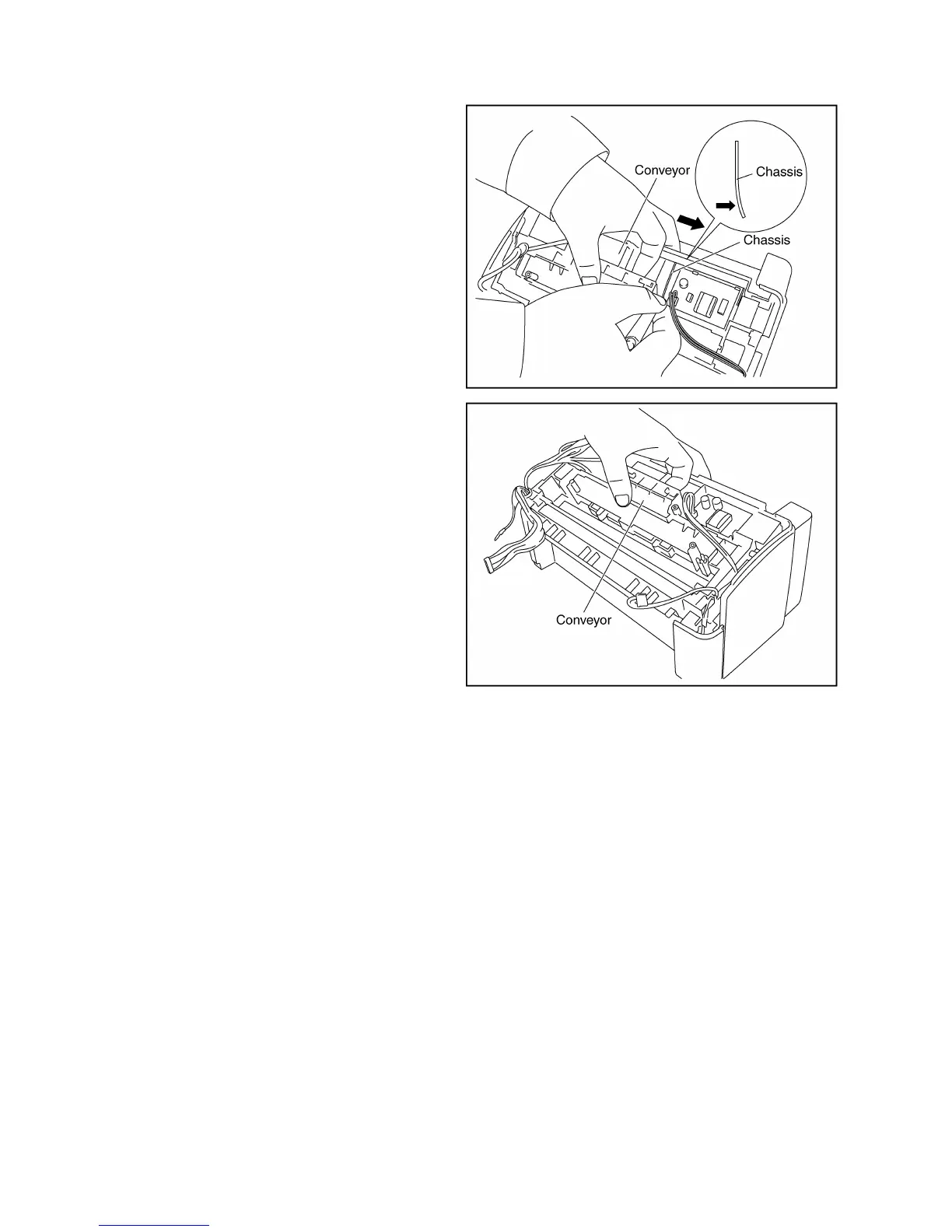

8.3.10. Conveyor
(1) Remove the Lamp (B). (See 8.3.9.)
(2) Release the guide of the Conveyor, distorting the chassis
outside.
(3) Remove the Conveyor.
Note: When disassembling Free Roller
Be sure to remove the Discharged Brush
before removing the rollers. (See 8.2.4.)
