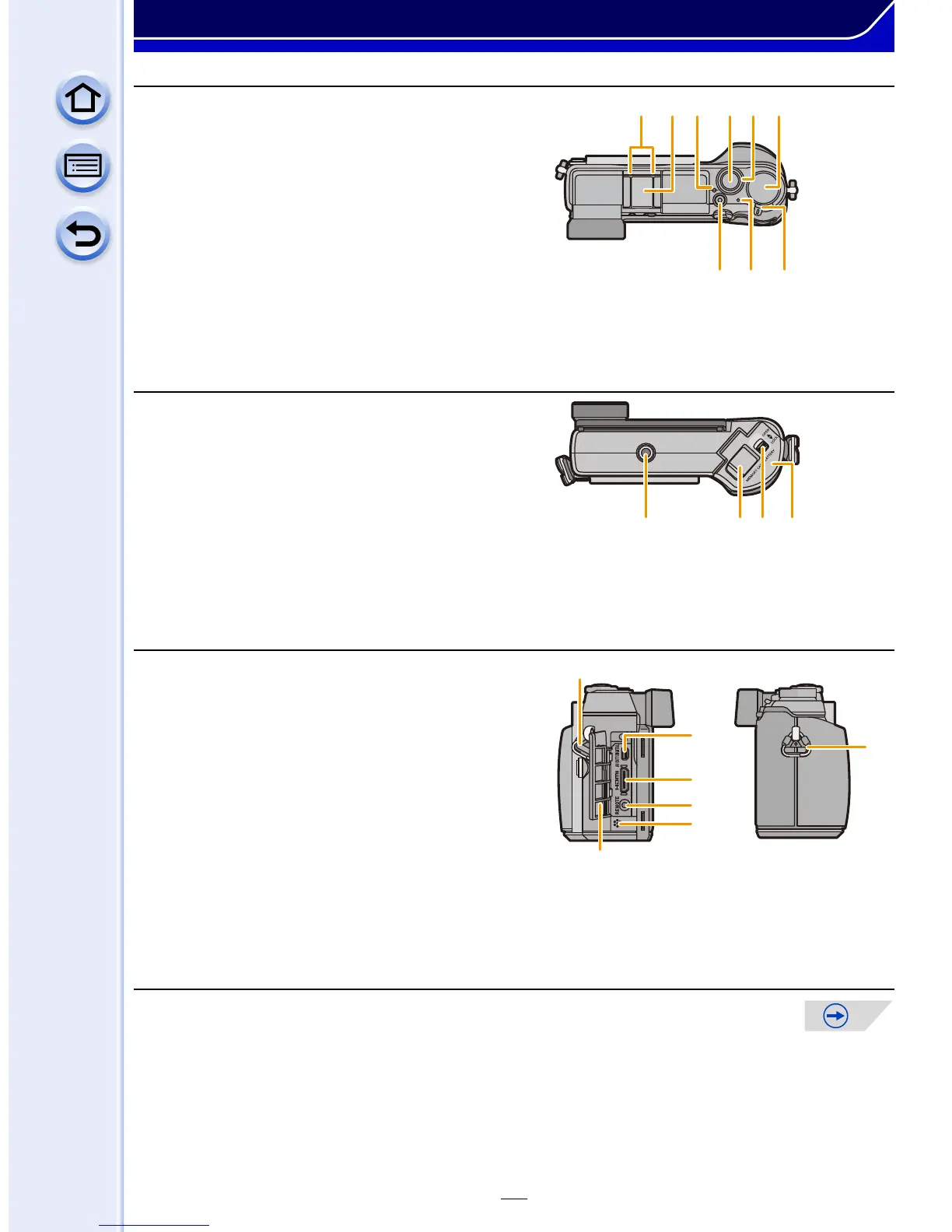

27 Stereo microphone (P237)
•
Be careful not to cover the microphone with
your finger. Doing so may make sound
difficult to record.
28 Hot shoe (Hot shoe cover) (P331)
29 Focus distance reference mark (P163)
30 Shutter button (P65)
31 Front dial (P18)
32 Mode dial (P69)
33 Motion picture button (P231)
34 Status indicator (P38)
35 Camera ON/OFF switch (P38)
36 Tripod mount (P378)
•
A tripod with a screw length of 5.5 mm
(0.22 inch) or more may damage this unit if
attached.
37 DC coupler cover
•
When using an AC adaptor, ensure that the
Panasonic DC coupler (optional) and AC
adaptor (optional) are used. (P333)
38 Release lever (P32)
39 Card/Battery door (P32)
40 Shoulder strap eyelet (P25)
•
Be sure to attach the shoulder strap when
using the camera to ensure that you will not
drop it.
41 [AV OUT/DIGITAL] socket (P316, 323, 325,
326)
42 [HDMI] socket (P315)
43 [REMOTE] socket (P333)
44 Speaker (P53)
•
Be careful not to cover the speaker with your
finger. Doing so may make sound difficult to hear.
45 Terminal cover
•
Open the monitor before opening the terminal cover.
35
3029 31 32
27
33 34
28
36 393738
40
41
42
40
45
43
44
