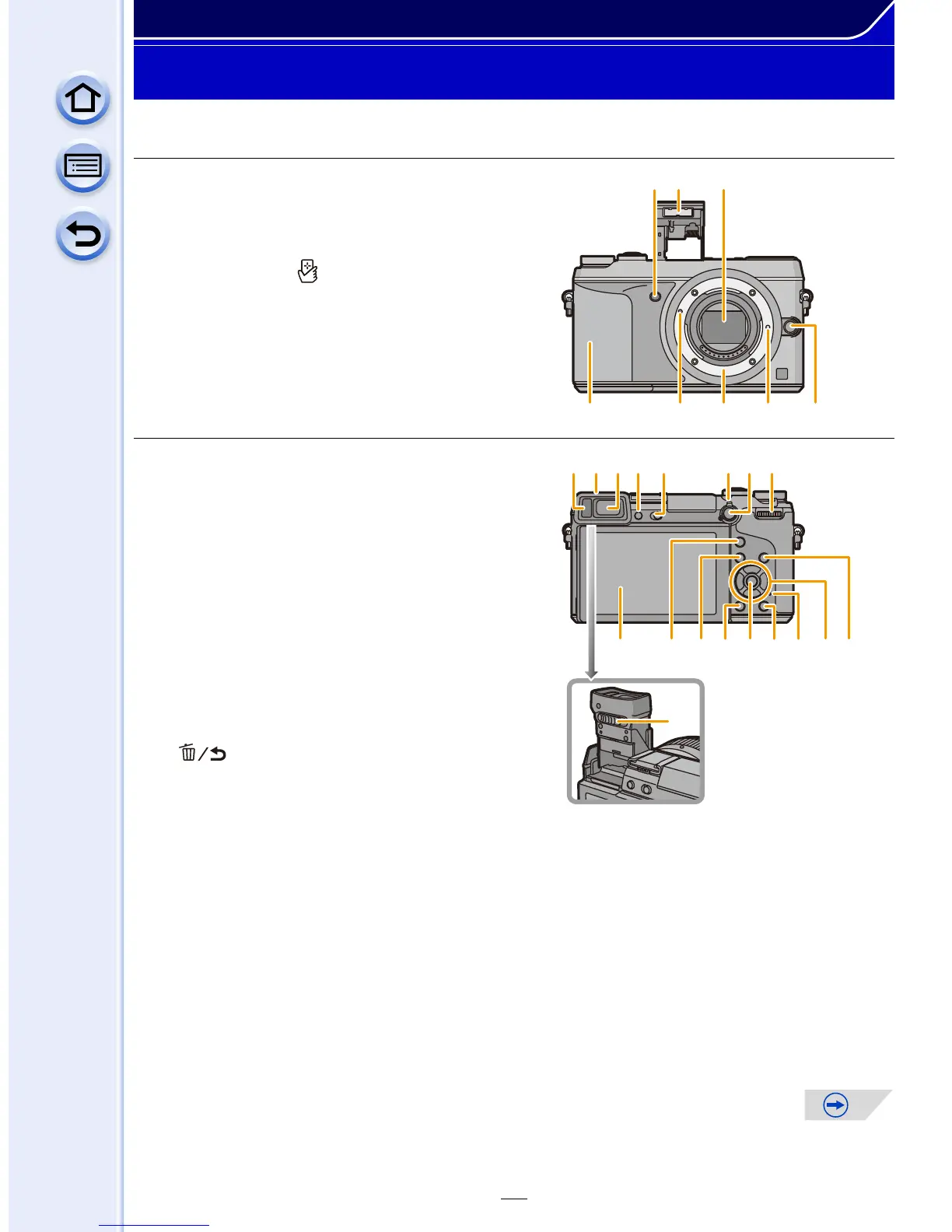

Names and Functions of Components
∫ Camera body
1 Self-timer indicator (P186)/
AF Assist Lamp (P157)
2 Flash (P217)
3 Sensor
4 NFC antenna [ ] (P272)
5 Lens fitting mark (P22)
6 Mount
7 Lens lock pin
8 Lens release button (P23)
9 Eye sensor (P63)
10 Eye Cup (P372)
11 Viewfinder (P63)
12 [LVF] button (P63)/[Fn4] button (P47)
13 Flash open lever (P217)
•
The flash opens, and recording with the flash
becomes possible.
14 Focus mode lever (P146, 158)
15 [AF/AE LOCK] button (P164)
16 Rear dial (P18)
17 Touch screen/monitor (P16)
18 [Q.MENU] button (P43)/[Fn1] button (P47)
19 [(] (Playback) button (P75)
20 [ ] (Delete/Cancel) button (P80)/[Fn2]
button (P47)
21 [MENU/SET] button (P19, 40)
22 [Wi-Fi] button (P266)/[Fn3] button (P47)
23 Wi-Fi
®
connection lamp (P266)
24 Cursor buttons (P19)
3/ISO button (P174)
1/WB (White Balance) (P134)
2/AF Mode button (P146)
4/[Drive Mode] button (P178)
The following settings can be made with the [Drive Mode] button.
Single (P65)/Burst (P179)/Auto bracket (P183)/Self-timer (P186)
25 [DISP.] button (P71, 78)
•
Each time this is pressed, the display on the monitor is switched.
26 Diopter adjustment lever (P63)
