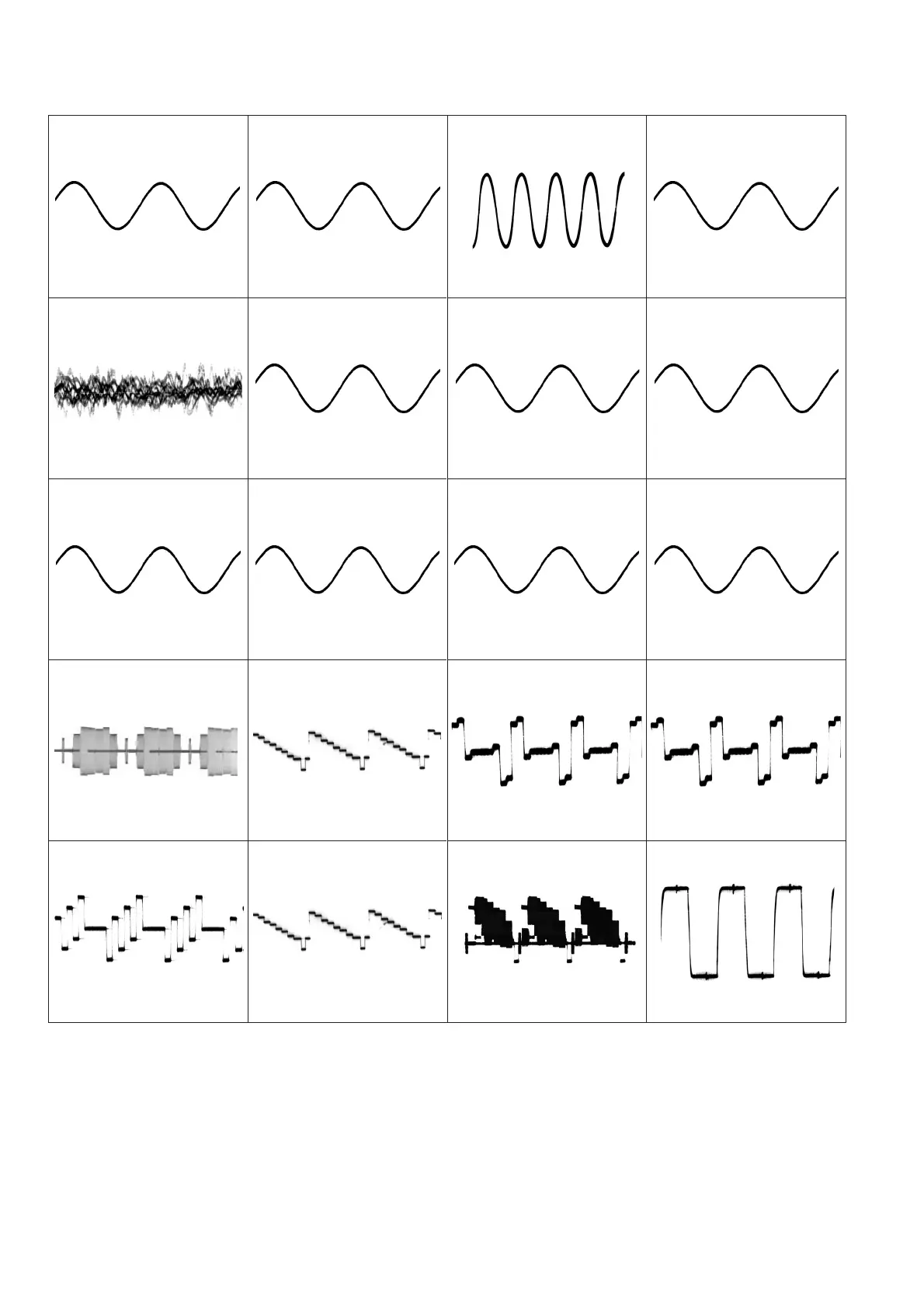

13.14. Waveform Table (1/3)
WF No. IC2103-1 (PLAY)
0.44Vp-p(200usec/div)
WF No. IC2803-5 (PLAY)
0.26Vp-p(200usec/div)
WF No. IC2803-16,18 (PLAY)
1.9Vp-p(500usec/div)
WF No. IC2900-4 (PLAY)
1Vp-p(20usec/div)
WF No. IC2803-35,36 (PLAY)
0.76Vp-p(500usec/div)
WF No. IC2803-43,44 (PLAY)
0.08Vp-p(500usec/div)
WF No. IC2803-52,54 (PLAY)
0.2Vp-p(500usec/div)
WF No. IC2803-3,4 (PLAY)
0.4Vp-p(100usec/div)
WF No. IC2803-6 (PLAY)
1.5Vp-p(500usec/div)
WF No. IC2803-9,10 (PLAY)
2Vp-p(500usec/div)
WF No. IC2103-7 (PLAY)
1.9Vp-p(500usec/div)
WF No. IC2801-13 (PLAY)
5Vp-p(50nsec/div)
WF No. IC2801-15 (PLAY)
3.2Vp-p(20nsec/div)
WF No. IC2900-21 (PLAY)
1.5Vp-p(20usec/div)
WF No. IC2900-8,11 (PLAY)
1.1Vp-p(20usec/div)
WF No. IC2900-15 (PLAY)
0.76Vp-p(20usec/div)
WF No. IC2900-18 (PLAY)
1.5Vp-p(20usec/div)
WF No. IC2900-24 (PLAY)
2Vp-p(20usec/div)
WF No. IC2900-30 (PLAY)
2.4Vp-p(20usec/div)
WF No. IC5000-1 (PLAY)
5.6Vp-p(1usec/div)
