Panasonic SA-VK480EE - Disassembly of Main P.C.B.; Disassembly of SMPS P.C.B.

74
Caution: Ensure pins of the Audio Digital Power Amp IC
(IC5000) are properly seated and soldered on D-Amp
P.C .B ..
9.21. Disassembly of Main P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 7) of Item 9.4
• Follow the (Step 1) to (Step 7) of Item 9.7
• Follow the (Step 1) to (Step 5) of Item 9.19

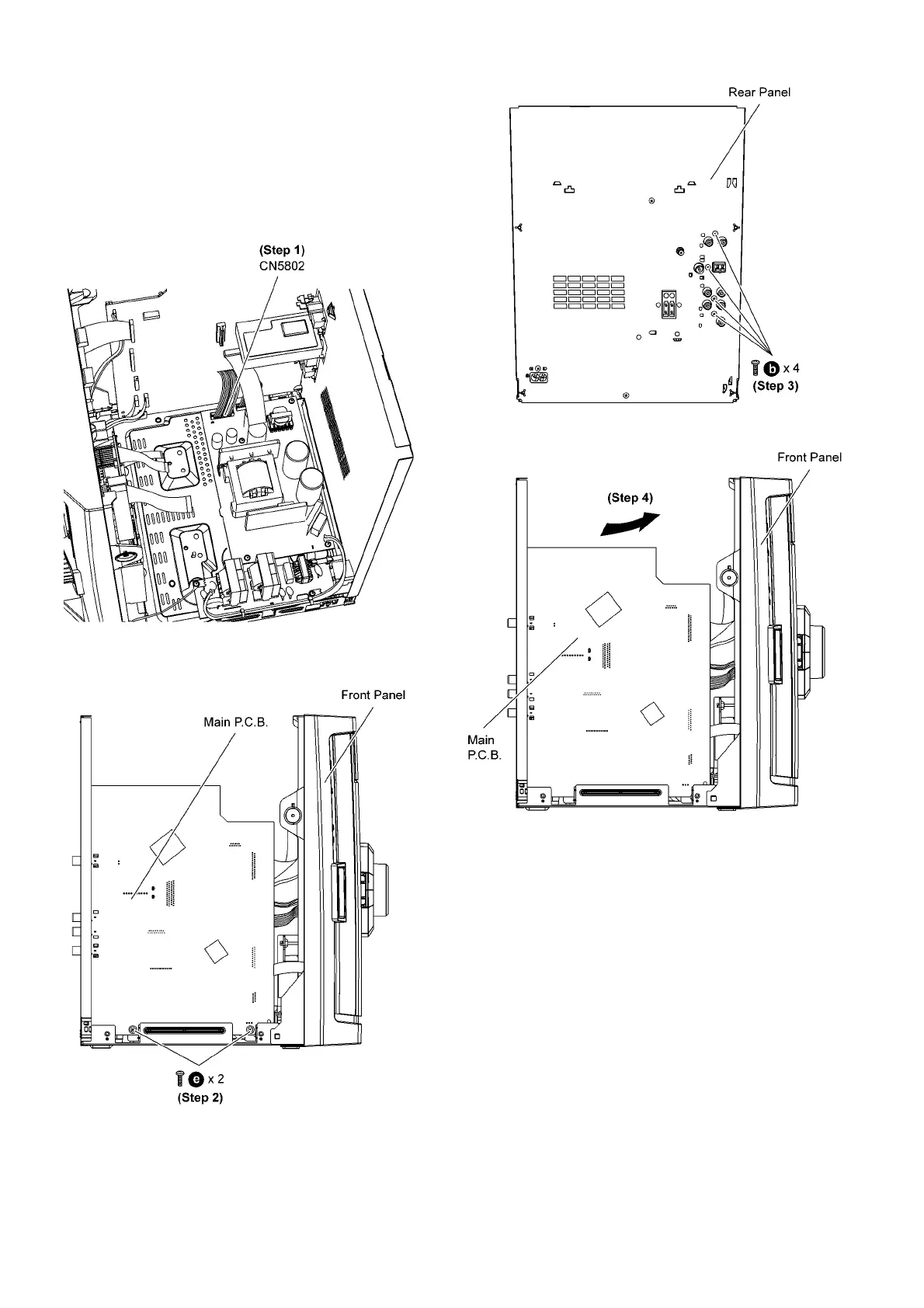

Step 1 Detach 11P cable at connector (CN5802) on SMPS
P.C .B ..
Step 2 Remove 2 screws on Main P.C.B..
Step 3 Remove 4 screws at rear panel.
Step 4 Remove Main P.C.B. according to the arrow shown.
9.22. Disassembly of SMPS P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 7) of Item 9.4
• Follow the (Step 1) to (Step 5) of Item 9.19
