Panasonic SA-VK480EE - Service Positions; Checking and Repairing of Main P.C.B.; Checking and Repairing Panel P.C.B., Deck P.C.B., Volume P.C.B., Music Port P.C.B. and Mic P.C.B.

84
11 Service Positions
Note: For description of the disassembly procedures, see
the Section 9.
11.1. Checking and Repairing of
Main P.C.B.

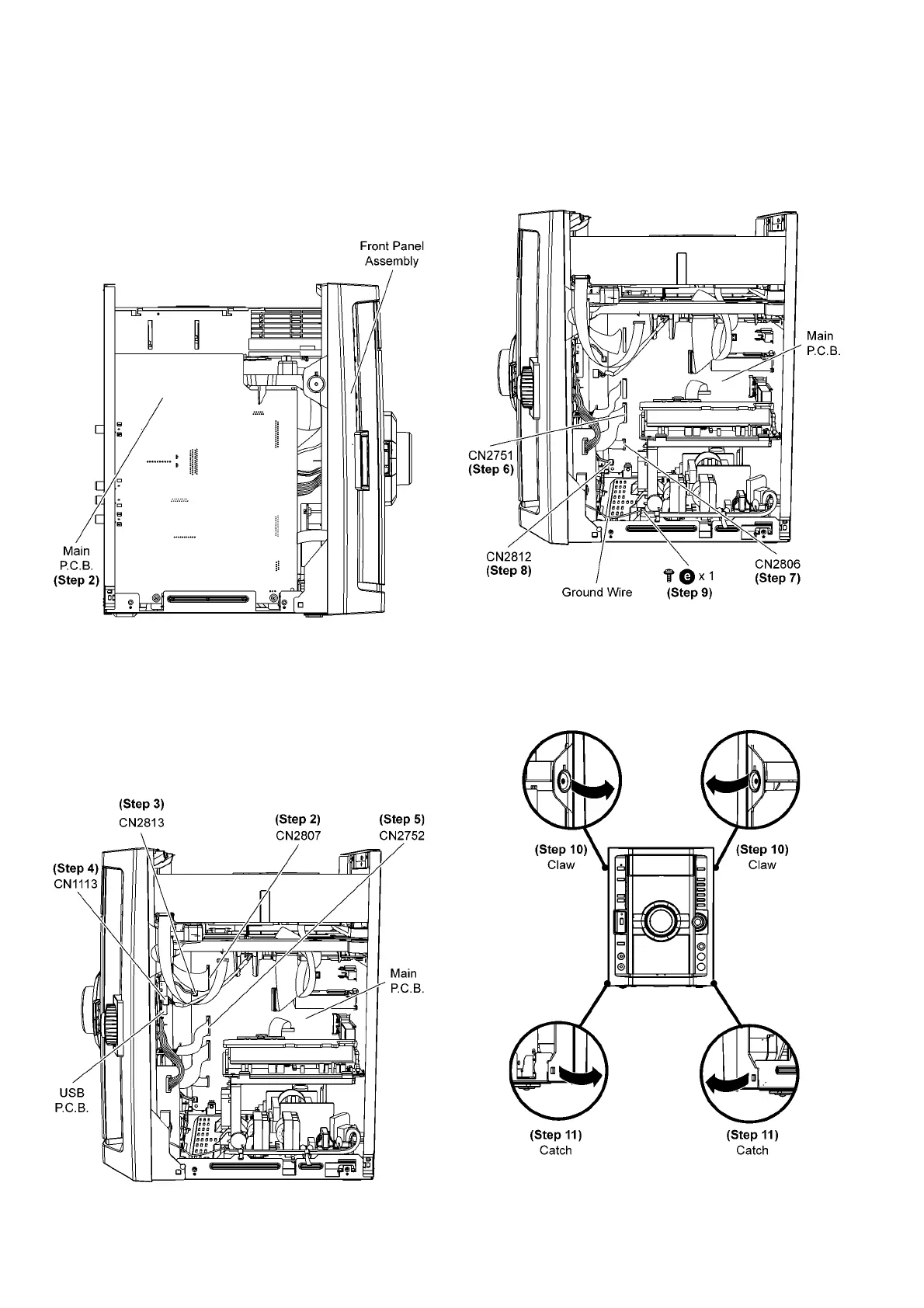

Step 1 Remove the top cabinet .
Step 2 Main P.C.B. can be checked at its original position.
11.2. Checking and Repairing Panel
P.C.B., Deck P.C.B., Volume
P.C.B., Music Port P.C.B. and
Mic P.C.B.
Step 1 Remove the top cabinet.
Step 2 Detach 27P FFC at the connector (CN2807) on Main
P.C .B ..
Step 3 Detach 2P cable at the connector (CN2813) on Main
P.C .B ..
Step 4 Detach 5P cable at the connector (CN1113) on USB
P.C .B ..
Step 5 Detach 10P FFC at the connector (CN2752) on Main
P.C .B ..
Step 6 Detach 12P FFC at the connector (CN2751) on Main
P.C .B ..
Step 7 Detach 10P FFC at the connector (CN2806) on Main
P.C .B ..
Step 8 Detach 2P cable at connector (CN2812) on Main P.C.B..
Step 9 Remove 1 screw to remove ground wire.
Step 10 Release the claws outwards on both sides.
Step 11 Release the catches at both sides.
