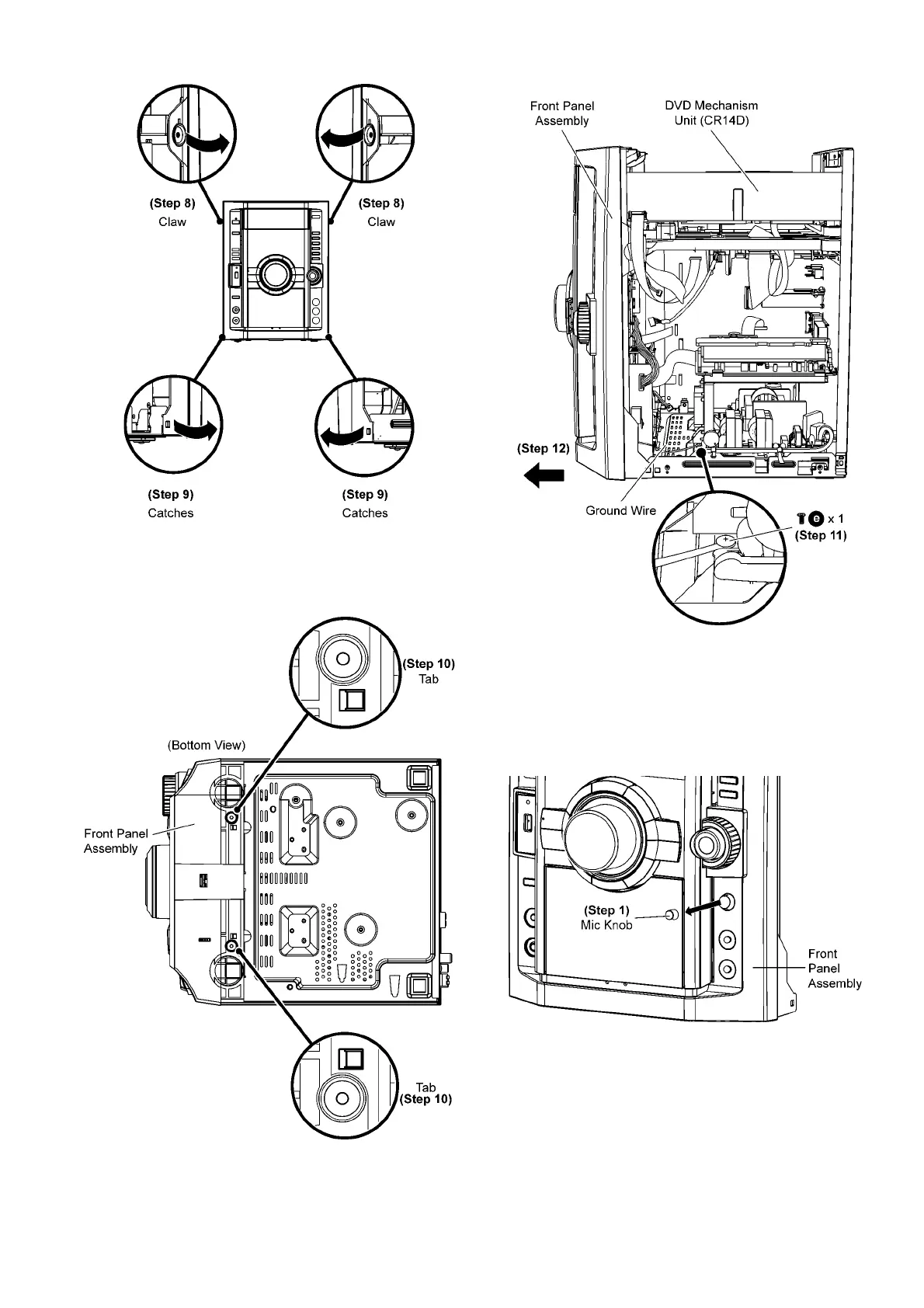

Step 8 Release the claws on both sides.
Step 9 Release catches at both side.
Caution: During assembling, ensure that both claws and
catches are fully catched.
Step 10 Release the tabs at the bottom.
Caution: Do not exert strong force when releasing the tabs.
Step 11 Remove 1 screw to remove ground wire.
Step 12 Remove front panel assembly in the direction of arrow.
9.8. Disassembly of Mic P.C.B.
• Follow the (Step 1) to (Step 5) of Item 9.3
• Follow the (Step 1) to (Step 12) of Item 9.7
Step 1 Remove Mic knob.
To Next Page
